38 – English
Repair instructions

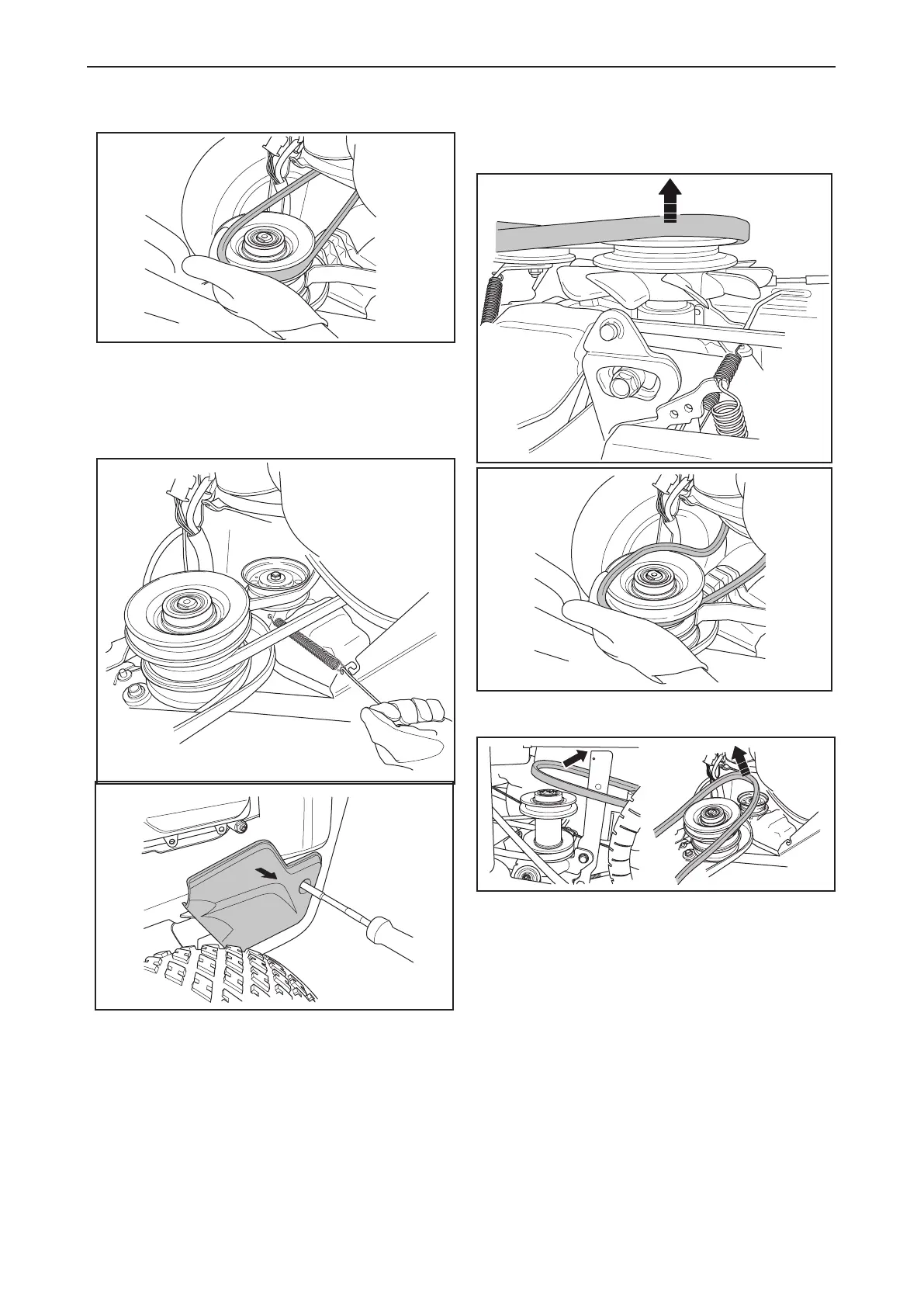

4 Lift o belt 1.
5 Remove the spring for the belt tensioner for belt 2
(transmission belt).
6 Remove the cover on the left hand side of the
rear carriage.
7 Pull o belt 2 from the transmission, rst from the
rear belt pulley and then from the front.
8 Pull o belt 3 at the front, lift it over the lever arm
of the cutting unit, then lift it o at the rear.
Fit the belt in the reverse order.
