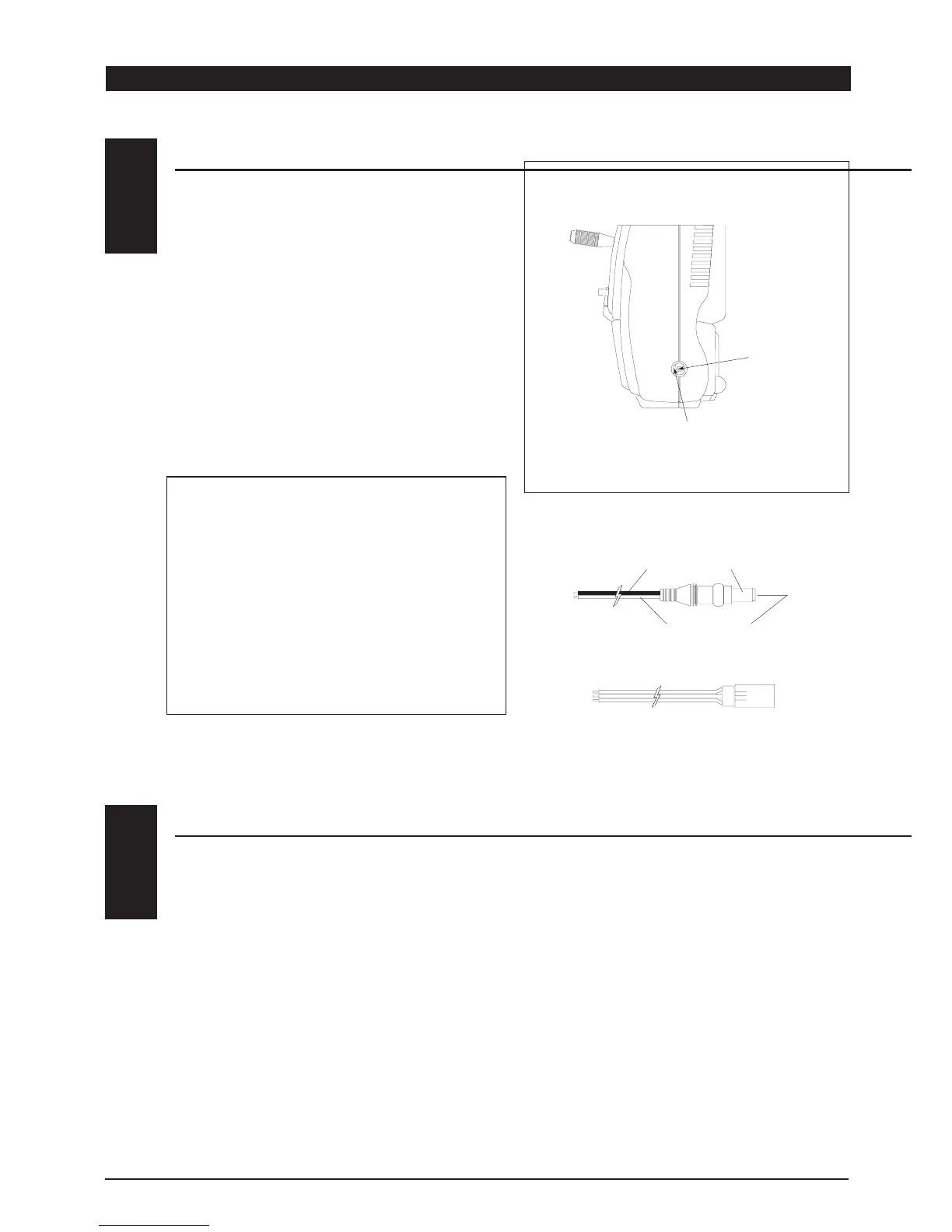

SX600 MANUAL • INTRODUCTION 4: Battery Charging
INTRODUCTION 4: BATTERY CHARGING
The pilot lamps should always be on during the
charging operation. If they are not, make sure
you have turned off both the transmitter and
receiver.
Do not use the charger for equipment other
than JR. The charging plug polarity may not be
the same, and equipment damage may result.
Do not use other manufacturers’ after-market
accessories that plug into the transmitter’s
charging jack. If you do, any damage that
results will not be covered by warranty. If you
are unsure of compatibilities with your radio,
seek expert advice before doing anything to
avoid possible damage.
During the charging operation, the charger’s
temperature is slightly elevated. This is normal.
CHARGER
4.2
It is imperative that you fully charge both the
transmitter and the receiver battery packs prior
to each day of flying. For the initial charge,
leave the charger and batteries hooked up
for 20-24 hours in order to fully charge both
battery packs to peak capacity. For subsequent
charges, leave the charger and batteries hooked
up overnight (approximately
16 hours).
The charger supplied with this system is
designed to recharge your transmitter battery
at a rate of 50mA. The receiver battery pack will
charge at 50mA for the 700mAh battery pack.
TRANSMITTER / RECEIVER
4.1
Transmitter Only
The center pin on all JR remote control systems
is negative. Therefore, the center pin on all JR
chargers is negative, not positive. This is different
from any other manufacturers’ chargers and radio
systems. Beware of improper connections based
on “color code” wire leads as they do not apply
in this instance. You must make certain that
the center pin of your JR transmitter is always
connected to the negative voltage for correct
polarity hookup.
RED–POSITIVE / BROWN–NEGATIVE
ORANGE–SIGNAL
BLACK WIRE WITH WHITE LINE
TO NEGATIVE
BLACK TO POSITIVE
CHARGER PIGTAIL FOR RECEIVER
CHARGER PIGTAIL FOR TRANSMITTER
CENTER
PIN IS
NEGATIVE
RIGHT SIDE OF TRANSMITTER
OUTSIDE IS POSITIVE
