2-7
3. Fix the clamp filter (large) to the installation pole by using a bundling band (long). Fasten
both ends of the large clamp filter. Fix it as closer to the antenna as possible.
If it is impossible to fix to the pole, make holes in the mounting plate for bundling bands to go
through, and fix the clamp filter to the mounting plate.
4. Cramp at the preferable position so that the cable weight itself will not be applied to the
connector. If some slack is provided for the cable, beware of the influence from wind or sea
wave. Arrange the cable so that it will not be hooked by a crane or fishing equipment.

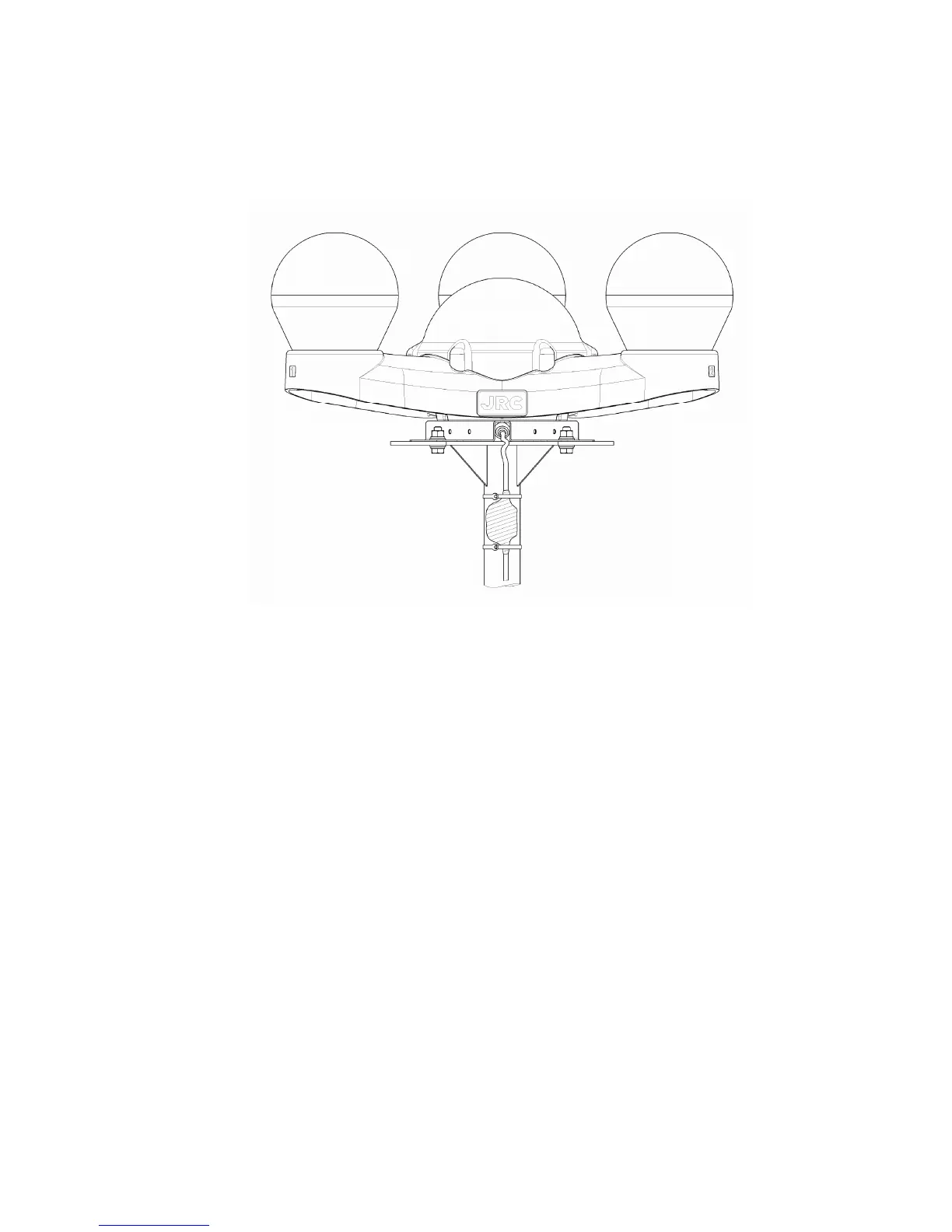

Installation figure
To Next Page
