JRC JLR-30 User Manual

2-19

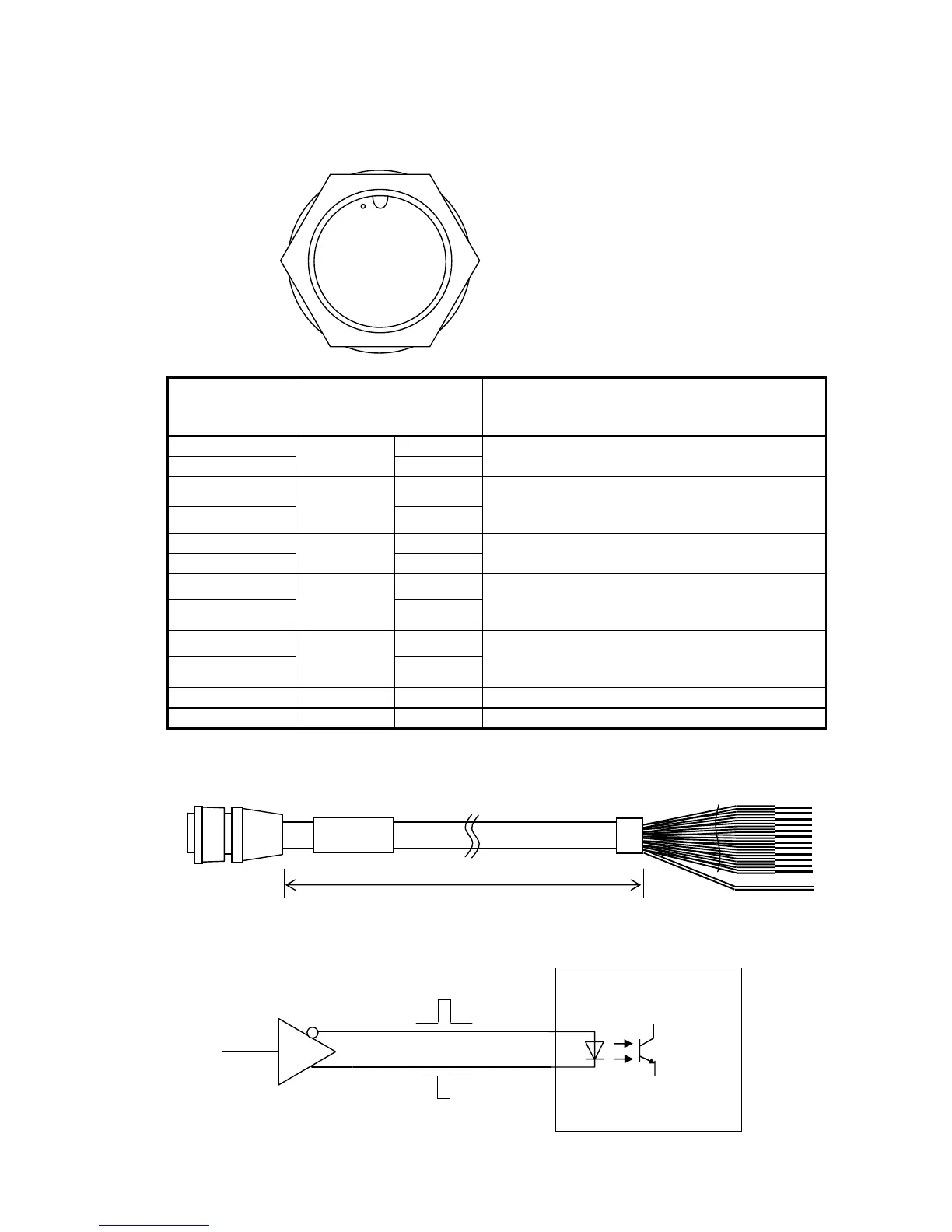

[Data IN/OUT 2 Connector]
DATA IN/OUT 2
Data Cable: CFQ-5374 (option)
Terminal
Number
(CFQ-5374)
Name Explanation
1 (Brown) A
2 (Red)
RXD4
B
Receives the tide current data (Data IN4).
(Refer to "5.3.7 Data I/O Settings (DATA I/O)")
3 (Orange) A
4 (Yellow)
TXD1
B
Outputs as defined by "Data OUT 1"
configuration.
(Refer to "5.3.7 Data I/O Settings (DATA I/O)")
5 (Green) A
6 (Blue)
SCK1
B
Outputs clock when AD-10 configuration is
performed for "Data OUT 1".
7 (Purple) A
8 (Grey)
TXD5
B
Outputs as defined by "Data OUT 5"
configuration.
(Refer to "5.3.7 Data I/O Settings (DATA I/O)")
9 (White) A
10 (Black)
TXD4B (*1)
B
Outputs as defined by "Data OUT 4"
configuration.
(Refer to "5.3.7 Data I/O Settings (DATA I/O)")
11 (Pink) GND ISO Connects serial transmission cable ground.
12 (Light Blue) GND Chassis ground
*1 : Outputs parallel to the SENSOR connector 11 and 12 pins.
Appearance of Connection Cable
① ⑧
② ⑨ ⑦
⑪ ⑫
③ ⑩ ⑥
④ ⑤
CFQ-5374
3m
A
B
External Device
