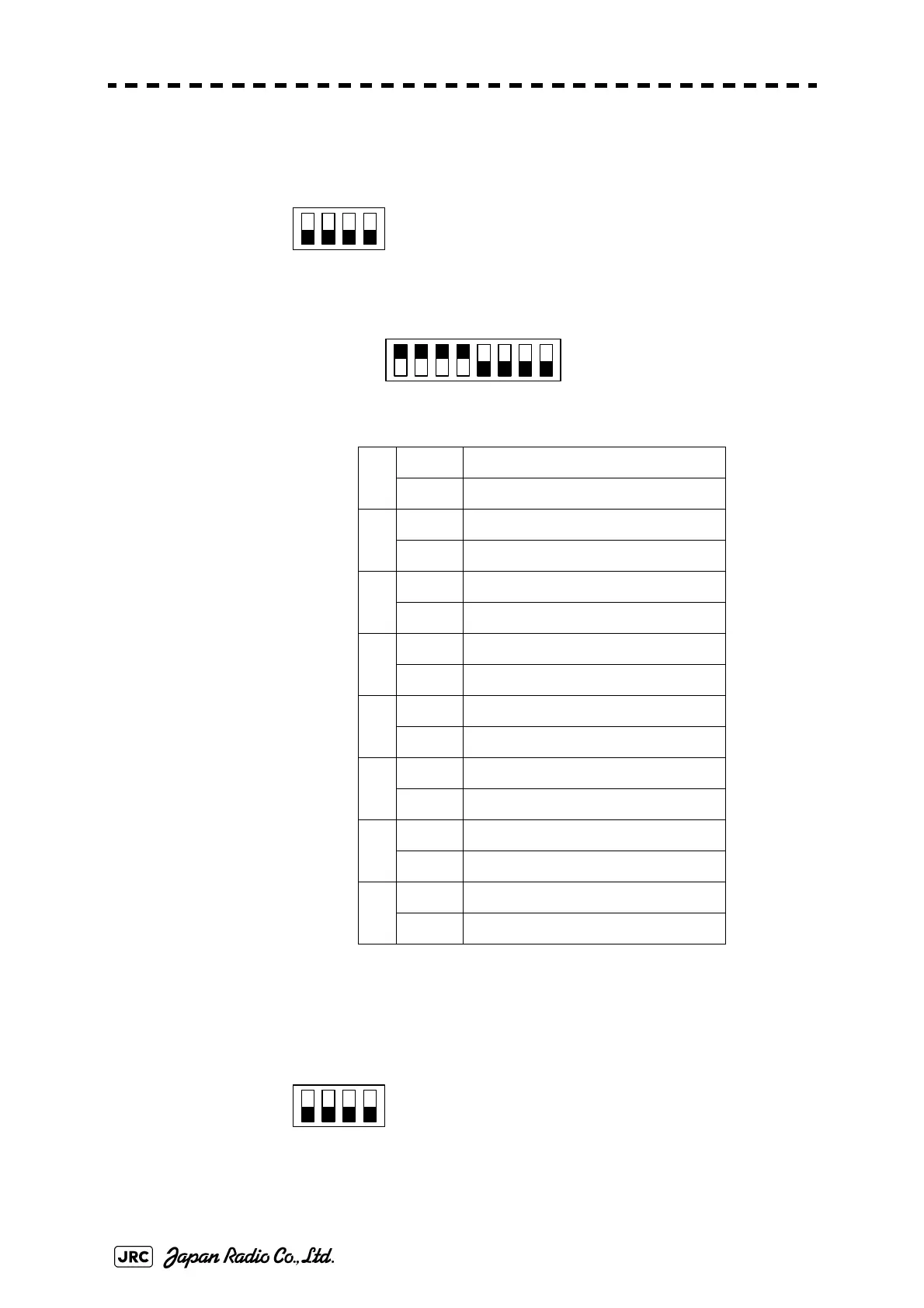

5－8
JMA-9100/7100 Installation Manual > 5.OPTION UNIT > 5.1 INSTALLATION OF INTERSWITCH UNIT
1)
SW11 setting (expansion mode, master/slave setting)
Set all OFF.
2)
SW12 setting (radar connection setting)
Radar Connection Setting
3)
SW13 (unused)
Set all OFF.
1ON
No. 1 display unit connected
OFF
No. 1 display unit NOT connected
2ON
No. 1 antenna connected
OFF
No. 1 antenna NOT connected
3ON
No. 2 display unit connected
OFF
No. 2 display unit NOT connected
4ON
No. 2 antenna connected
OFF
No. 2 antenna NOT connected
5ON
No. 3 display unit connected
OFF
No. 3 display unit NOT connected
6ON
No. 3 antenna connected
OFF
No. 3 antenna NOT connected
7ON
No. 4 display unit connected
OFF
No. 4 display unit NOT connected
8ON
No. 4 antenna connected
OFF
No. 4 antenna NOT connected
1 234
ON
OFF
1 234
ON
OFF
5768
1 234
ON
OFF
To Next Page
