5-45
5.4.6
Setting of the
Antenna Height
Sets the radar antenn
a height above sea level, but do not change this setting
casually
.
1)
Measure the height from the sea level to the radar antenna in a
dvance.
2)
Open the Serviceman Menu.
3)

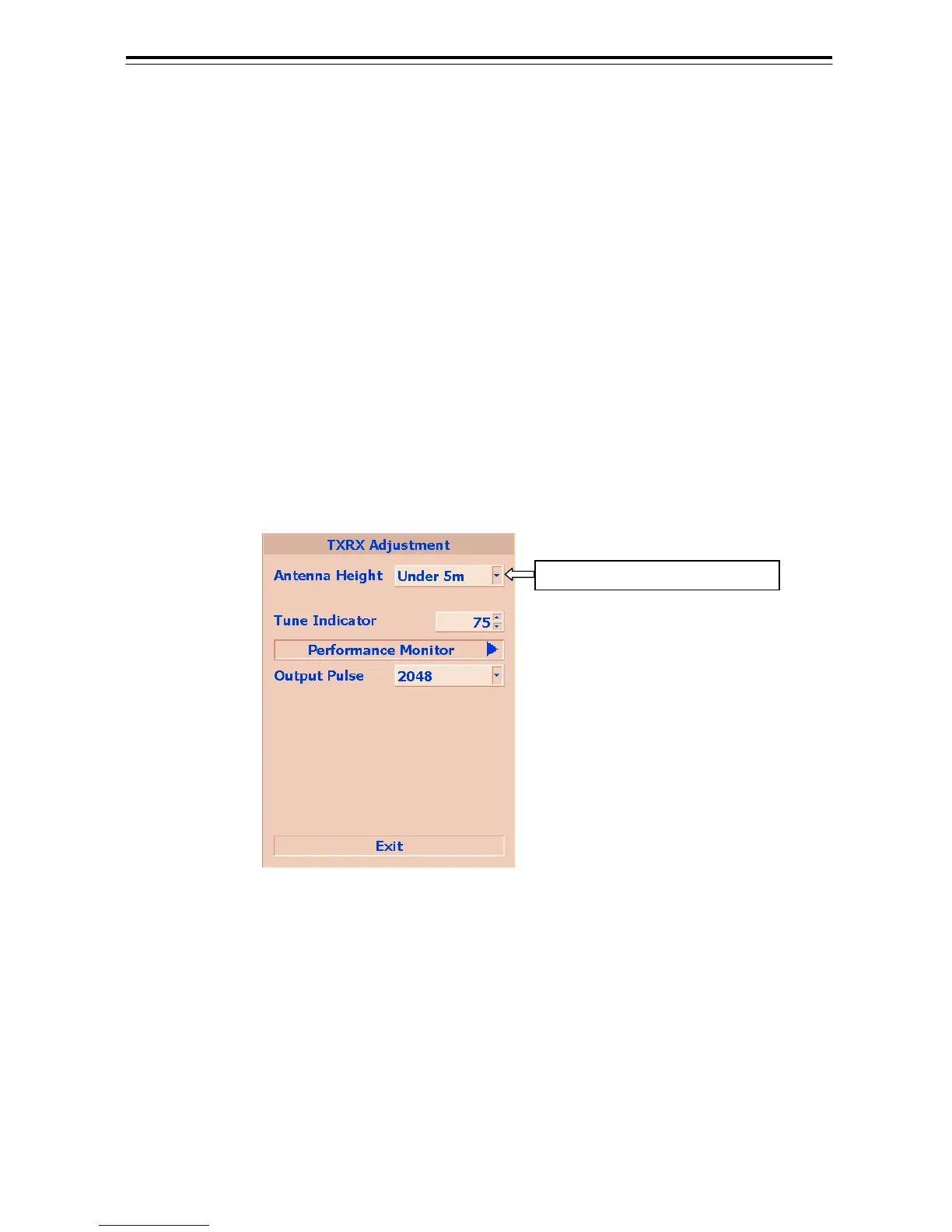

Left-click the
Adjust Menu > TXRX
Adjustment.
The TXRX
Adjustment menu will appear
.
4)
Select the antenna height measured in pr
o
cedure 1) from the pull-down menu.
5)
Left-click the Exit button.
A
djust setting to measured antenna height.
127
129
Table of Contents
Default Chapter
7
Table of Contents
7
1 Configuration
9
Components
9
JMA-900B Series
9
List of Circuits
11
JMA-900B Series Scanner Unit, Tranceiver Unit
11
System Diagram
16
System Configuration
22
2 Installation of Scanner Unit
26
Equipment Cable
26
H-2695111153*
27
Cable End Processing Method
28
Connection to Terminals
29
Installation of Scanner Unit
30
NKE-1125 Type Scanner
30
NKE-1129 Type Scanner
32
NKE-1130 Type Scanner
34
NKE-1139 Type Scanner
36
Installation of Tranceiver Unit
38
NTG-3225 Type Tranceiver
38
NTG-3230 Type Tranceiver
40
Precautions
42
Insatallation of Scanner Unit
42
Routing Coaxial Cable and Flexible Waveguide
47
Scanner Installation Position
49
Confirmation During Test Run
54
3 Installation of Display Unit
55
Installing Power Cable
60
Input Voltage Specification
60
Connecting Power Cable
60
Connections with Scanner and Transceiver
62
Connection with GPS
63
Connection with Vessel Speed Unit (2-AXIS LOG)
64
Connections with GYRO and Electormagnetic LOG
65
Connection with GYRO (IEC61162-1/2)
67
Connection with AIS
69
Connection with ECDIS
70
Connect with Alarm Monitoring System
71
Installation of Cable Ground
72
4 Initial Setting
73
Confirming Power Supply
73
Connecting to CQD-2121 Standard Terminal Board
74
Setting Equipment Configuration
76
Setting Ethernet Rotary Switch
76
Connecting to CQD-2128 Radar Terminal Board
78
Setting of GYRO I/F
80
Setting of STEP･SYNC
80
5 Setting
84
Port Setting
84
Display the Device Menu
84
Display the Configulation Set Menu
85
The Configuration Setting
86
5.1.3.1 Select the Equipment and the Connect-Acknowledge
86
5.1.3.2 Configuration Setting
89
5.1.3.3 Sensor Setting
98
5.1.3.4 Alarm Relay Setting
105
5.1.3.5 Update of Application Software
109
5.1.3.6 Update of SRB/ROL Software
114
Setting of the Sensor
117
Setting of the Ships Paramater
120
Setting of the Installation Location
121
Setting of the RADAR Application
122
Setting of the Navigation Equipment
123
Tune Adjustment
124
Tune Indicator Adjustment
125
Bearing Adjustment
126
Range Adjustment
127
Setting of the Antenna Height
128
Setting of the Main Bang Suppression
129
Adjustmant the Performance Monitor
130
Setting of the Equipment ID
131
Setting of Alarm
132
Setting of Output Cycle of Watchman Timer Reset Contact Signal
132
Setting of Alarm Volume
132
Output Setting of Relay Contact Signal
133
Output Setting of ALR Sentence
133
Setting of Outside ACK Receive
134
Backup of Data
135
6 Option Unit
136
Installation of Interswitch Unit
136
Equipment Cable End Processing
136
Connection of Equipment Cable
136
Plug Terminal Block Connecteion Procedures
137
Installation of Interswitch Unit
138
Setting
142
Confirmation after Installation
146
Inter-Board Connection Diagram
146
INSTALLATION of POWER CONTROL UNIT
148
Connection with NKE-1125,NTG-3225,NKE-1130,NTG-3230
148
Equipment Cable End Processing
149
End Processing of each Cable Core
149
Connection to Display Unit
149
General System Diagram of Power Contorl Unit
150
Inter-Board Connection Diagram of Power Control Unit
162
Exterior Drawing of Power Control Unit
166
INSTALLATION of VDR
168
Connetions
168
Other manuals for JRC JMA-922B-9XA
User Manual
486 pages
