JRC JMA-922B-9XA - 2 Installation of Scanner Unit; Equipment Cable

2-18
2. Installation of Scanner Unit
2.1 Equipment Cable
2.1.1 H-2695110056*
This is a 14-core shielded composite calbe.
Theis cable is used to connect an NKE-1125 type scanner or an NKE-1130 type
scanner, and an NTG-3225 type transmitter-receiver or an NTG-3230 type
transmitter-receiver to the display unit.

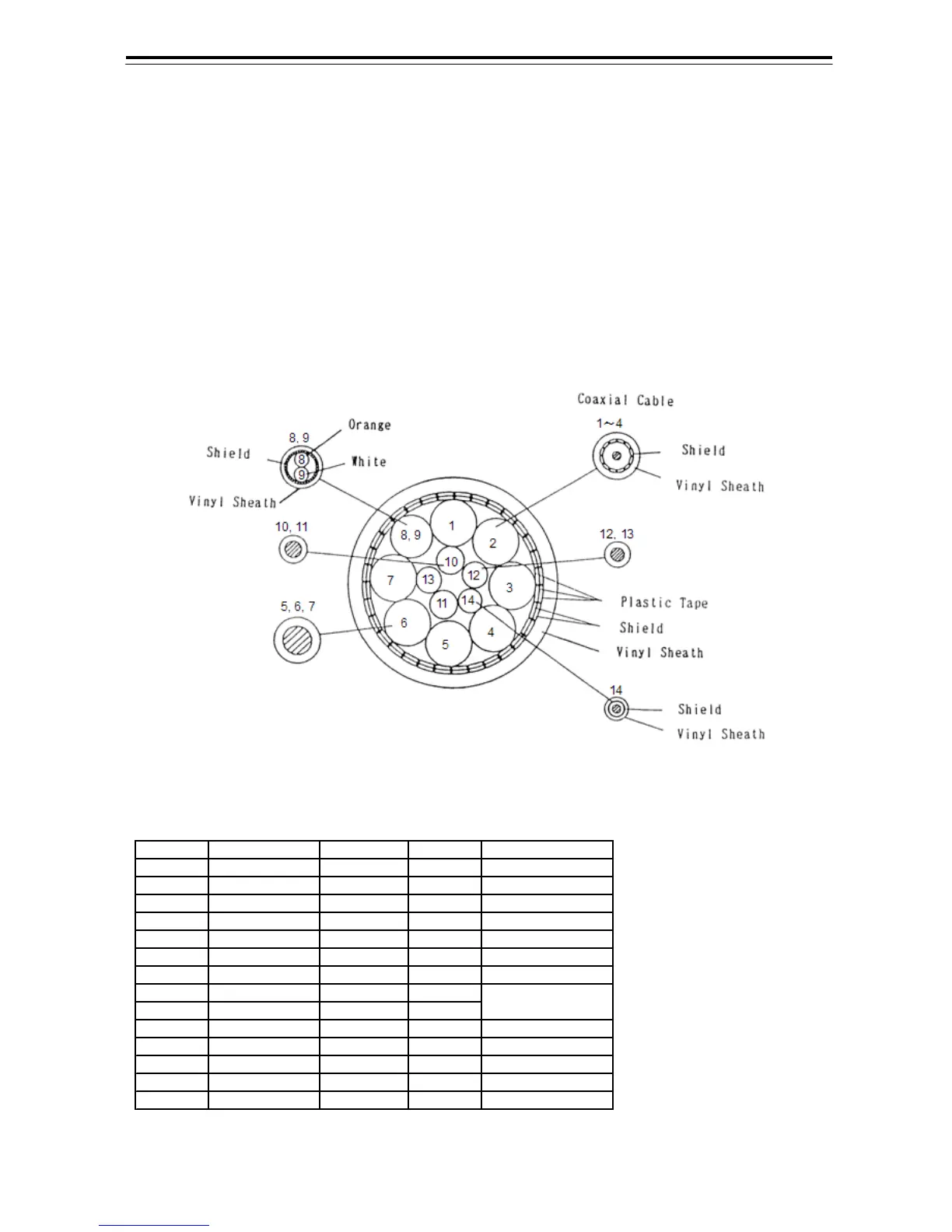

Fig 2-1 Cross-sectional drawing of H-2695110056*
Table 2-1 H-2695110056* wire
Core (No.)
Cross Section (m
2
)
No. of wire / φ Color Remarks
1 0.5 19 / 0.18 Black 1 Coaxial Cable
2 0.5 19 / 0.18 Black 2 Coaxial Cable
3 0.5 19 / 0.18 Black 3 Coaxial Cable
4 0.5 19 / 0.18 Black 4 Coaxial Cable
5 5.5 35 / 0.45 Yellow
6 5.5 35 / 0.45 Green
7 5.5 35 / 0.45 Brown
8 0.3 12 / 0.18 White
9 0.3 12 / 0.18 Orange
10 2 37 / 0.26 Red
11 2 37 / 0.26 Blue
12 1.25 50 / 0.18 Black
13 1.25 50 / 0.18 Purple
14 0.5 1 / 0.18 Gray Shield wire
Twisted pair cable
with Shield sheath
i
Maximum diameter 23.0mm
“*” means revision, such as A, B and so on.
