6.3 INSTALLATION of VDR
6.3.1 Connetions
The VDR video signal (analog RGB) output connector is J605 of RPB CDC-1339 located in the
display unit (processing unit). See the drawing below.
When JRC’s VDR is used, by connecting it to TB604 (5, 6) MNT TX+/- of radar terminal board circuit
CQD-2128 located in the display unit (processing unit), it is possible to use the online maintenance
function. To know connecting method to VDR, see VDR’s installation manual (7ZPJD0389D).

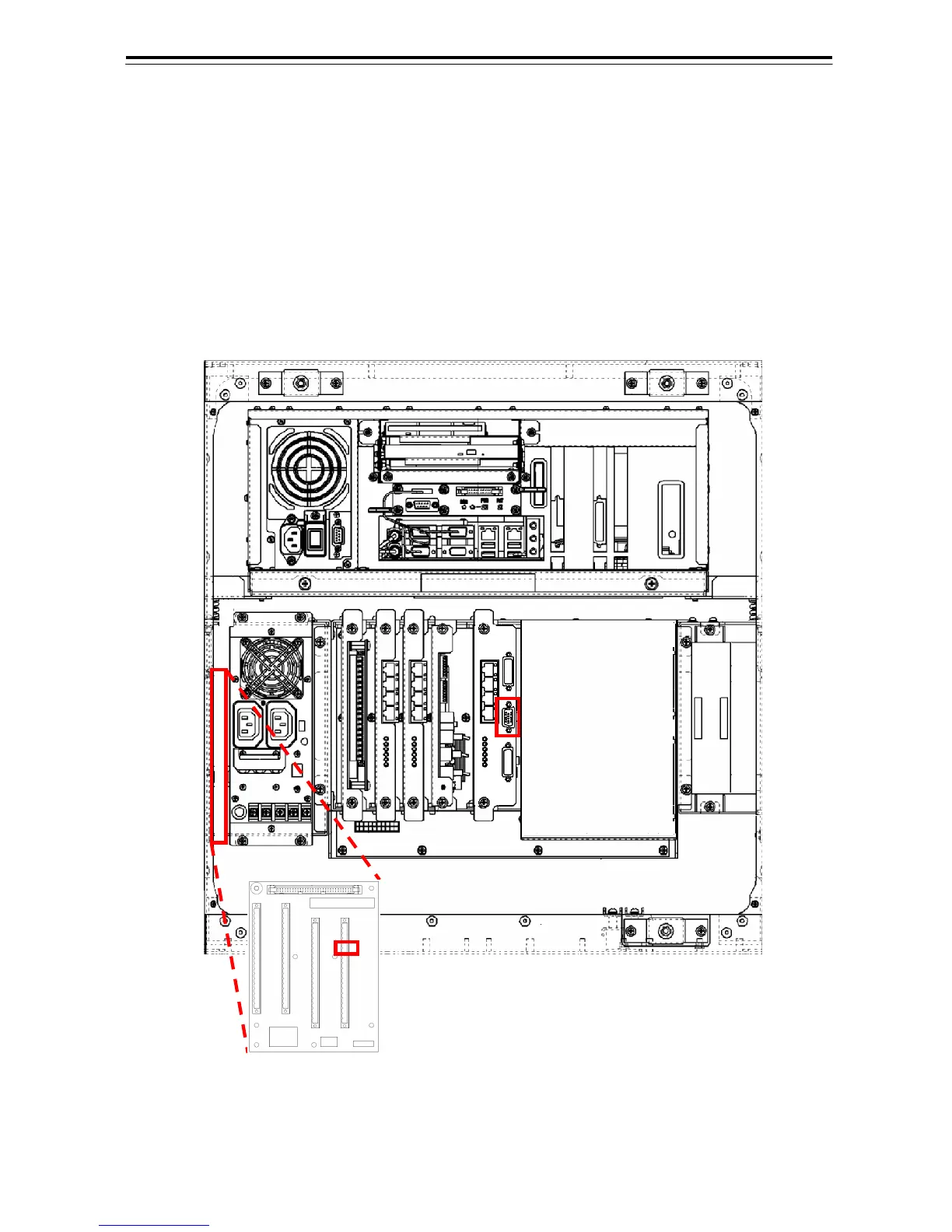

Fig 6-35 VDR connection connector / terminal block
J605
TB604 (5, 6)
MNT TX+/-
