JRC JMA-922B-9XA Installation Manual

2-20
2.1.3 Cable end processing method
Make a cable length with leeway that it is possible to do maintenance, a check,
repair works easily.
Secure a place of the house of a cable.
Remove about one meter of the oute skin, and then process the double
braided shield according to the procedures shown below.

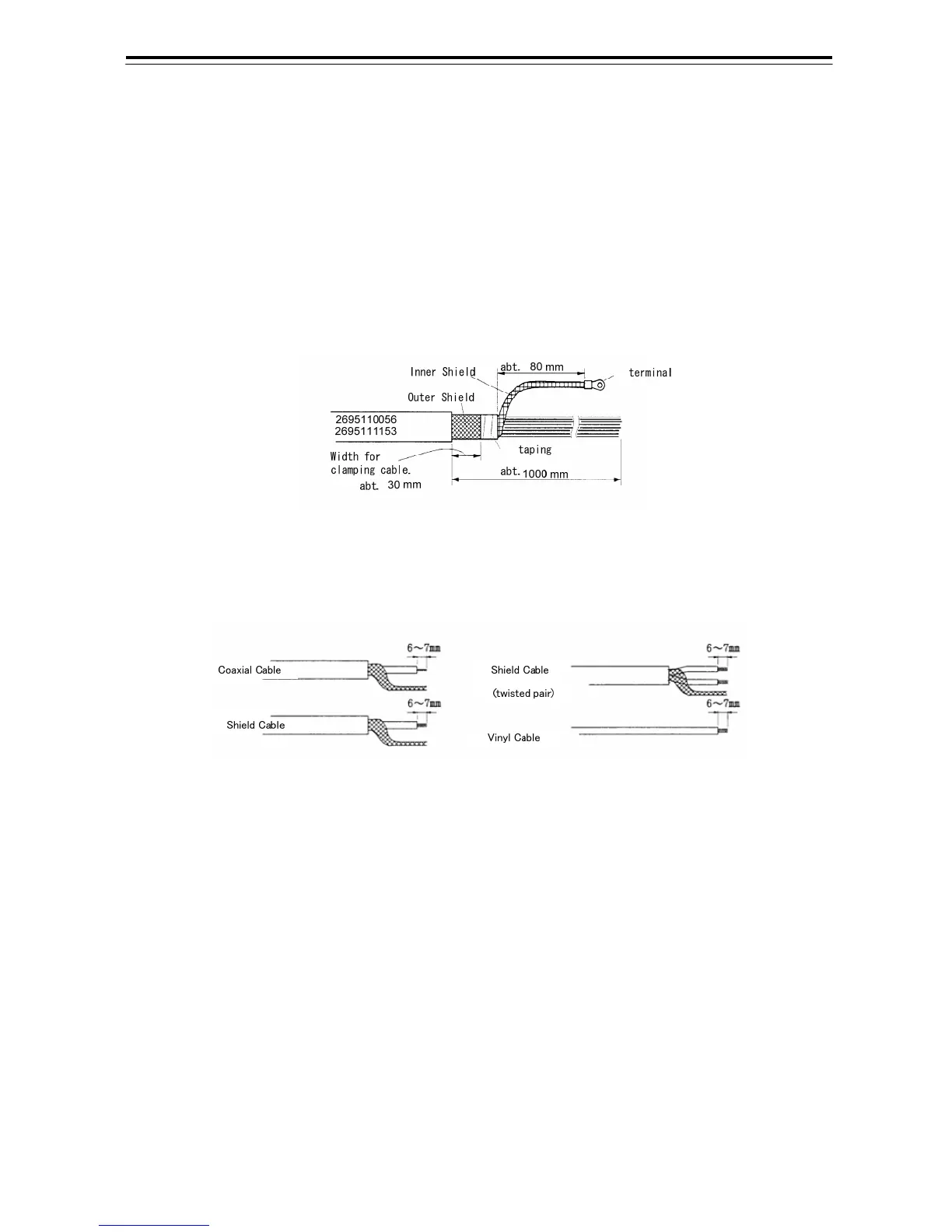

Fig 2-3 H-2695110056* Processing of braided shield
Do the terminal-treatment of each cable by the following point.
Fig 2-4 H-2695110056* End processing of each wire
