6-7

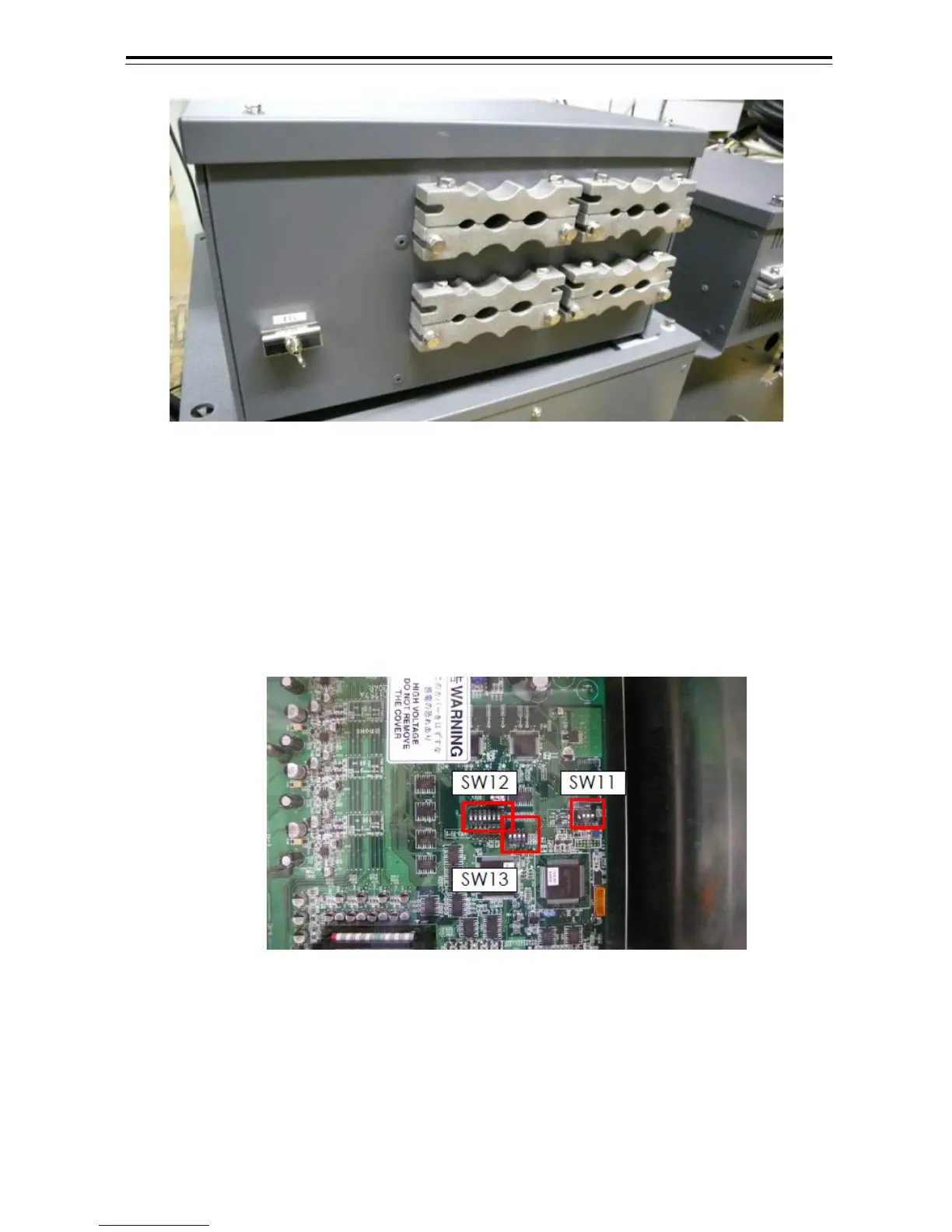

Fig 6-8: NQE-3141-8A Cable entrance
6.1.5 Setting
Since setting have been normally mode upon shipment from factory, it is advised to only confirm the
settings.
a. Setting of NQE-3141-2A, NQE-3141-4A
Set DIP switches SW11, SW12 and SW13 as shown below.
Fig 6-9: CML-304R DIP switch
To Next Page
