4.4 Connecting to CQD-2128 Radar Terminal Board
When connecting/disconnecting the connection cables between the external
equipment, make sure to turn off the breaker of the main power line.
Otherwise, a fire or an electric shock may occur.

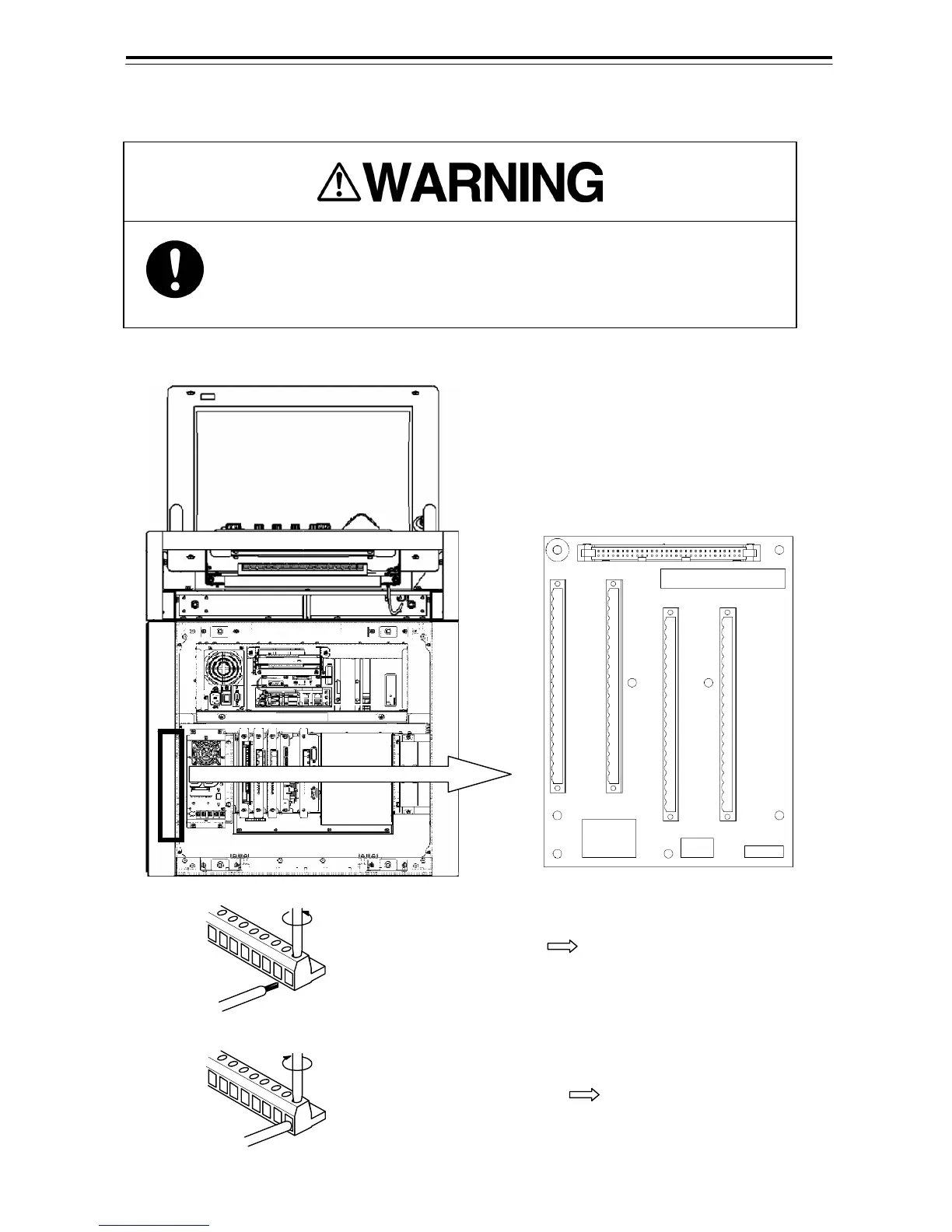

Insert the cable unit
Pull the cable lightly and confirm the
cable is surely tightened.
Turn the screw counterclockwise
by a solted screwdriver so as to
open the cable inlet.
Turn the screw clockwise by the
slotted screwdriver so as to
tighten the cable.
