4-7

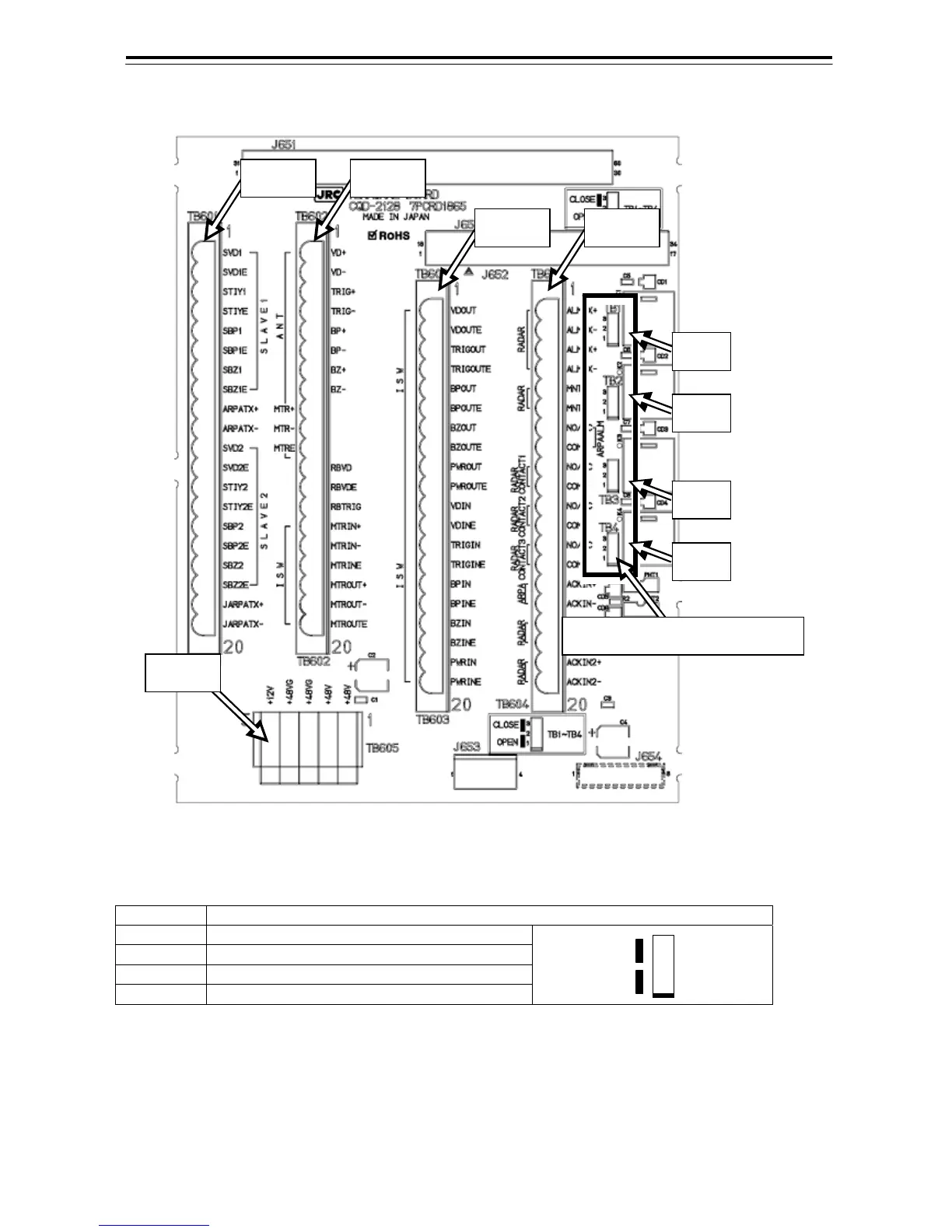

Each part of CQD-2128 Radar Terminal Board
Setting of TP1 to TP4
Pin name Setting
TB1 Setting of TB604 7-8 (ARPAALM)
TB2 Setting of TB604 9-10 (RADAR CONTACT1)
TB3 Setting of TB604 11-12 (RADAR CONTACT2)
TB4 Setting of TB604 13-14 (RADAR CONTACT3)
CQD-2128 Radar Terminal Board
TB601 TB602
TB603 TB604
TB605
Relay output setting jumper pin
3
2
1
TB1~TB4
CLOSE
OPEN
TB1
TB2
TB3
TB4
