5-22
5.1.3.4 Alarm Relay Setting
The Alarm Relay Set set the alarm which is output from the CQD-2121 standard terminal board and the
terminal of the CQD-2130 option board.

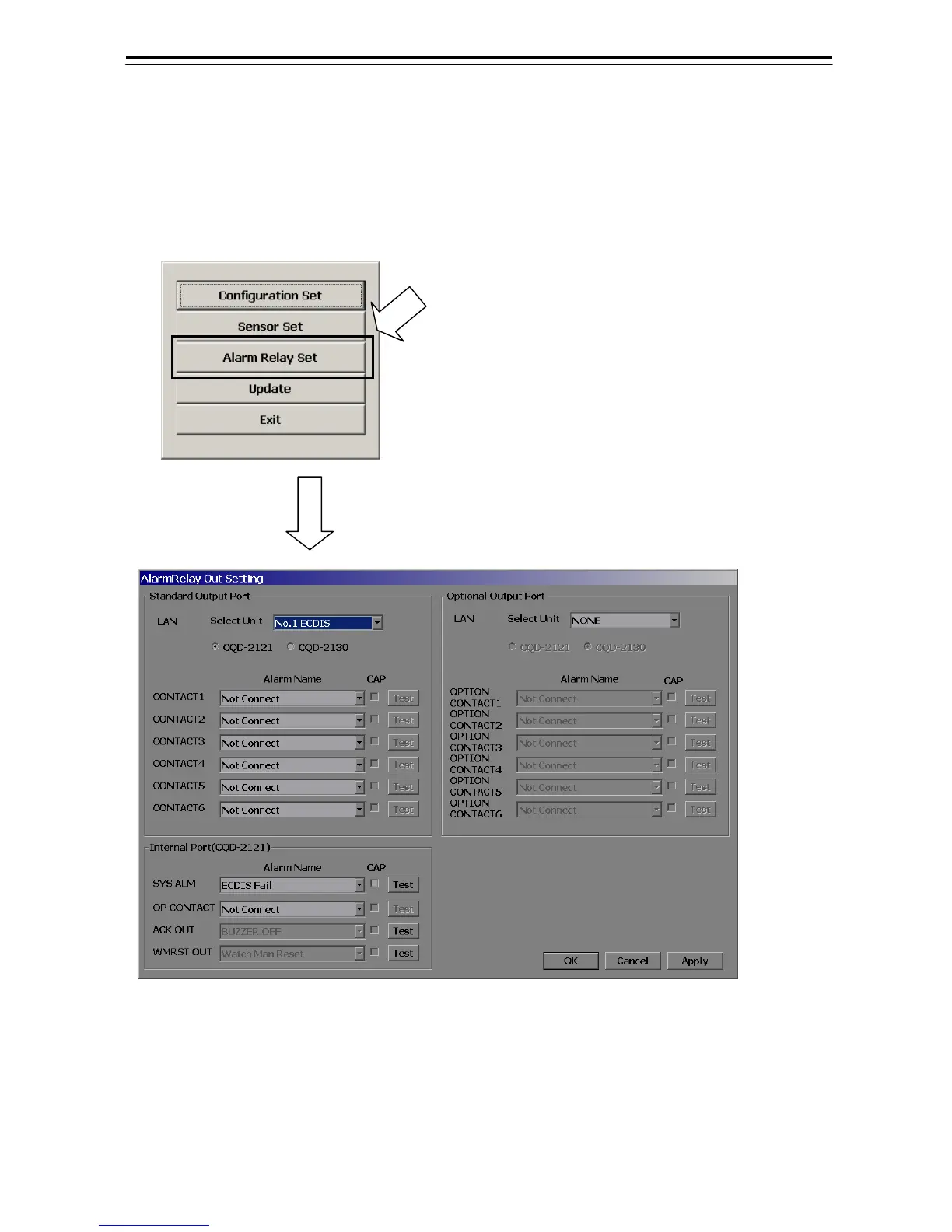

1) Left-click the [Alarm Relay Set] button. The [AlarmRelay Out Setting] dialog will appear.
Standard Output Port: Set the standard alarm which is output to the terminal of the tarminal board pass
SRB.
Optional Output Port: Set the optional alarm which is output to the terminal of the tarminal board pass
SRB.
Internal Port(CQD-2121): Set the alarm which is output to the terminal of the terminal board pass the
control unit.
