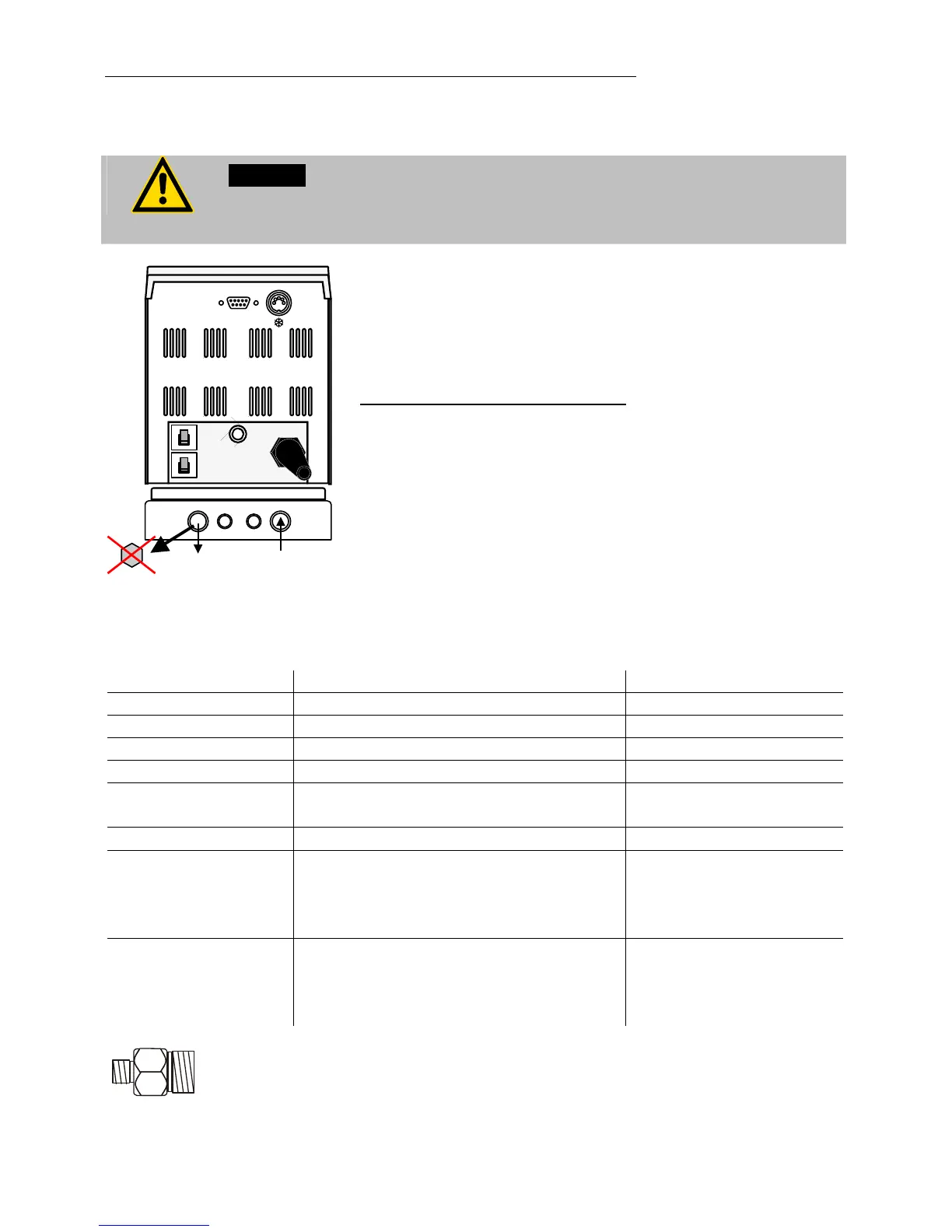

5.4. Temperature application to external systems
Caution: Securely attach all tubing to prevent slipping.
If the circulator is operated without external system, close the pump
connector (24a) with the cap nut.
RS 232
15
A
M
P
15
A
M
P
24a 24b
The circulator is used for temperature application to
external, closed systems (loop circuit) with simultaneous
temperature application in the circulator bath.
Connecting the external system
• Unscrew the collar nuts from the pump connector
(24a).
• Slide the tubing onto the pump connectors for feed
and return flow (24a, 24b).
5.4.1. Tubing
Recommended tubing:
Order No. Length Temperature range
8 930 008 1 m CR
®
tubing 8 mm inner dia. -20 °C to 120 °C
8 930 010 1 m CR
®
tubing 10 mm inner dia. -20 °C to 120 °C
8 930 108 1 m Viton tubing 8 mm inner dia. -50 °C to 200 °C
8 930 110 1 m Viton tubing 10 mm inner dia. -50 °C to 200 °C
8 930 410 1 m Insulation for tubing 8 mm or
10 mm inner dia.
-50 °C to 100 °C
8 930 209 0.5 m
8 930 210 1.0 m
8 930 211 1.5 m
8 930 214 3.0 m
Metal tubing, triple insulated, M16x1* -100 °C to +350 °C
8 930 220 0.5 m
8 930 221 1.0 m
8 930 222 1.5 m
8 930 223 3.0 m
Metal tubing, insulated, M16x1 * -50 °C to +200 °C
*) Adapter for metal tubing M10x1 on M16x1 Order No. 8 970 444
