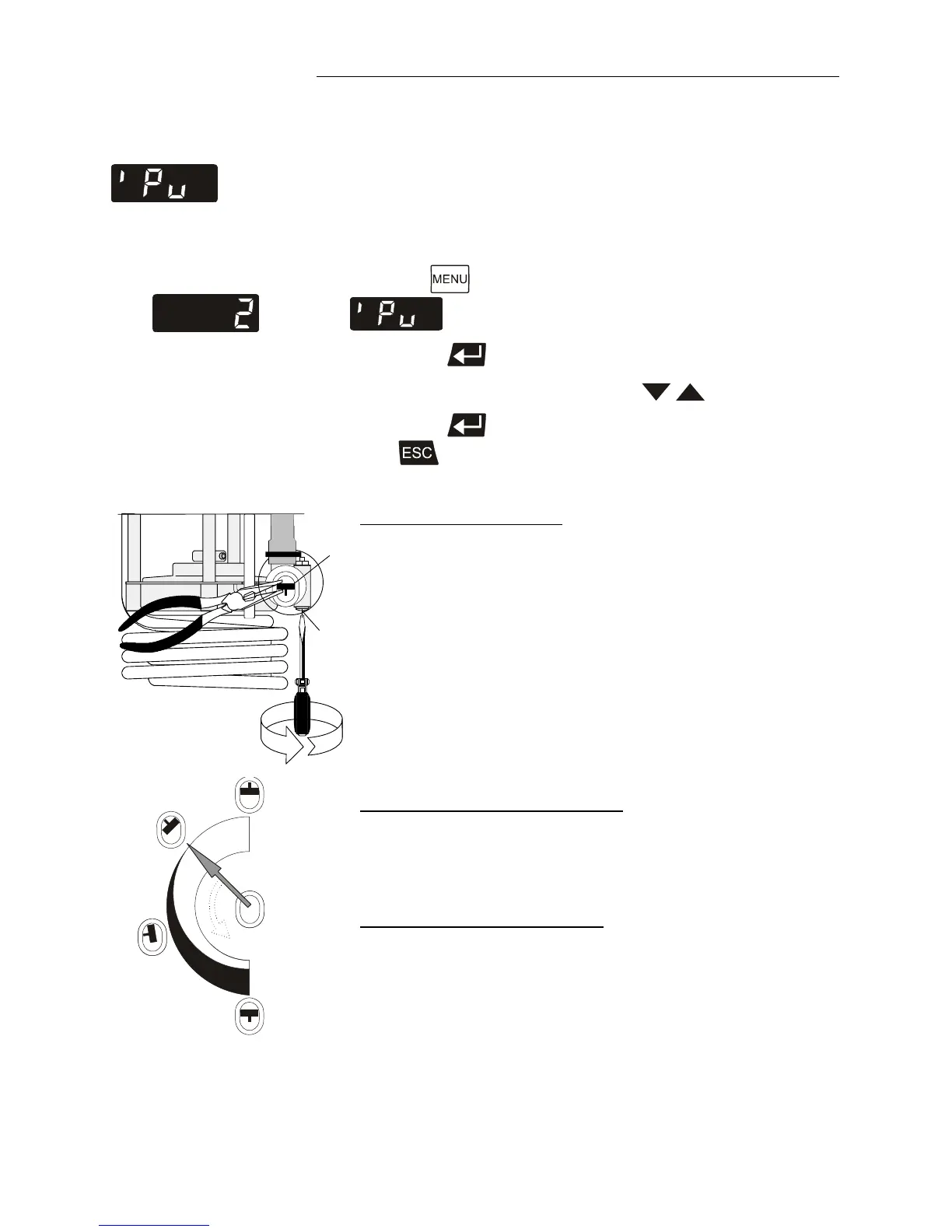

9.1. Setting the pump pressure
Factory setting:
Stage 2
The pressure of the circulating pump is adjustable in four
grades
Flow rate: 11 ... 16 l/min
Pump pressure: 0.22 ... 0.45 bar
1. Press the button until the menu item
is displayed.
2. Press enter to indicate the parameter.
3. Select the parameter with the keys (1 ... 4).
4. Press enter to store the selected parameter.
Press
to update the display immediately.
1
2
Adjusting the pump flow
The pump flow is pre-adjusted in the factory and can be
modified to suit user requirements.
• Using a screwdriver turn the screw (1) anti-clockwise
by 360 °.
• Using flat pliers turn the marking of the slide (2) to the
desired position.
• Tighten the screw.
external 80
%
internal100
%
internal 20 %
A
B
D
C
Examples:
Internal applications in the bath
A 100 % internal bath circulation
(for large bath tanks)
B Reduced internal bath circulation
(for smooth surface of bath fluid)
External/internal applications
C 40 % external discharge,
60 % internal circulation
(for large bath tanks)
D 80 % external discharge,
20 % internal circulation
(for small bath tanks)
