5 Installation
12
Connection

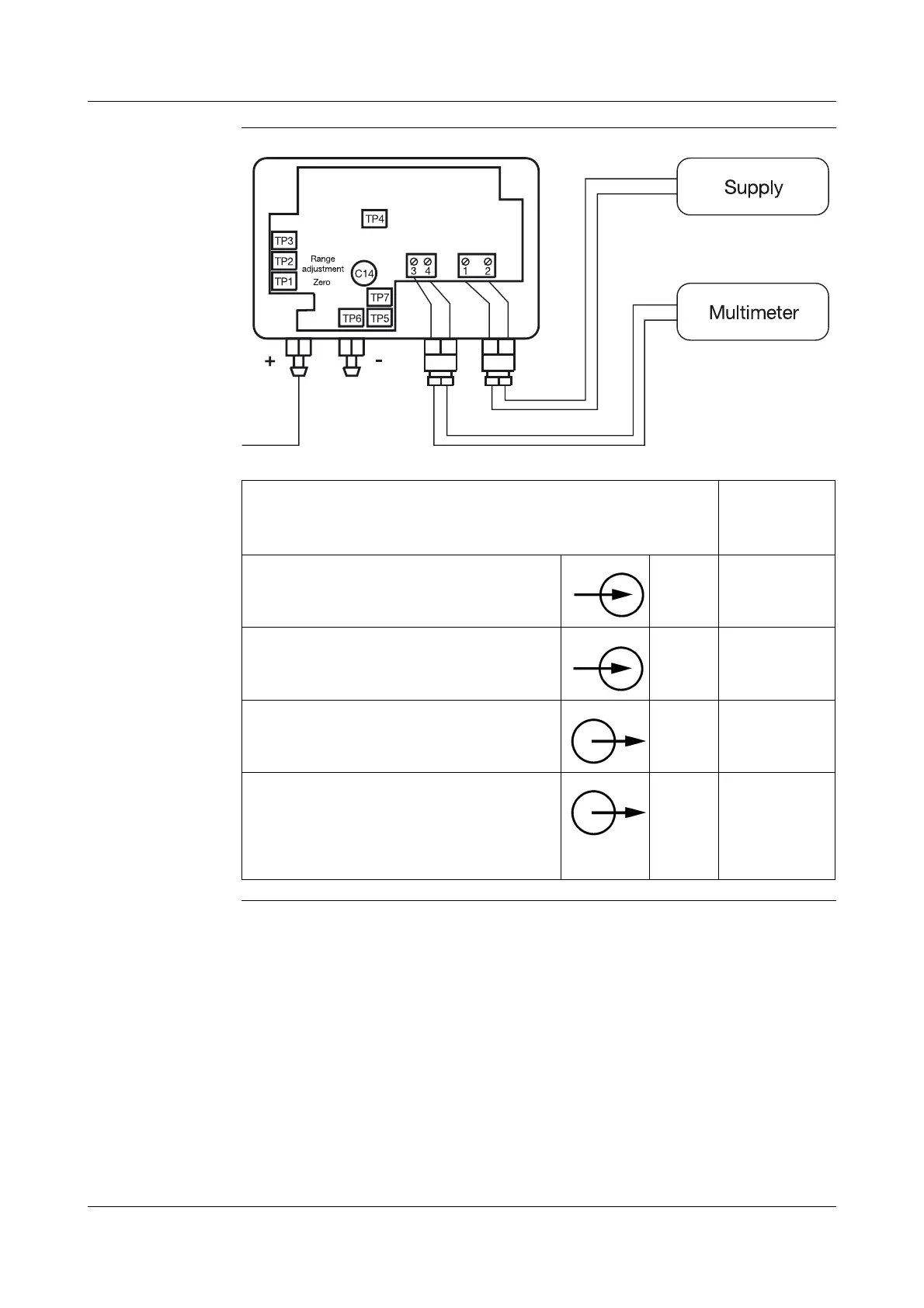

Connection Terminals
Terminal
block
DC supply
11.5 — 30 V, 19 — 31V
L -
L +
1
2
AC supply
230 V, 115 V, 24 V
N
L 1
1
2
Output
0 — 10 V, 0/4 — 20 mA, 3-wire
-
+
3
4
Output
4 — 20 mA, 2-wire
12 — 32 V DC
proportional current in supply line
-
+
1
2
