JUMO 404304 - 8 Setting the Limit Contacts

15
8 Setting the limit contacts
Required
aids
- pressure generator
- supply for pressure/differential pressure transmitter
- reference pressure measuring device or voltmeter/ammeter (multimeter)

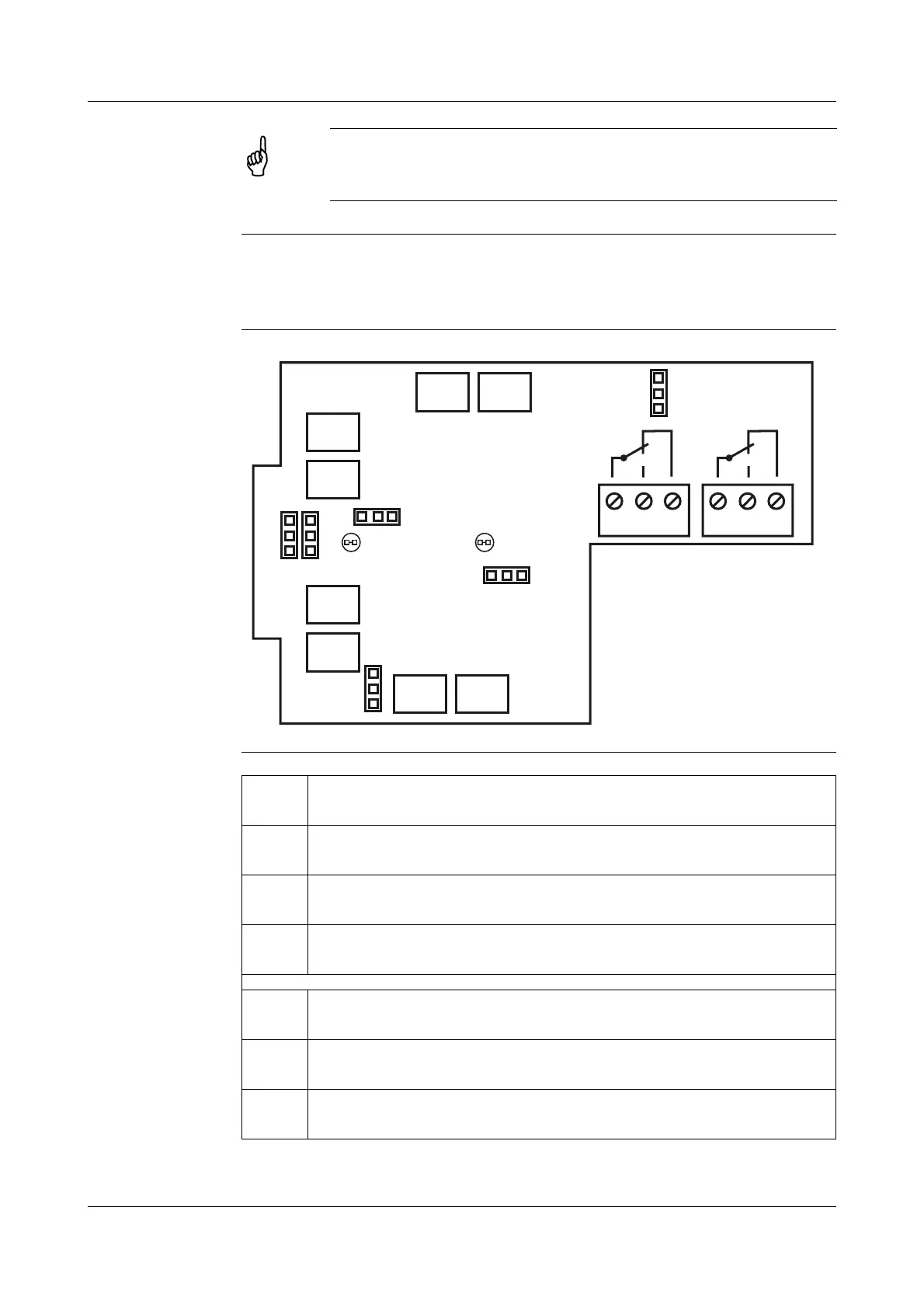

Controls
Description
Rating of limit contact: 6 A max. at 230 VAC
567 8910
TP6
TP7 TP8
J4
GK2
ST4
GK1
J2J1
ST5
J3
TP3 TP4
TP5
TP2
TP1
TP1 Potentiometer for limit of limit contact 1 (GK1)
Setting range: 0—100% of full scale
TP2 Potentiometer for hysteresis of GK1
Setting range: 1— 99% of full scale
TP3 Potentiometer for switch-on delay of GK1
Setting range: 0—10 sec
TP4 Potentiometer for switch-off delay of GK1
Setting range: 0—10 sec
TP5 Potentiometer for limit of limit contact 2 (GK2)
Setting range: 0—100% of full scale
TP6 Potentiometer for hysteresis of GK2
Setting range: 1—99% of full scale
TP7 Potentiometer for switch-off delay of GK2
Setting range: 0—10 sec
