5 Program editor
40

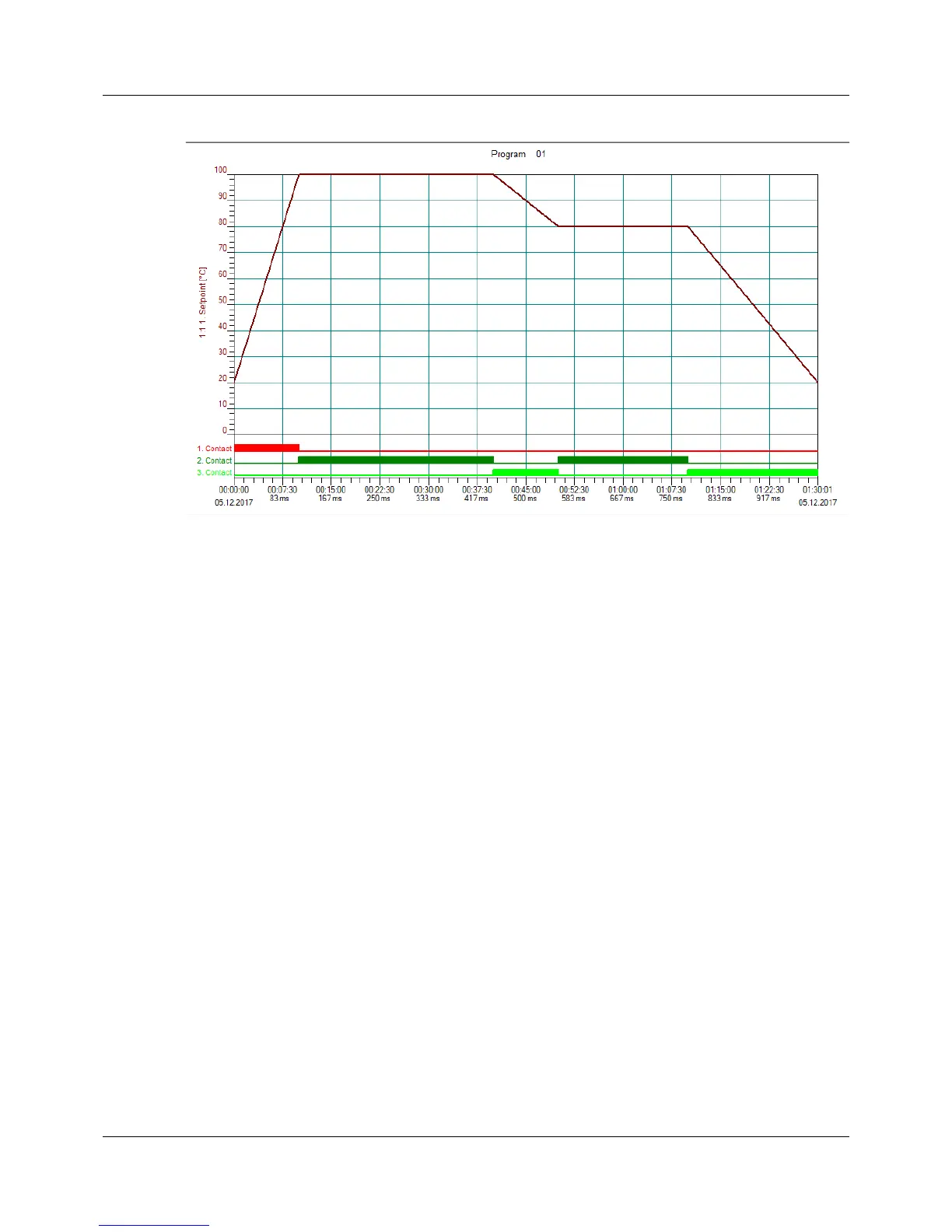

Example 2: Setpoint ramp
The setpoi
nt value
programme
d in
a
section (e.g.
20
in section
1)
changes
gradually
during
that section
to
the
setpoint
value of
the next
section (e.g.
100 in
section
2).
This produces
a
course
in a
ramp
shape.
For
a
setpoint
value
to
remain
constan
t
in
a section
(e.g. 100
in
section
2),
the
same setpoint
value
must
be specifie
d for the next s
ection (e.g.
100 in section 3
).
39
41
