41
6 Installation

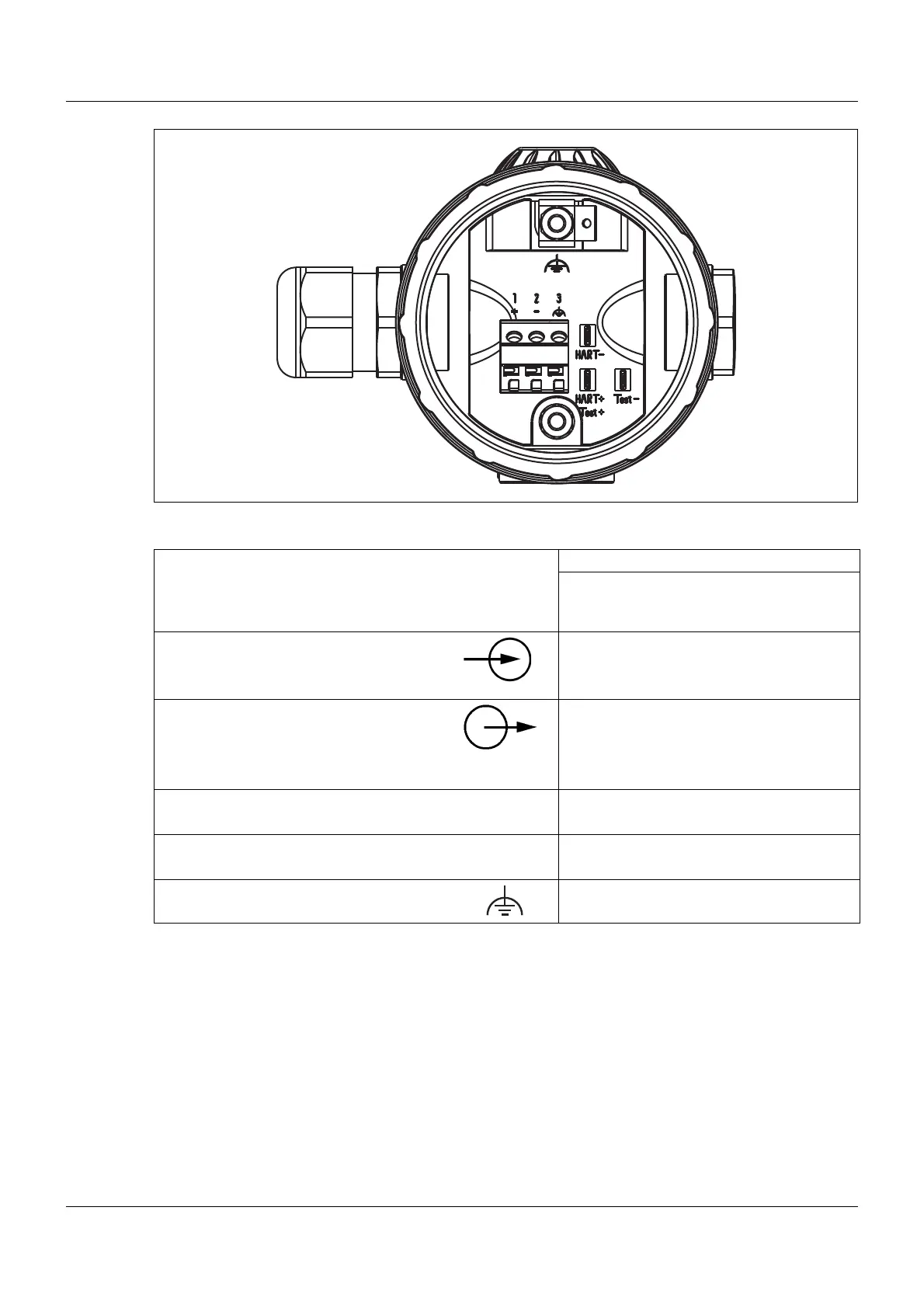

Terminal assignment
Connection Terminal assignment
82 (plastic),
93 (metal)
Cable fitting
Voltage supply 1 L+
DC 12 to 36 V for non-Ex-version 2 L-
DC 12 to 28 V for Ex-version
Output 1 L+
4to20mA, 2-wire 2 L-
Load-independent current: 4 to 20 mA
In voltage supply
Test connection for current output TEST +
Internal resistance of the ammeter ≤ 10 Ω TEST -
Test connection for HART® HART +
The burden must be present! HART -
Functional ground 3
