Jungheinrich AMX Inox User Manual

1205.GB
E 8
Stability at Height
M
Risk of trapping from moving parts!

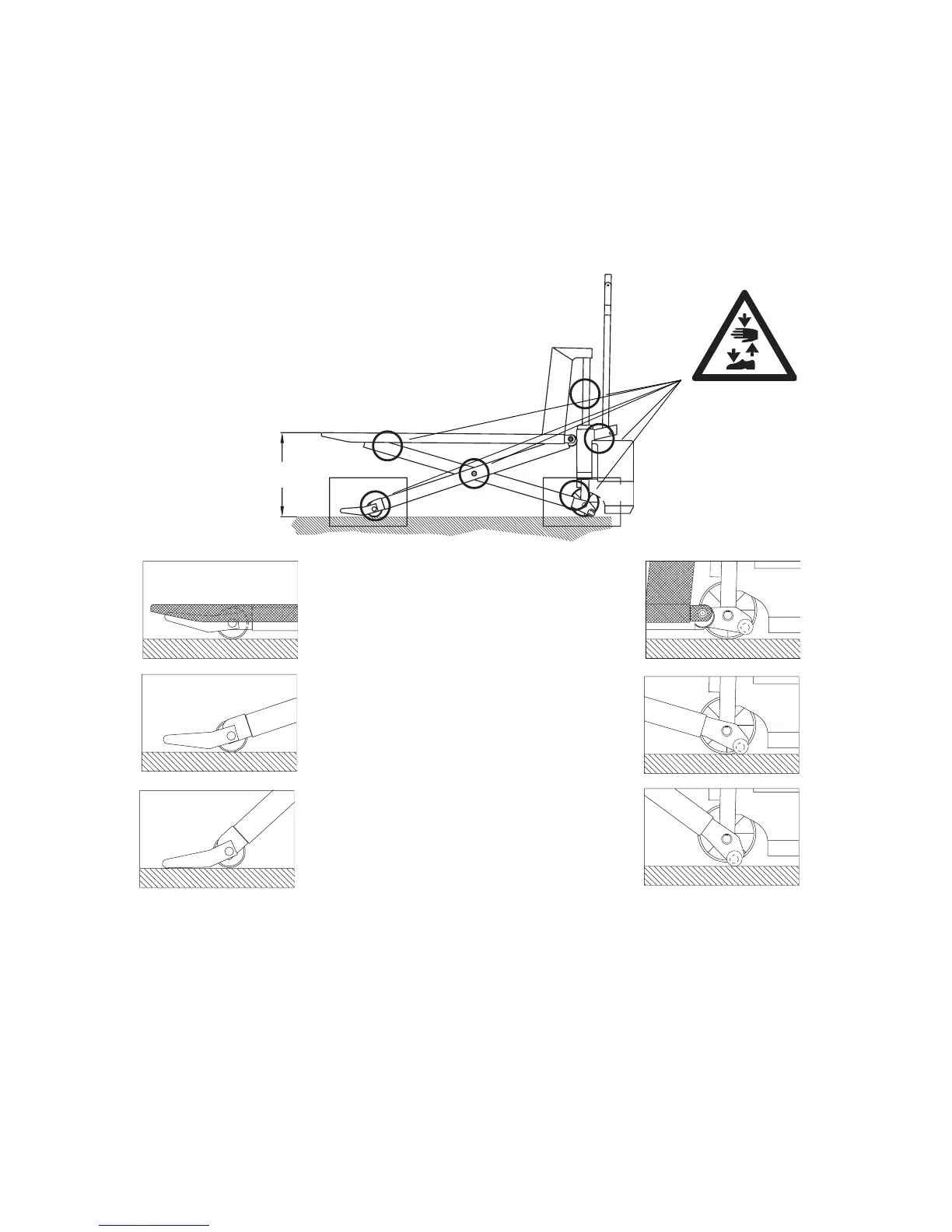

The support legs (13) and bearing thrust strap (12) combine to stabilise the truck.
When the forks are above a height of 400 mm, the support legs and bearing thrust
strap automatically lower to prevent the scissor lift truck from travelling. The support
legs are eccentric, so that they can be adjusted according to their gradual state of
wear.
4.4 Parking the truck securely
F
Always park the truck securely.
Do not park the truck on an incline.
The load fork must always be lowered to the ground.
– Lower the load forks.
h
13
12
13
h
13
= 90 mm
Raise the bearing thrust strap (12) and
support leg (13) off the ground.
h
13
= 400 mm
The support leg (13) brakes the truck.
h
13
= 800 mm
The bearing thrust strap (12) raises the
steer wheel, the support leg (13) raises
the load wheel.
1205.GB
E 8
Stability at Height
M
Risk of trapping from moving parts!
The support legs (13) and bearing thrust strap (12) combine to stabilise the truck.
When the forks are above a height of 400 mm, the support legs and bearing thrust
strap automatically lower to prevent the scissor lift truck from travelling. The support
legs are eccentric, so that they can be adjusted according to their gradual state of
wear.
4.4 Parking the truck securely
F
Always park the truck securely.
Do not park the truck on an incline.
The load fork must always be lowered to the ground.
– Lower the load forks.
h
13
12
13
h
13
= 90 mm
Raise the bearing thrust strap (12) and
support leg (13) off the ground.
h
13
= 400 mm
The support leg (13) brakes the truck.
h
13
= 800 mm
The bearing thrust strap (12) raises the
steer wheel, the support leg (13) raises
the load wheel.
