0206.GB
E 6
Activates switch (10) under the respective symbols (18) displayed or confirms the
related function. The symbol will be given a dark background.

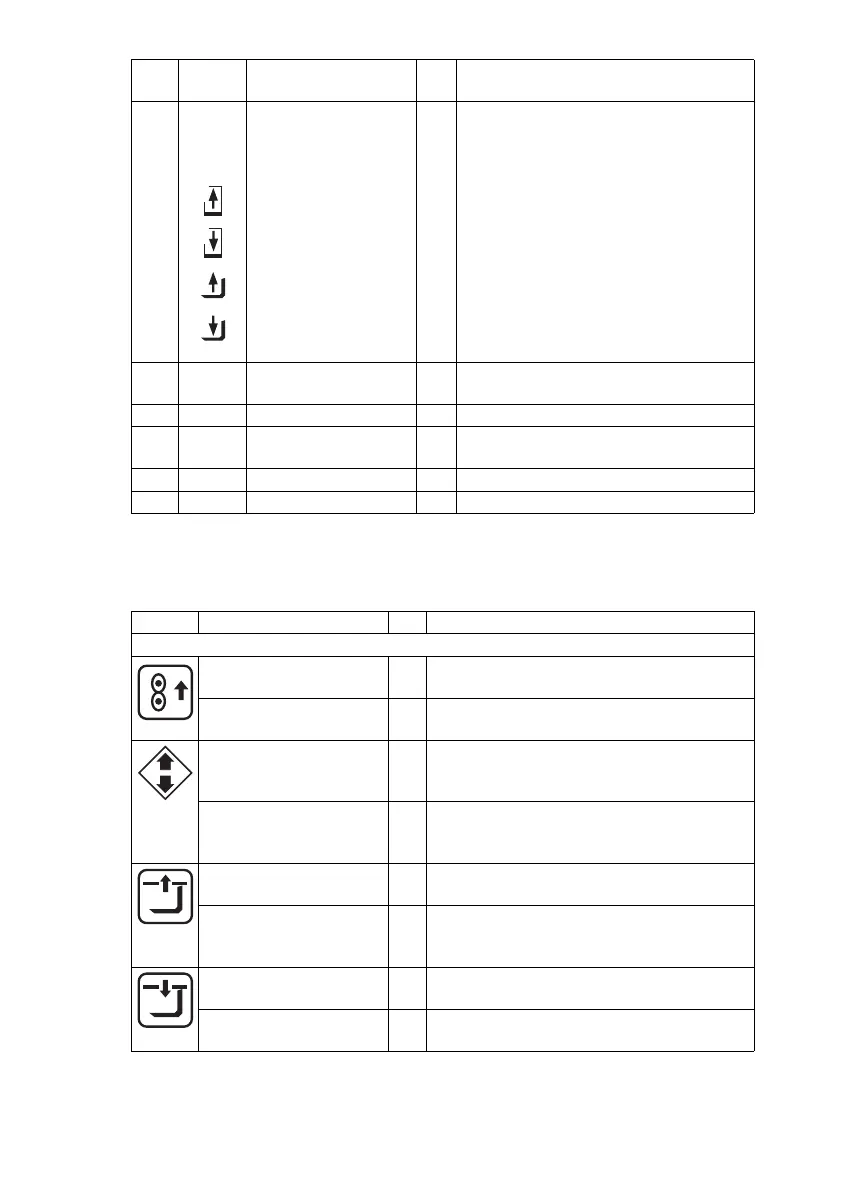

Lower range symbols and keys
14 Display
“Overall lift”
“Referencing
required” display:
Main lift - lift
Main lift - lower
Aux. lift - lift
Aux. lift - lower
t Displays the lift height of the forks
Requests Main Lift to lift
Requests Main Lift to lower
Requests Aux. Lift to lift
Requests Aux. Lift to lower
15 “Operating hours”
display
t Displays the number of operating hours
since the truck was commissioned
16 “Time” display t Shows the time
17 Battery discharge
indicator
t Displays the battery charge condition
(residual capacity as a percentage)
19 Optional function o
20 Optional function o
Symbol Operating / display unit Function
Warnings
“Chain slack safety
device” display
t Displayed when the chain slack safety
device engages
“Chain slack safety
device bypass” switch
Bypasses the chain slack safety device to
lift the driver's position freely
“Fwd./Rev. travel only”
display
t Displayed when the lift cutout device is
actvated due to low battery capacity and
only forward or reverse travel is possible.
“Acknowledge lift cutout
due to battery discharge”
switch
Confirms the lift cutout due to low battery
capacity and releases travel (the Fwd./Rev.
travel only display has a dark background)
Display
“Lift limit”
o Displayed when the height dependent lift
cutout is activated
“Lift limitoverride”switch Overrides the height dependent lift cutout
(display has a dark background). Observe
the maximum passage heights
“Lower limit” display o Indicates that the automatic lowering limit
has been activated.
“Lowering limit bypass”
switch
Bypasses the lowering limit, controlled by
hydraulic control switch
Item Symbol Operating / Display
Equipment
Function
0206.GB
E 6
Activates switch (10) under the respective symbols (18) displayed or confirms the
related function. The symbol will be given a dark background.
Lower range symbols and keys
14 Display
“Overall lift”
“Referencing
required” display:
Main lift - lift
Main lift - lower
Aux. lift - lift
Aux. lift - lower
t Displays the lift height of the forks
Requests Main Lift to lift
Requests Main Lift to lower
Requests Aux. Lift to lift
Requests Aux. Lift to lower
15 “Operating hours”
display
t Displays the number of operating hours
since the truck was commissioned
16 “Time” display t Shows the time
17 Battery discharge
indicator
t Displays the battery charge condition
(residual capacity as a percentage)
19 Optional function o
20 Optional function o
Symbol Operating / display unit Function
Warnings
“Chain slack safety
device” display
t Displayed when the chain slack safety
device engages
“Chain slack safety
device bypass” switch
Bypasses the chain slack safety device to
lift the driver's position freely
“Fwd./Rev. travel only”
display
t Displayed when the lift cutout device is
actvated due to low battery capacity and
only forward or reverse travel is possible.
“Acknowledge lift cutout
due to battery discharge”
switch
Confirms the lift cutout due to low battery
capacity and releases travel (the Fwd./Rev.
travel only display has a dark background)
Display
“Lift limit”
o Displayed when the height dependent lift
cutout is activated
“Lift limitoverride”switch Overrides the height dependent lift cutout
(display has a dark background). Observe
the maximum passage heights
“Lower limit” display o Indicates that the automatic lowering limit
has been activated.
“Lowering limit bypass”
switch
Bypasses the lowering limit, controlled by
hydraulic control switch
Item Symbol Operating / Display
Equipment
Function
