E 7
0206.GB
“Travel cutout” display o Indicates that automatic, height dependent
travel cutout has been activated
“Travel cutout bypass”
switch
Bypasses the automatic, height dependent
travel cutout
“Aisle end safety device”
display (option)
o Indicates that the aisle end safety device
has been activated. The truck brakes.
“Personal safety
system” display (PSA)
o Indicates that the personal safety system
has identified persons or objects in the aisle.
The truck brakes.
“Personalsafety system”
switch (PSA)
Bypasses the protective function and
enables creep mode if there is sufficient
distance from the obstacle.
If a personal safety system is fitted, read the
accompanying operator manual.
Select “Warning sub-
menu” display
o Indicates that several warnings (e.g. chain
slack safety device height dependent lift
cutout) have been issued.
Quit “warnings” sub-
menu.
Displays individual warnings
Quit “warnings” sub-
menu.
o Indicates that the sub-menu can be quit.
“Cancel warnings sub-
menu” switch
Sets the “warnings” sub-menu to the
standard menu
Guidance systems
“Guidance on” display
(dark background when
activated)
t
RG
WG
Displays automatic guidance in the aisle:
Rail guidance display
(drive wheel set straight ahead)
Indicates that wire guidance is activated
“Guidance on” switch RG
WG
Sets the drive wheel to straight ahead
position
Activates the aligning process (and
frequency selection for multi-frequencies)
Displays “Select
Frequency 1” (similar to
other frequencies)
(“Guidance on” sub-
menu)
o
WG
Indicates that guidance is possible through
Frequency 1
“Select Frequency 1”
switch (similar to other
frequencies)
Activates guidance through Frequency 1
(sub-menu is quit automatically after 1 sec.
duration)
“Special attachment”
display
o Indicates that the special attachment can be
controlled
“Special attachment”
switch
Activates control of the special attachment,
controlled via the hydraulic control switch

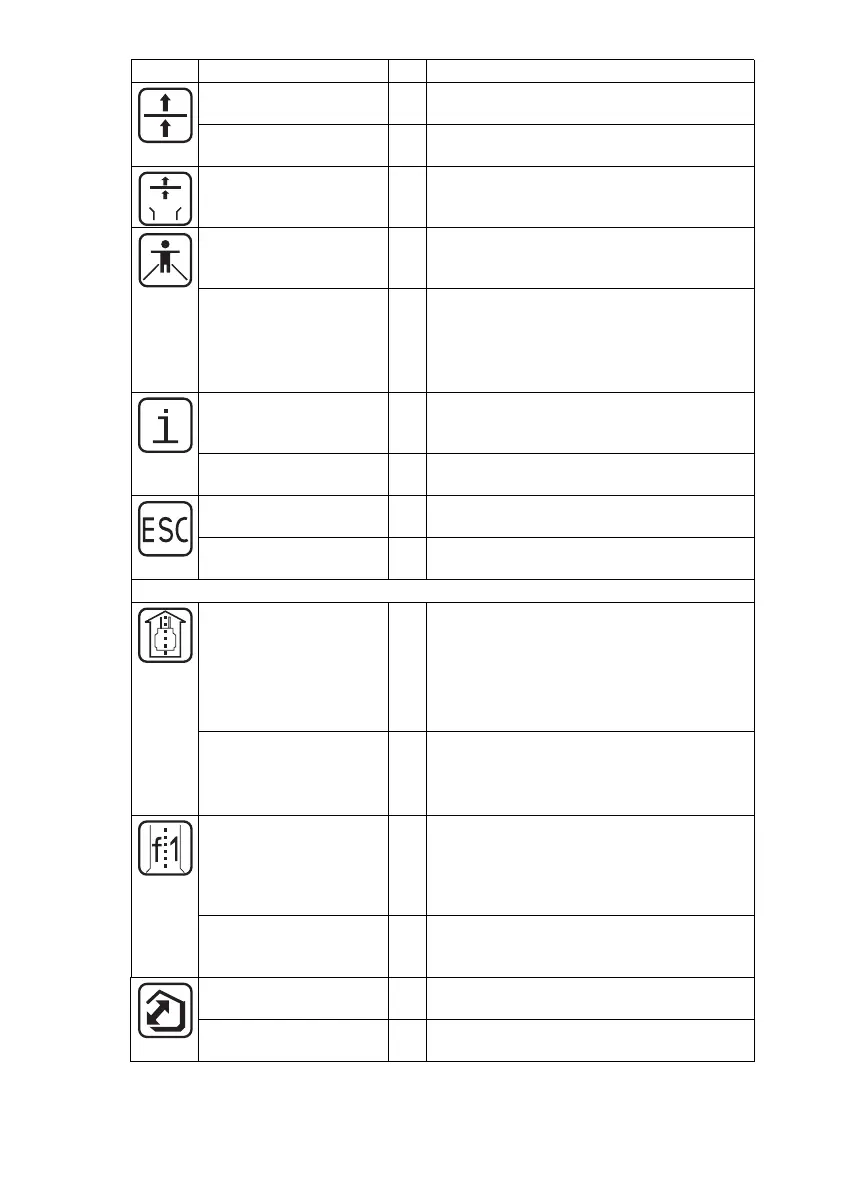

Symbol Operating / display unit Function
E 7
0206.GB
“Travel cutout” display o Indicates that automatic, height dependent
travel cutout has been activated
“Travel cutout bypass”
switch
Bypasses the automatic, height dependent
travel cutout
“Aisle end safety device”
display (option)
o Indicates that the aisle end safety device
has been activated. The truck brakes.
“Personal safety
system” display (PSA)
o Indicates that the personal safety system
has identified persons or objects in the aisle.
The truck brakes.
“Personalsafety system”
switch (PSA)
Bypasses the protective function and
enables creep mode if there is sufficient
distance from the obstacle.
If a personal safety system is fitted, read the
accompanying operator manual.
Select “Warning sub-
menu” display
o Indicates that several warnings (e.g. chain
slack safety device height dependent lift
cutout) have been issued.
Quit “warnings” sub-
menu.
Displays individual warnings
Quit “warnings” sub-
menu.
o Indicates that the sub-menu can be quit.
“Cancel warnings sub-
menu” switch
Sets the “warnings” sub-menu to the
standard menu
Guidance systems
“Guidance on” display
(dark background when
activated)
t
RG
WG
Displays automatic guidance in the aisle:
Rail guidance display
(drive wheel set straight ahead)
Indicates that wire guidance is activated
“Guidance on” switch RG
WG
Sets the drive wheel to straight ahead
position
Activates the aligning process (and
frequency selection for multi-frequencies)
Displays “Select
Frequency 1” (similar to
other frequencies)
(“Guidance on” sub-
menu)
o
WG
Indicates that guidance is possible through
Frequency 1
“Select Frequency 1”
switch (similar to other
frequencies)
Activates guidance through Frequency 1
(sub-menu is quit automatically after 1 sec.
duration)
“Special attachment”
display
o Indicates that the special attachment can be
controlled
“Special attachment”
switch
Activates control of the special attachment,
controlled via the hydraulic control switch
