Jungheinrich ETM/V 214 User Manual

1003.GB
B 14

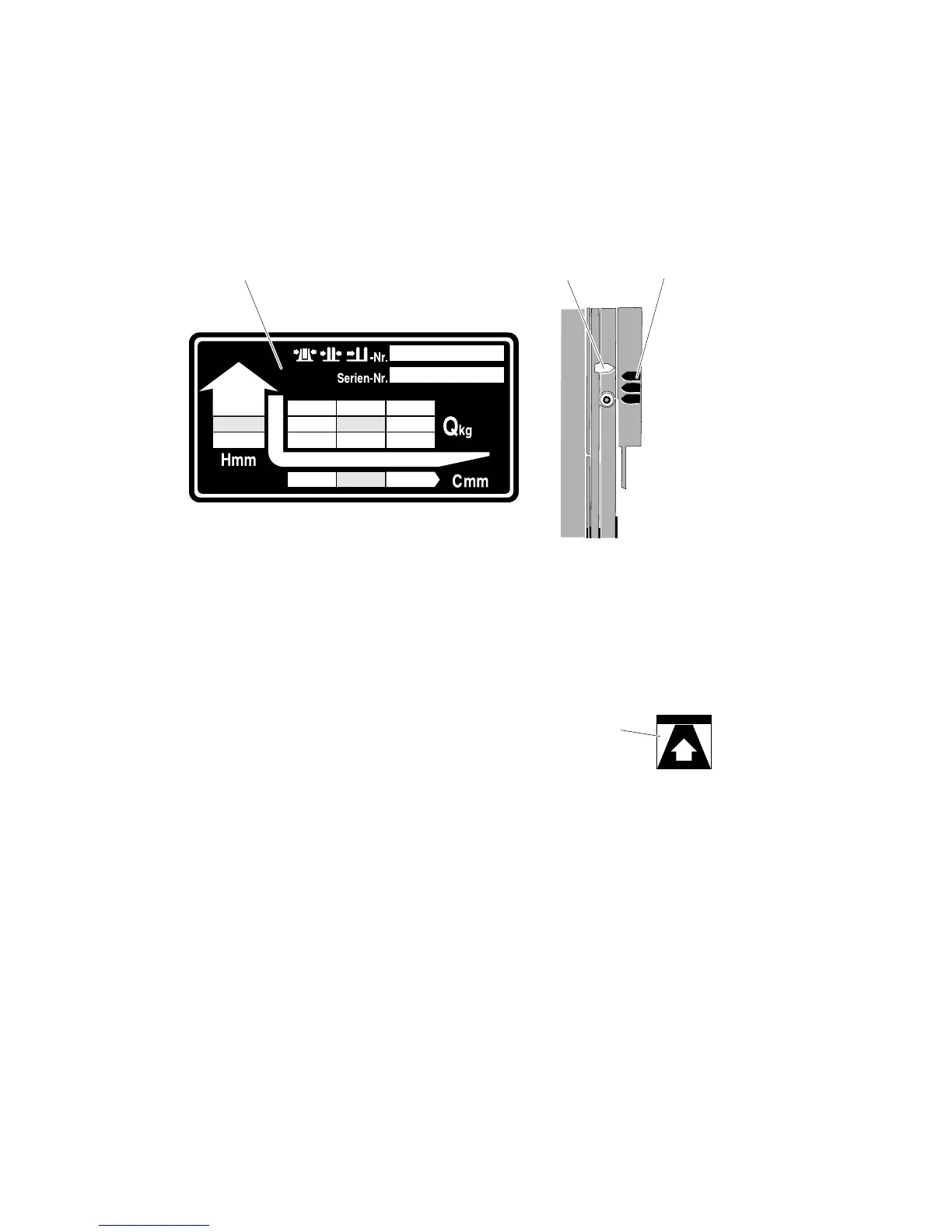

4.2 Capacity Plate, Capacity / Load Centre of Gravity / Lift Height
The capacity plate (22) gives the capacity (Q) of the vehicle in kg with a vertical hoist
frame. In tabular form the maximum capacity is shown with a standard load centre of
gravity distance * C (in mm) and the desired lift height H (in mm). The arrows (42 and
43) on the inner and outer masts show the driver when he has reached the preset lift
heights shown in the load diagram.
*) The standard load centre of gravity distance not only takes into consideration the
load height but also the load width.
Example to calculate the maximum capacity:
With a load centre of gravity distance C of 600 mm and a maximum lift height H of
3600 mm. the max. capacity Q is 1105 kg.
4.3 Jack Securing Point
The notice "Jack securing point" (27)
shows the place where the vehicle may
be lifted and chocked up (see Chapter
F).
4.4 Notice: Observe Operator Manual
When commissioning (see Chapter C) and using the mechanical auxiliary steering
system (see Chapter E) carefully following the instructions contained in the Operator
Manual.
4222 43
500 600 700
850
850
600
X.XXXX.XX.XX
1250
1105
850
1250
1105
850
2900
3600
4250
27
1003.GB
B 14
4.2 Capacity Plate, Capacity / Load Centre of Gravity / Lift Height
The capacity plate (22) gives the capacity (Q) of the vehicle in kg with a vertical hoist
frame. In tabular form the maximum capacity is shown with a standard load centre of
gravity distance * C (in mm) and the desired lift height H (in mm). The arrows (42 and
43) on the inner and outer masts show the driver when he has reached the preset lift
heights shown in the load diagram.
*) The standard load centre of gravity distance not only takes into consideration the
load height but also the load width.
Example to calculate the maximum capacity:
With a load centre of gravity distance C of 600 mm and a maximum lift height H of
3600 mm. the max. capacity Q is 1105 kg.
4.3 Jack Securing Point
The notice "Jack securing point" (27)
shows the place where the vehicle may
be lifted and chocked up (see Chapter
F).
4.4 Notice: Observe Operator Manual
When commissioning (see Chapter C) and using the mechanical auxiliary steering
system (see Chapter E) carefully following the instructions contained in the Operator
Manual.
4222 43
500 600 700
850
850
600
X.XXXX.XX.XX
1250
1105
850
1250
1105
850
2900
3600
4250
27
