6.3 On Board Computer (o)
The on board computer represents the operator’s interface to the truck. It acts as a
display and control unit for the operator as well service engineers. By pressing
different keys (softkeys (64)) a range of menus (65) can be selected. Menu (66)
shows three conditions: Active, inactive and not available for selection (grey
background).
All displays are shown as plain text or in symbol form for easy identification. The
significance of the individual symbols is explained in Section 6.4.
A colour contrasting display gives information on direction of travel, steering angle,
battery condition and many other selected truck parameters.

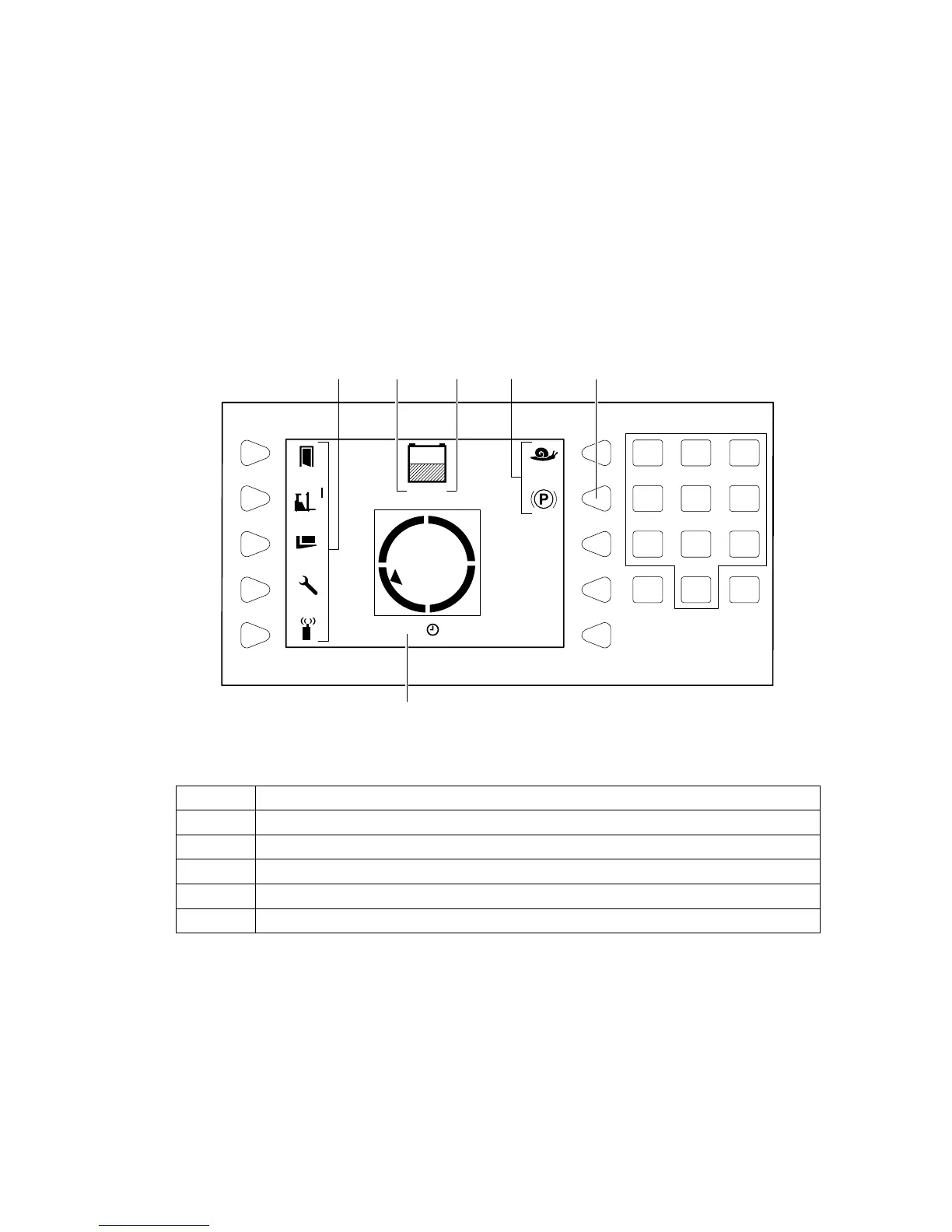

Item. Description
61 Operating Hours
62 Battery Charge as %
63 "T" for full discharge protection on maintenance free batteries.
64 Softkeys
65 Menus
