E 17
1003.GB
Lifting
F
Do not allow anybody to stand
underneath a load that is being raised.

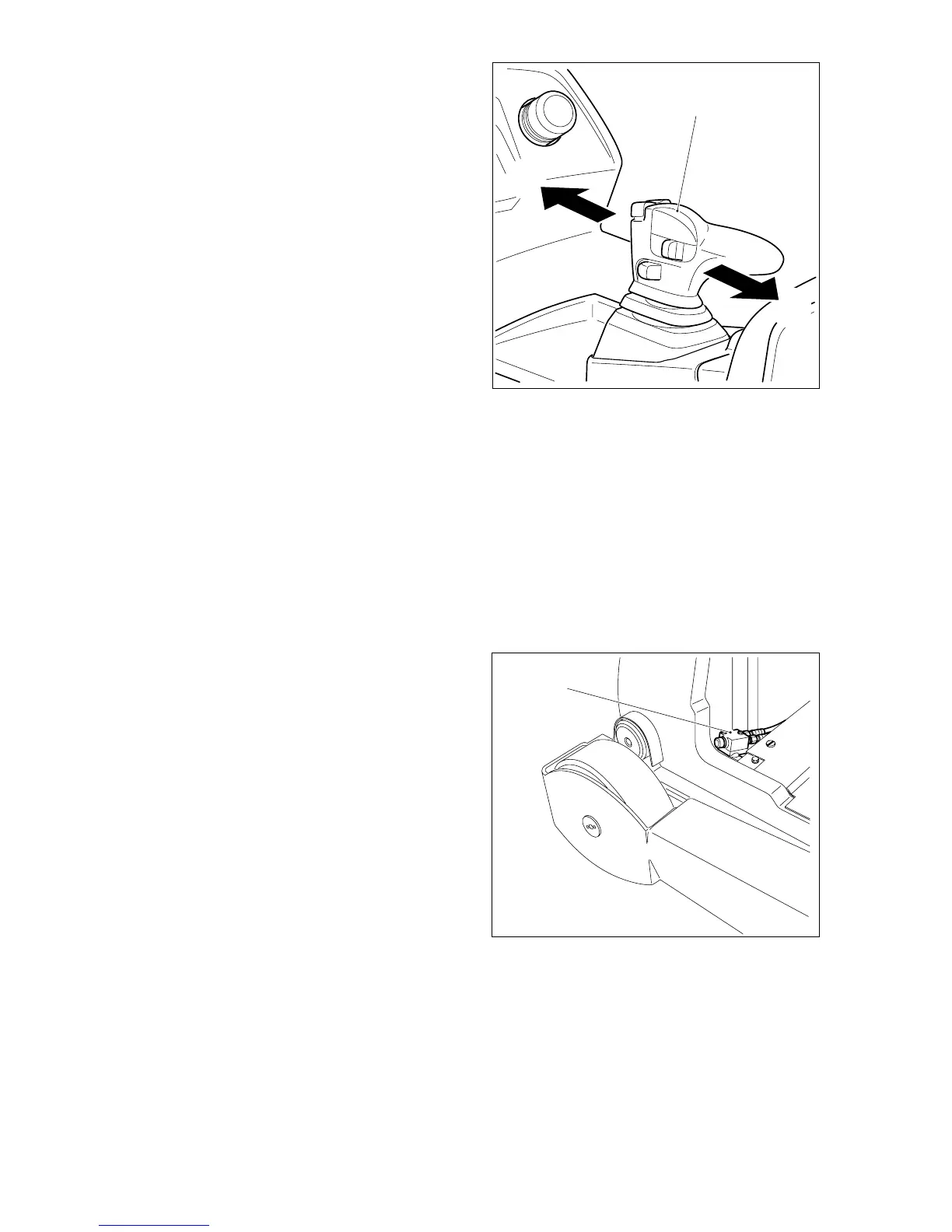

– Pull Multi-Pilot (3) in direction (H).
Z
The angle of the control lever
determines the lift speed.
– Operate the Multi-Pilot until the
desired height is reached.
Z
When the end stop is reached (there will
be a noise from the pressure relief valve)
return the control lever immediately to
the start position.
Lowering
– Press Multi-Pilot (3) in direction (S).
Z
The angle of the Multi-Pilot determines the lowering speed.
M
Avoid dropping the load unit heavily in order to protect the load and the rack surface.
4.5 Emergency Lowering
F
Do not allow anyone in the danger area when performing emergency lowering.
If the hoist frame does not lower due to a fault in the lift controller the emergency
lowering valve (30) located on the back of the mast holder must be applied.
F
Only operate the emergency lowering
valve when you are standing next to the
truck!
Never reach through the hoist frame!
Do not walk underneath the load!
– Turn off the main switch and the key
switch
– Withdraw battery connector.
– Press the red valve head downwards
using a suitable extension and hold in
this position. Lower the hoist frame
and load pickup device slowly.
F
Only operate the truck when the fault has been rectified.
3
H
S
E 17
1003.GB
Lifting
F
Do not allow anybody to stand
underneath a load that is being raised.
– Pull Multi-Pilot (3) in direction (H).
Z
The angle of the control lever
determines the lift speed.
– Operate the Multi-Pilot until the
desired height is reached.
Z
When the end stop is reached (there will
be a noise from the pressure relief valve)
return the control lever immediately to
the start position.
Lowering
– Press Multi-Pilot (3) in direction (S).
Z
The angle of the Multi-Pilot determines the lowering speed.
M
Avoid dropping the load unit heavily in order to protect the load and the rack surface.
4.5 Emergency Lowering
F
Do not allow anyone in the danger area when performing emergency lowering.
If the hoist frame does not lower due to a fault in the lift controller the emergency
lowering valve (30) located on the back of the mast holder must be applied.
F
Only operate the emergency lowering
valve when you are standing next to the
truck!
Never reach through the hoist frame!
Do not walk underneath the load!
– Turn off the main switch and the key
switch
– Withdraw battery connector.
– Press the red valve head downwards
using a suitable extension and hold in
this position. Lower the hoist frame
and load pickup device slowly.
F
Only operate the truck when the fault has been rectified.
3
H
S
