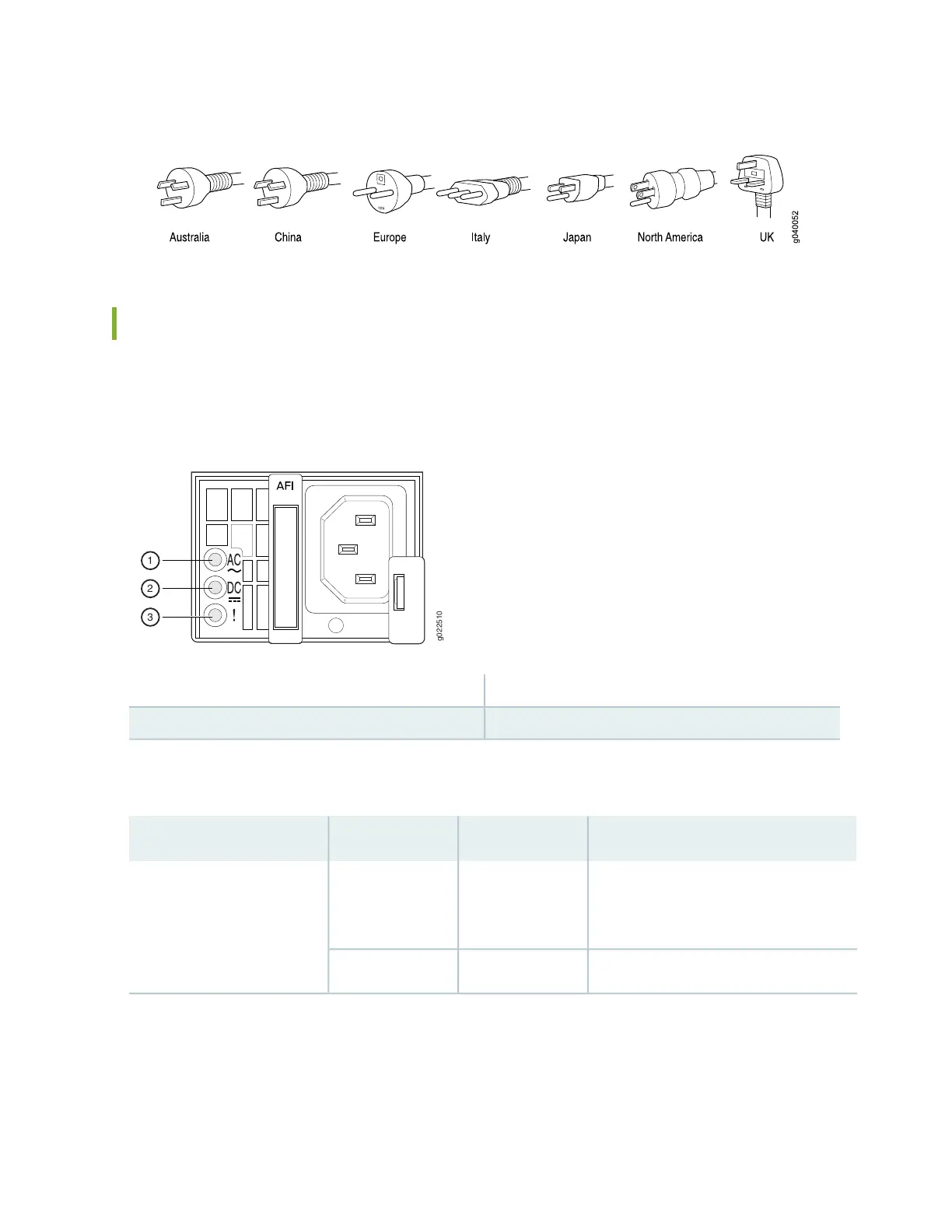

Figure 20: AC Plug Types
AC Power Supply LEDs in EX4650 Switches
Figure 21 on page 46 shows the location of the LEDs on an AC power supply for EX4650 switches.
Figure 21: LEDs on AC power supply for EX4650 switches
g022510
1
2
3
3—1— FaultAC OK
2—DC OK
Table 17 on page 46 describes the AC power supply LEDs.
Table 17: AC Power Supply LEDs in EX4650 Switches
DescriptionStateColorLED
The power supply is disconnected from
power, or power is not coming into the
power supply.
OffUnlitAC OK
Power is coming into the power supply.On steadilyGreen
