Connecting the EX4650 to External Devices
IN THIS SECTION
Connecting a Device to a Network for Out-of-Band Management | 98
Connecting a Device to a Management Console by Using an RJ-45 Connector | 99
Connecting a Device to a Network for Out-of-Band Management
You can monitor and manage these devices by using a dedicated management channel. Each device has
a management port to which you can connect an Ethernet cable with an RJ-45 connector. Use the
management port to connect the device to the management device.
Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. Figure 41 on page 98
shows the RJ-45 connector of the Ethernet cable supplied with the device.

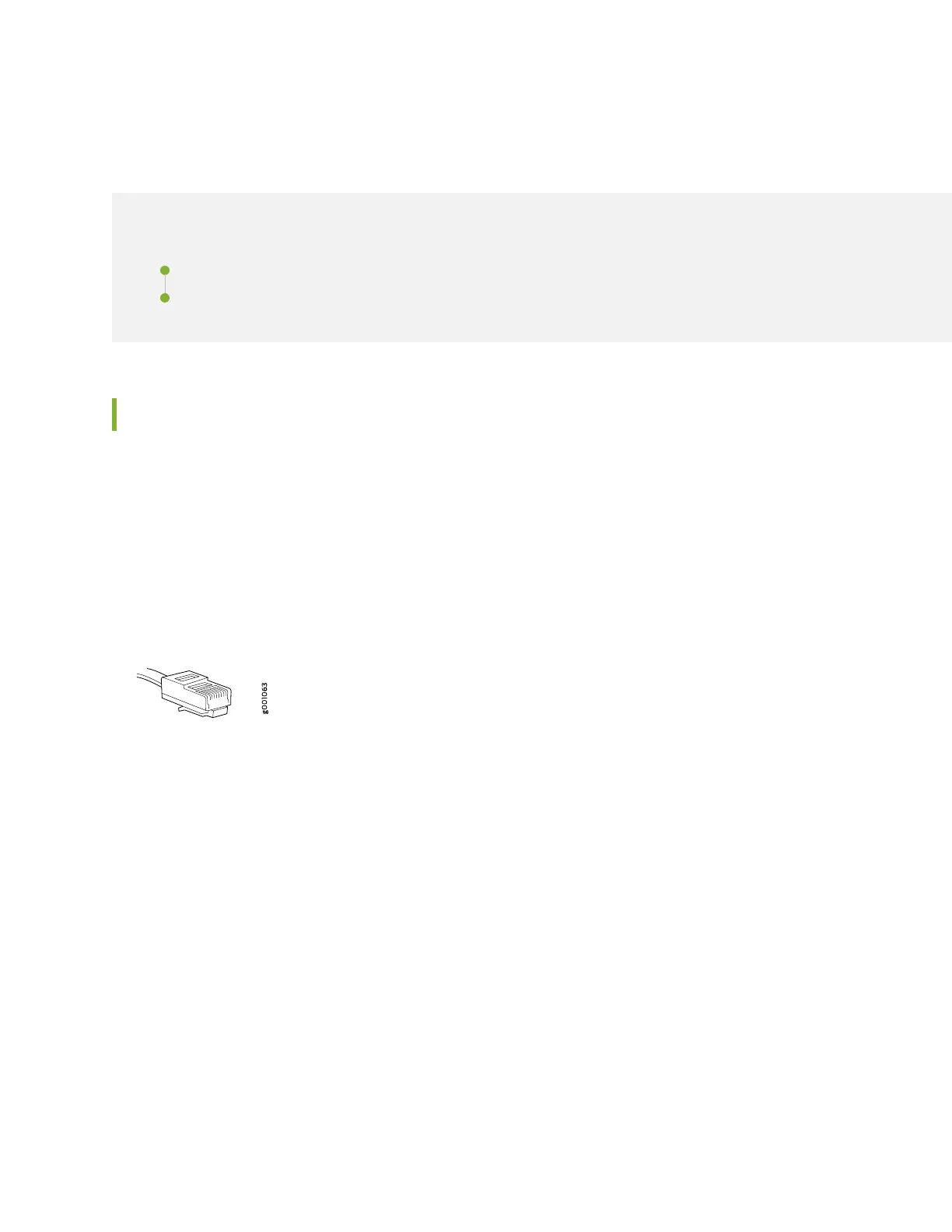

Figure 41: RJ-45 Connector on an Ethernet Cable
To connect a device to a network for out-of-band management (see Figure 42 on page 99):
1. Connect one end of the Ethernet cable to the management port (labeled MGMT or ETHERNET) on
the device.
2. Connect the other end of the Ethernet cable to the management device.
98

Juniper EX4650 Series Specifications

General

Cooling	Front-to-back or back-to-front airflow
Rack Units	1U
MAC address table size	288, 000 entries
Memory	16 GB
Storage	64 GB SSD
Power Supply	Dual redundant, hot-swappable
Junos OS	Supported
Jumbo frames	9216 bytes
Operating temperature	0°C to 40°C (32°F to 104°F)
Input voltage	AC: 100-240V
Fans	Hot-swappable, redundant
Operating humidity	5% to 90% (non-condensing)
Ports	48 x 10GbE SFP+/SFP28 ports 8 x 40GbE QSFP+/100GbE QSFP28 ports
