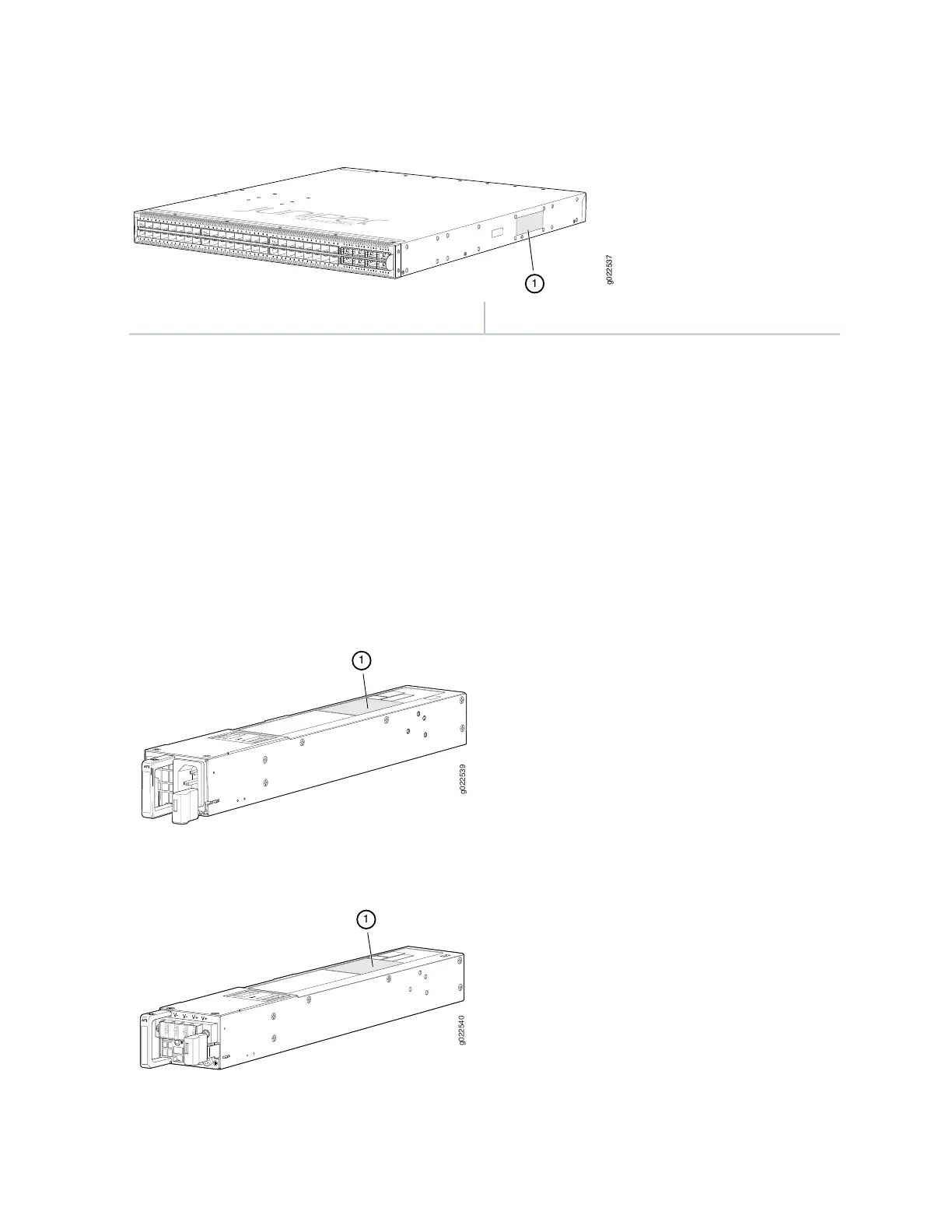

Figure 71: Location of the Chassis Serial Number ID Label on QFX5120-48Y Switches
1—Chassis Serial Number
Locating the Serial Number ID Labels on FRUs in a QFX5120 Switch
The power supplies and fan module installed in QFX5120 switches are field-replaceable units (FRUs).
For each of these FRUs, you must remove the FRU from the switch chassis to see the FRU’s serial number
ID label.
•
Power Supply—The serial number ID label is on the top of the power supply. To see the location of the
serial number ID label on the AC and DC power supplies, see Figure 73 on page 153 and
Figure 73 on page 153.
Figure 72: Location of the Serial Number ID Labels on QFX5120-48Y AC Power Supply
Figure 73: Location of the Serial Number ID Label on QFX5120-48Y DC Power Supply
