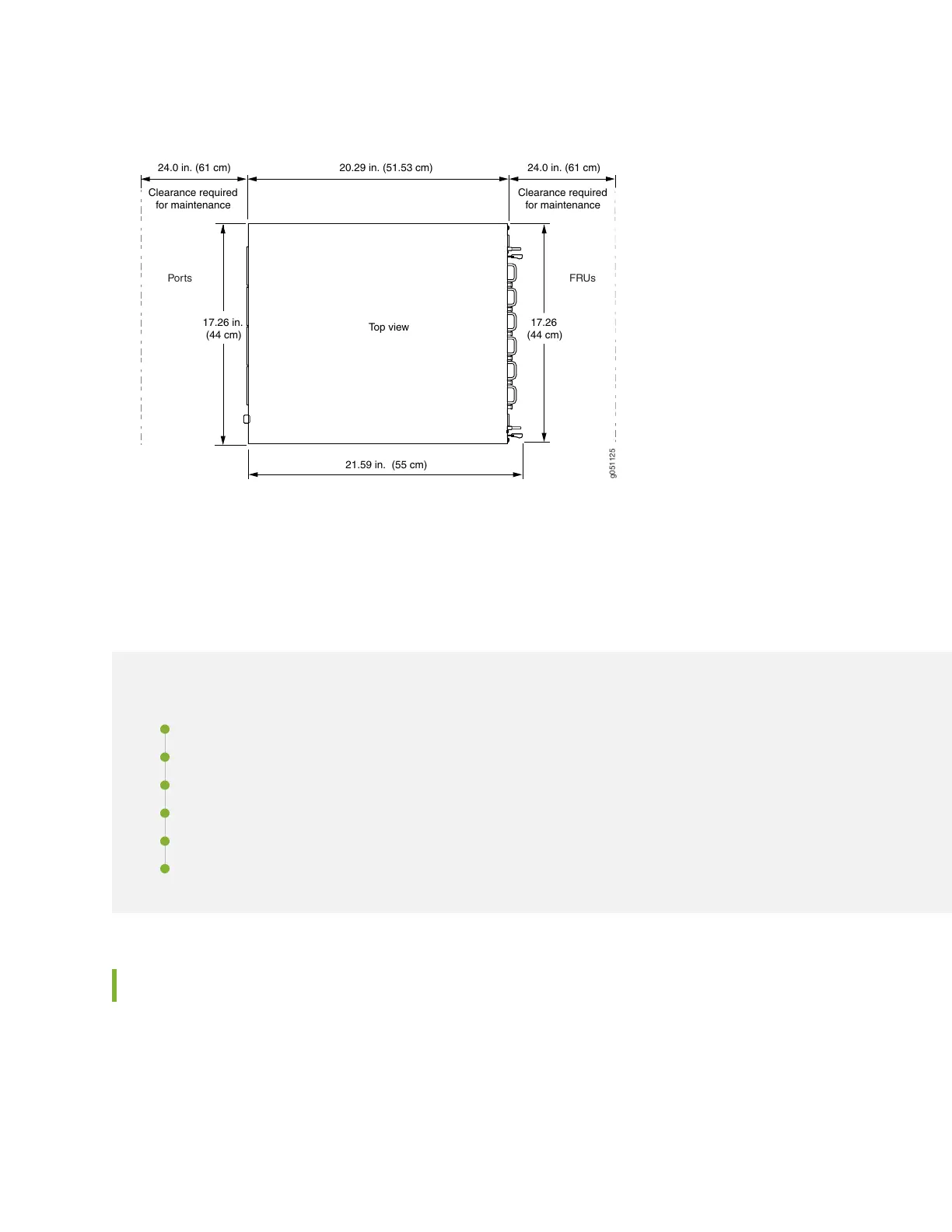

Figure 36: QFX5120-32C Switch - Clearance Requirements for Airflow and Hardware Maintenance
g051125
Top view
20.29 in. (51.53 cm)
17.26 in.
(44 cm)
17.26
(44 cm)
Ports FRUs
21.59 in. (55 cm)
24.0 in. (61 cm)
Clearance required
for maintenance
Clearance required
for maintenance
24.0 in. (61 cm)
QFX5120 Network Cable and Transceiver Planning
IN THIS SECTION
Pluggable Transceivers Supported on QFX5120 Switches | 73
SFP28 Direct Attach Copper Cables for QFX5120 Switches | 74
QSFP28 Direct Attach Copper Cables for QFX5120 Switches | 76
Cable Specifications for QSFP+ and QSFP28 Transceivers on QFX5120 Switches | 77
Calculating the Fiber-Optic Cable Power Budget for QFX Series Switches | 78
Calculating the Fiber-Optic Cable Power Margin for QFX Series Switches | 79
Pluggable Transceivers Supported on QFX5120 Switches
QFX5120 switches support SFP, SFP+, SFP28, QSFP+, and QSFP28 transceivers. You can find the list of
transceivers supported on QFX5120 switches and information about those transceivers at the Hardware
Compatibility Tool page for QFX5120.
