QFX5200-32C and QFX5200-32C-L Chassis Status LEDs
The QFX5200-32C and QFX5200-32C-L have four status LEDs on the FRU side of the chassis, next to
the management ports (see Figure 12 on page 25).

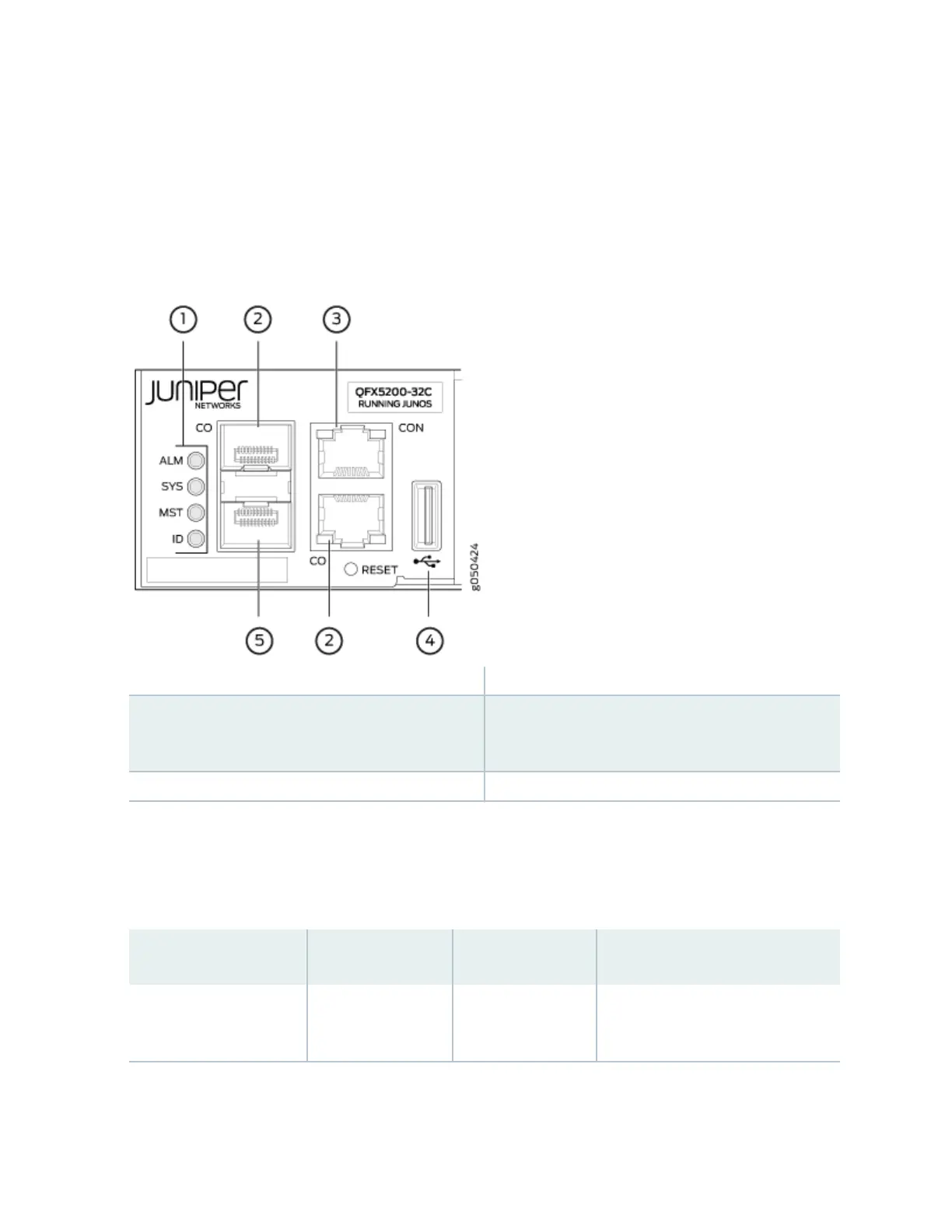

Figure 12: Locang Chassis Status LEDs on a QFX5200-32C and QFX5200-32C-L
1—
Status LEDs
4—
USB port
2—
em0–RJ-45 (10/100/1000 BASE-T)
management Ethernet port (C0)
5—
em1–SFP management Ethernet port (C1)
Cage (socket for either 10/100/1000 Base-T
RJ45 SFP or 1GbE ber SFP)
3—
RJ-45 console port (CON) )
Table 13 on page 25 describes the chassis status LEDs on a QFX5200-32C and QFX5200-32C-L, their
colors and states, and the status they indicate. You can view the colors of the three LEDs remotely
through the CLI by issuing the operaonal mode command show chassis lcd.
Table 13:
Interpreng Chassis Status LEDs on a QFX5200-32C and QFX5200-32C-L
Name Color State Descripon
ALM–Alarm or beacon Unlit O The switch is halted or there is no
alarm.
25
