Juniper QFX5200 User Manual

2—
Output LED

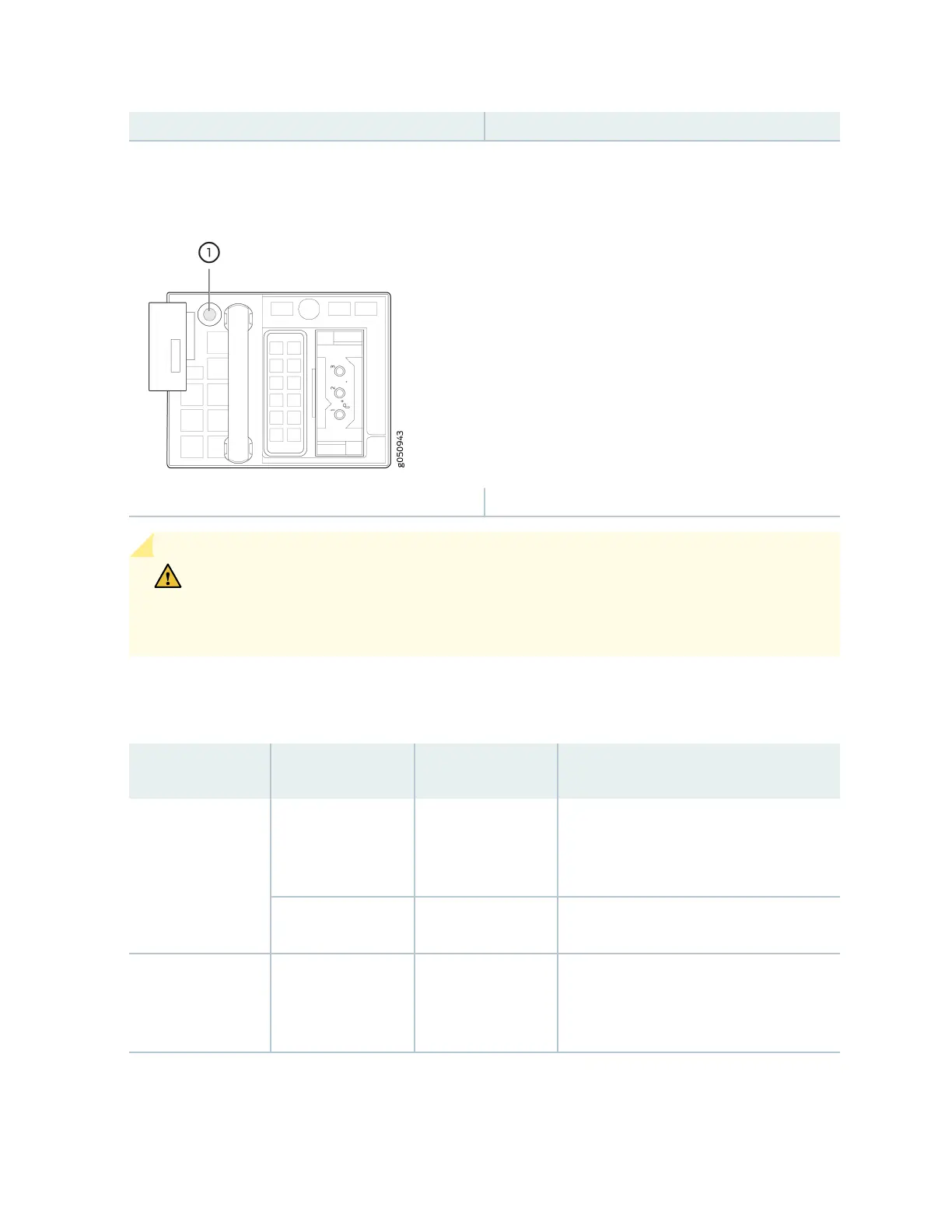

Figure 33: DC Power Supply Faceplate on a QFX5200-48Y
1—
Bi-colored LED
CAUTION: The V+ terminals are shunted internally together, as are the V- terminals.
The same polarity terminal can be wired together from the same source to provide an
addional current path in a higher power chassis. Do not connect the terminals to
dierent sources.
Table 23 on page 53 and Table 24 on page 54 describe the LEDs on the DC power supplies.
Table 23: DC Power Supply LEDs on a QFX5200-32C
Name Color State Descripon
Input Unlit O The power supply is disconnected from
power, or power is not coming into the
power supply.
Green On steadily Power is coming into the power supply.
Output Unlit O The power supply is disconnected from
power, or the power supply is not sending
out power correctly.
53
