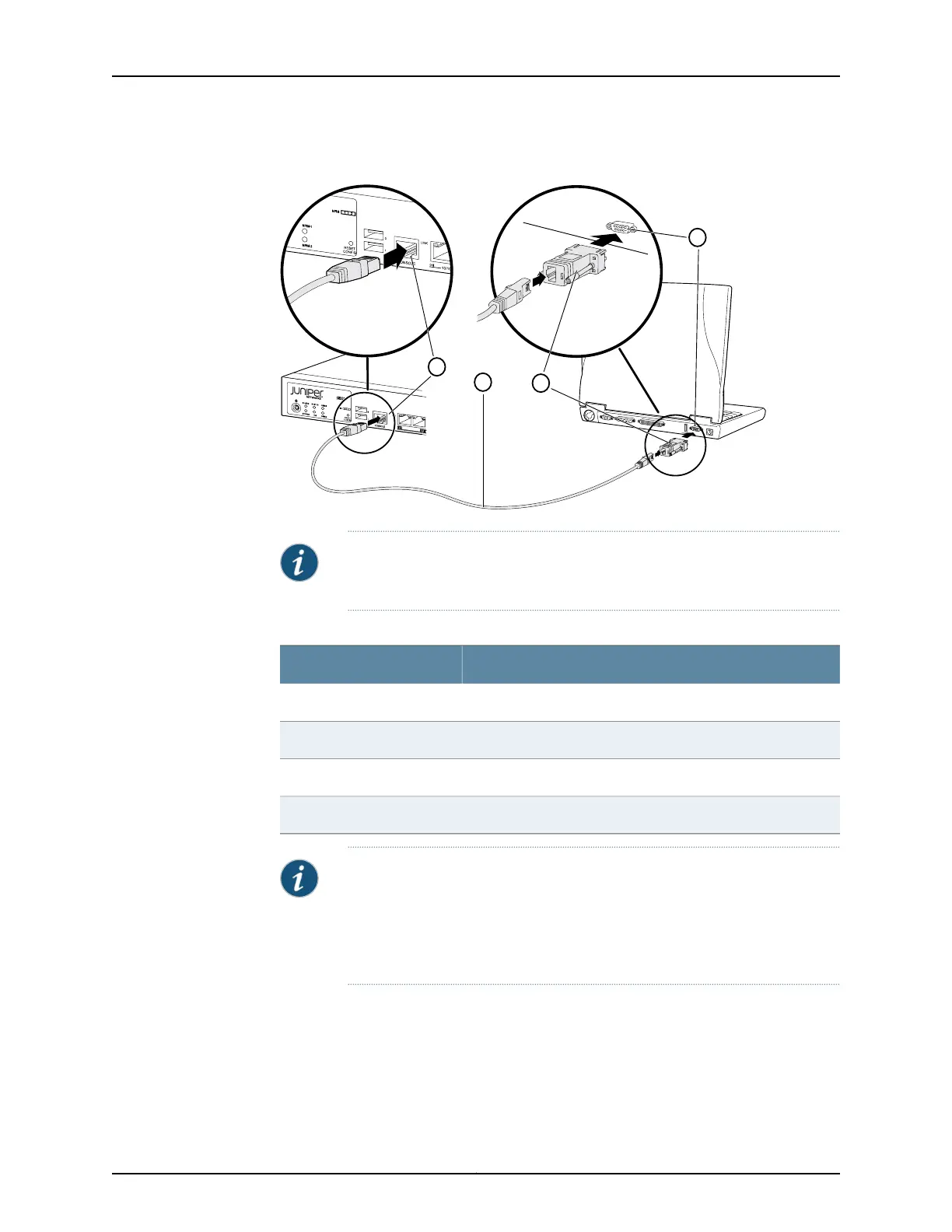

Figure 20: Connecting to the Console Port on an SRX220 Services Gateway
NOTE: The numbers in Figure 20 on page 103 correspond to the numbers in
Table 32 on page 103.
Table 32: Connecting to the Console Port on an SRX220 Services Gateway
ComponentNumber
Console port on services gateway1
RJ-45 cable2
DB-9 to RJ-45 adapter3
Serial port on management device4
NOTE: Figure 20 on page 103 shows a connection to a local management
device. A remote connection to the services gateway through a modem
requires the cable and connector shown (provided in the services gateway
accessory box), plus a DB-9 male to DB-25 male (or similar) adapter for your
modem, which you must purchase separately.
To connect to the CLI using a local management device through the console port on the
services gateway:
1. Turn off power to the services gateway.
2. Turn off power to the management device, such as a PC or laptop computer, that you
are using to access the CLI.
