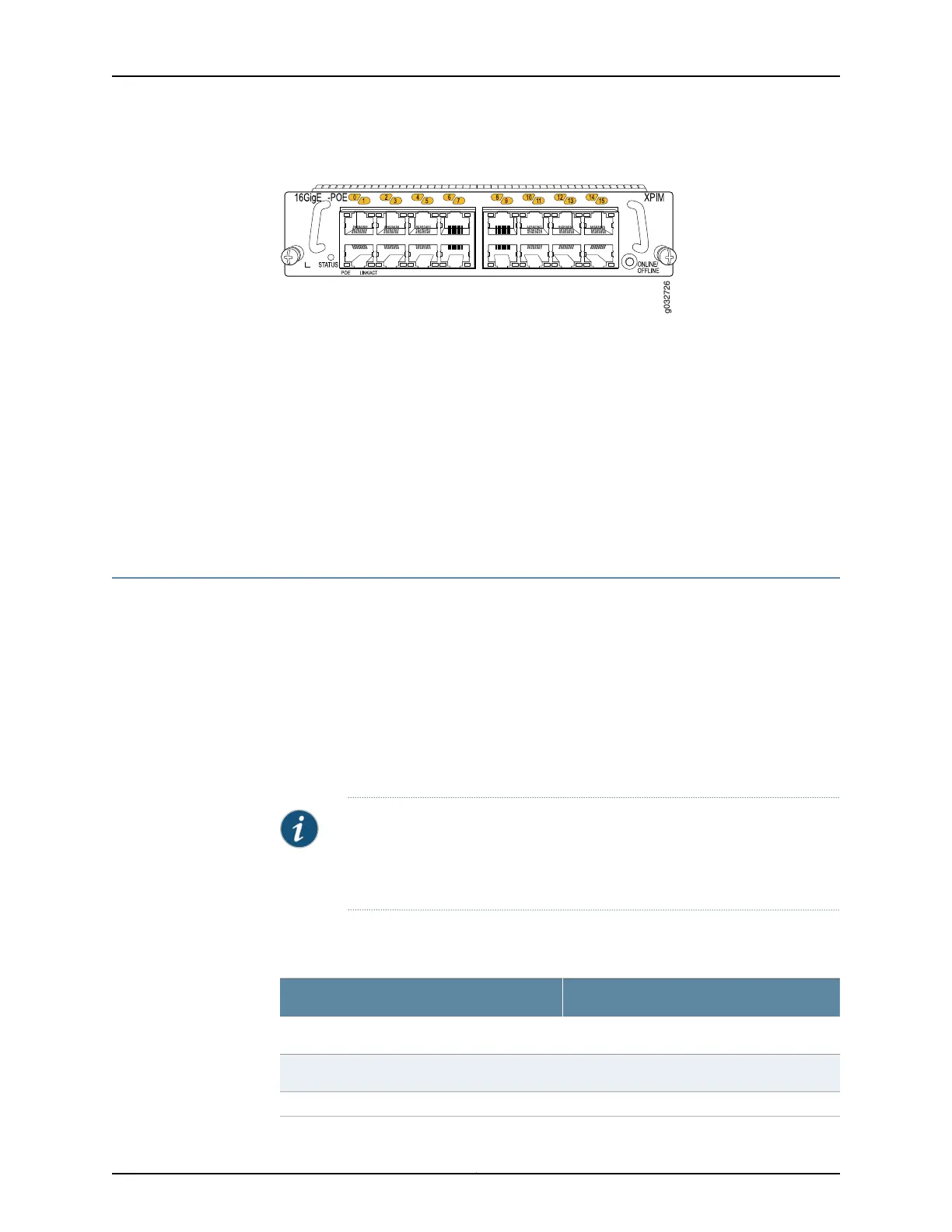

Figure 3: Example of a Double-High, Single-Wide XPIM
g032726
Related
Documentation
MTU Default and Maximum Values for Physical Interface Modules on page 8•
• Power over Ethernet Support on SRX550 High Memory Services Gateway Interfaces
on page 10
• SRX300 Series and SRX550 High Memory Services Gateway Interfaces Power and
Heat Requirements on page 12
• Interfaces Port Naming Conventions for the SRX300 Series and SRX550 High Memory
Services Gateways on page 6
Interfaces Port Naming Conventions for the SRX300 Series and SRX550 High Memory
Services Gateways
When configuring a port on a Mini-Physical Interface Module (Mini-PIM) or
Gigabit-Backplane Physical Interface Module (GPIM), you must know the slot and port
number assigned to the Mini-PIM or GPIM. The slot number identifies the slot on the
services gateway in which you insert the Mini-PIM or GPIM, and is typically named 1, 2, 3,
and so on. The port number is the port on the Mini-PIM or GPIM that is being configured.
The name of each network interface has the following format to identify the physical
device that corresponds to a single physical network connector:
type-slot/pim/port
NOTE: For SRX Series Services Gateways, pim equals 0 for the port-naming
convention.
For the LTE Mini-PIM, port equals 0.
Table 5 on page 6 lists the typical interface types and interface numbers.
Table 5: Interface Port Number Examples
Interface Number ExampleInterface Type
t1–1/0/0T1
e1–1/0/0E1
se–1/0/0Serial
Copyright © 2017, Juniper Networks, Inc.6
SRX300 Series and SRX550 High Memory Gateway Interface Modules Reference

Juniper SRX300 Series Specifications

General

Memory	4 GB
CPU	Intel Atom
Storage	8 GB
Operating Temperature	32°F to 104°F (0°C to 40°C)
Humidity	10% to 90% noncondensing
