8-Port Gigabit Ethernet SFP XPIM
•
8-Port Gigabit Ethernet SFP XPIM Overview on page 29
•
8-Port Gigabit Ethernet SFP XPIM Components on page 30
•
8-Port Gigabit Ethernet SFP XPIM Hardware Specifications on page 31
•
8-Port Gigabit Ethernet SFP XPIM LEDs on page 31
•
8-Port Gigabit Ethernet SFP XPIM Supported Transceivers on page 32
•
8-Port Gigabit Ethernet SFP XPIM Network Interface Specifications on page 34
8-Port Gigabit Ethernet SFP XPIM Overview
The ports of the 8-Port Gigabit Ethernet small form-factor pluggable Gigabit-Backplane
Physical Interface Module (SFP XPIM) can be used for connecting to Ethernet WAN
service as well as for local server connectivity at Gigabit Ethernet speeds. The XPIM
enables Layer 2 line-rate Gigabit switching and system-processor dependent Layer 3
service with connection of up to eight SFP Gigabit Ethernet ports. The 8-Port Gigabit
Ethernet SFP XPIM complements the on-board 10/100/1000 Mbps Ethernet interfaces
with extended WAN connectivity. It supports a variety of transceivers. This XPIM can be
used in copper and optical environments to provide maximum flexibility when upgrading
from an existing infrastructure to Metro Ethernet.
The 8-Port Gigabit Ethernet XPIM can be installed in any GPIM slot on the SRX550 High
Memory Services Gateways.

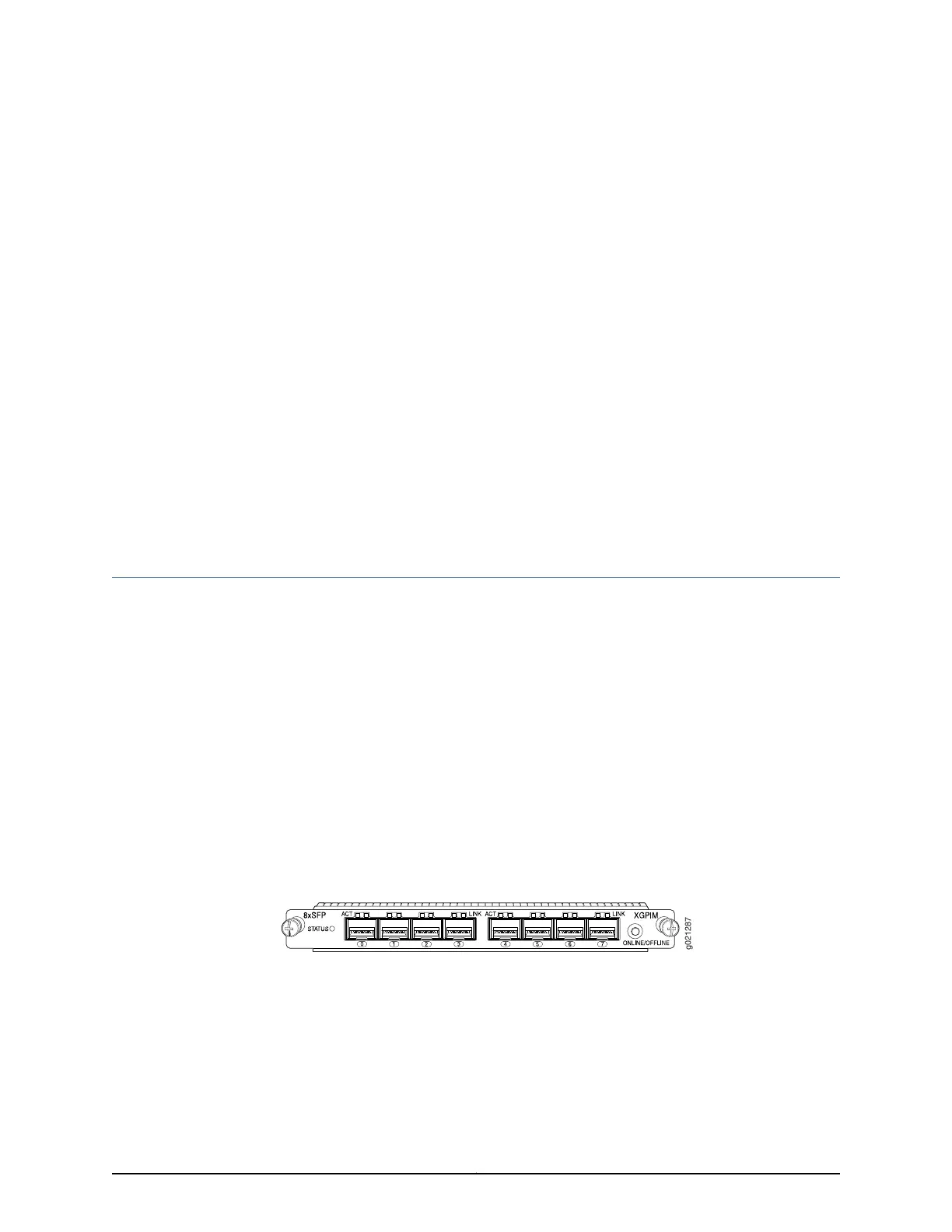

Figure 7 on page 29 shows the front panel of the 8-Port Gigabit Ethernet SFP XPIM.
Figure 7: 8-Port Gigabit Ethernet SFP XPIM Front Panel
g021287
The 8-Port Gigabit Ethernet small form-factor pluggable XPIM (SFP XPIM) has the
following key features:
•
8 triple-speed (10/100/1000 Mbps) Ethernet ports, single-high card
•
PoE not supported
•
PCI-Express interface for control and management
