1-Port T1/E1 Mini-Physical
(SRX-MP-1T1E1-R) Interface Module
•
1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Overview on page 19
•
1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Hardware
Specifications on page 20
•
1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) LEDs on page 21
•
1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Supported Loopback
Diagnostics on page 21
•
1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Network Interface
Specifications on page 22
1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R) Overview
The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) provides the physical
connection to T1 or E1 network media types and also performs T1 or E1 framing and
line-speed signaling.

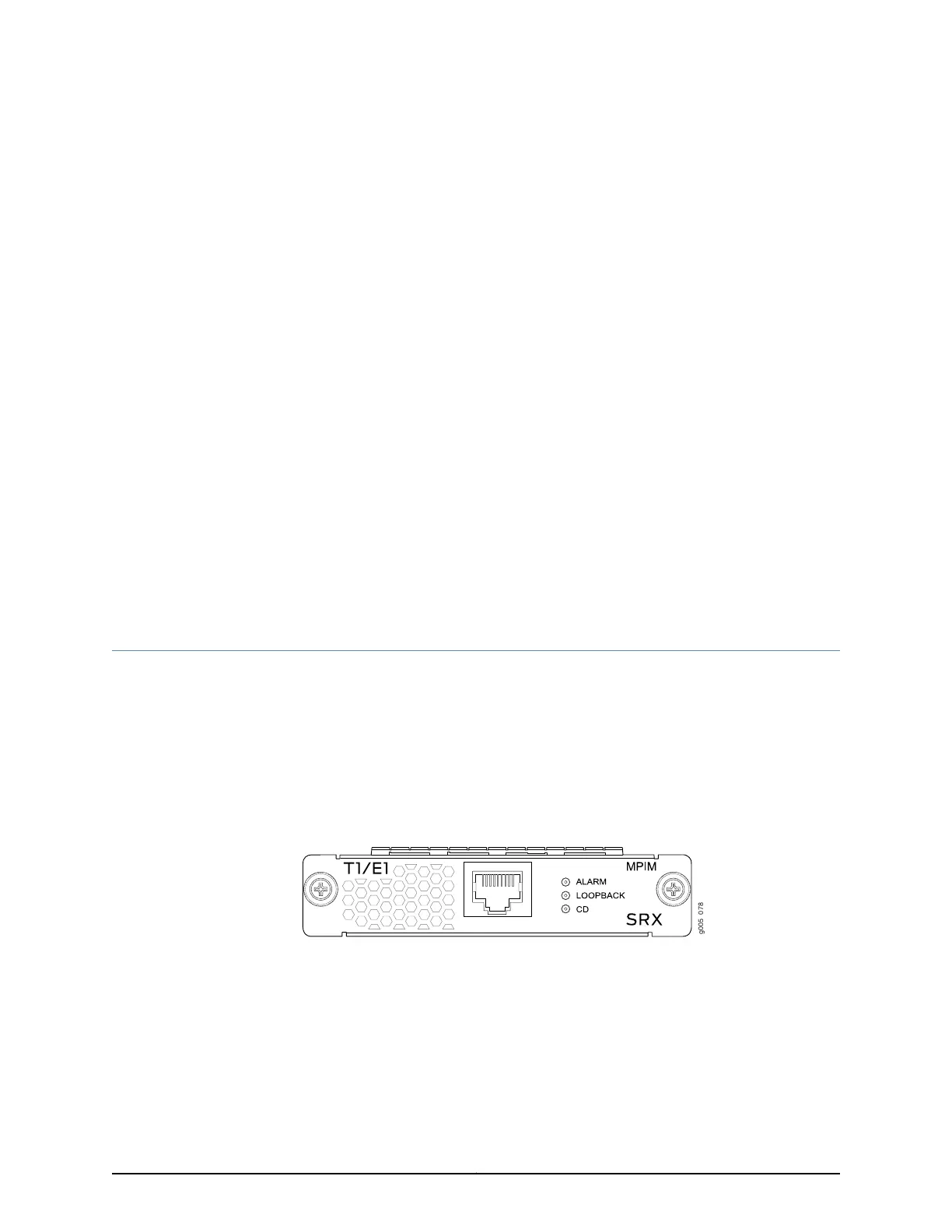

Figure 5 on page 19 shows the front panel of the 1-Port T1/E1 Mini-PIM (SRX-MP-1T1E1-R).
Figure 5: 1-Port T1/E1 Mini-Physical Interface Module (SRX-MP-1T1E1-R)
Front Panel
g005 0 78
The 1-Port T1/E1 Mini-Physical Interface Module (Mini-PIM) provides the following key
features:
•
Channel service unit/data service unit (CSU/DSU) to eliminate the need for a separate
external device
•
56-Kbps and 64-Kbps operating modes
