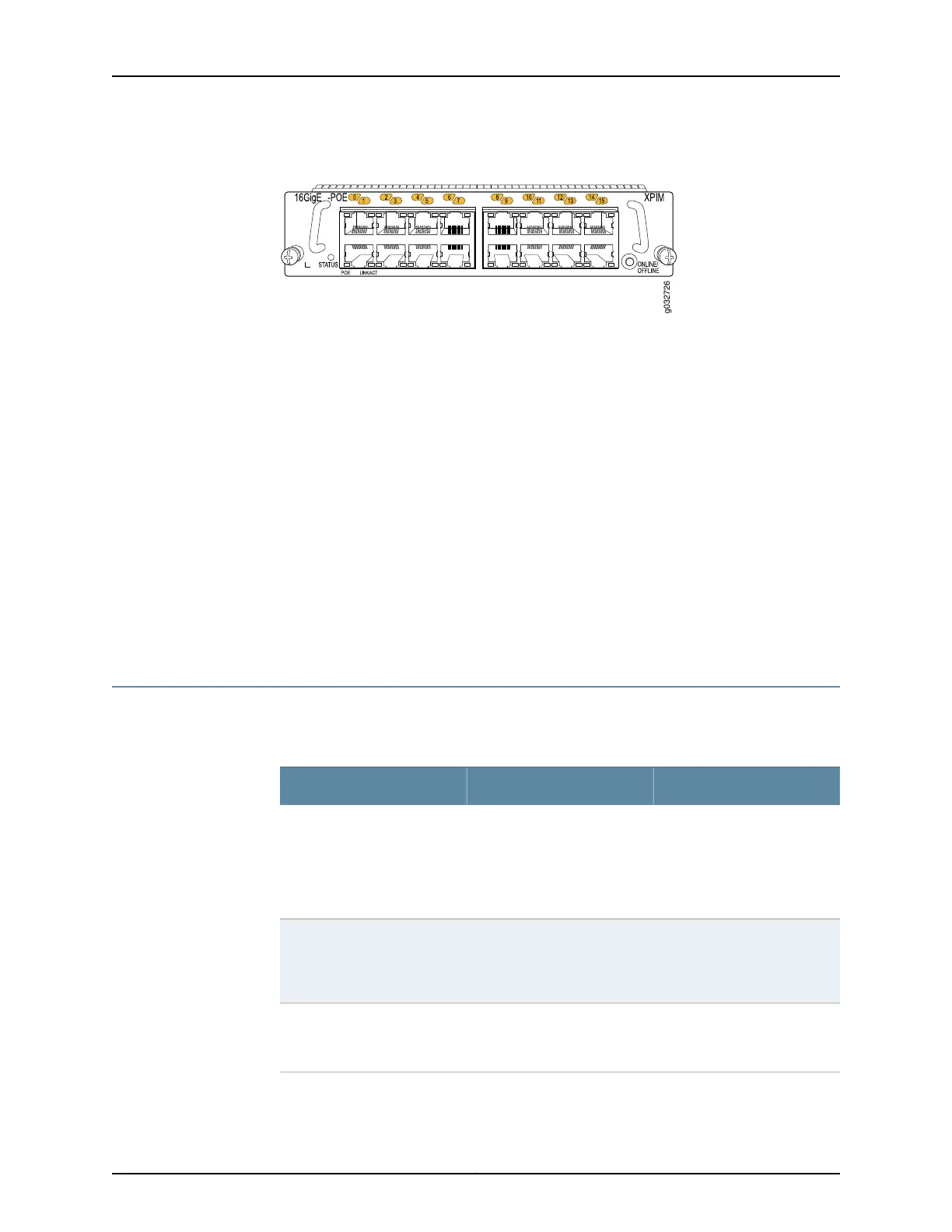

Figure 8: 16-Port Gigabit Ethernet with PoE XPIM
g032726
The 16-Port Gigabit Ethernet XPIM has the following key features:
•
16 triple-speed (10/100/1000 Mbps) Ethernet ports, double-high card
•
PoE support for all ports
•
PCI-Express interface for control and management
•
I2C interface for module monitor and identification
•
Maximum module power of 40 W without PoE
•
JTAG support for boundary scan test
Related
Documentation
16-Port Gigabit Ethernet XPIM (PoE) Components on page 36•
• 16-Port Gigabit Ethernet XPIM (PoE) Hardware Specifications on page 37
• 16-Port Gigabit Ethernet XPIM (PoE) LEDs on page 37
16-Port Gigabit Ethernet XPIM (PoE) Components
The 16-Port Gigabit Ethernet XPIM contains the components listed in Table 26 on page 36.
Table 26: 16-Port Gigabit Ethernet XPIM Components
DescriptionLocationComponent
Use the XPIM
ONLINE/OFFLINE button to
gracefully shut down the XPIM.
Right side of the XPIMXPIM ONLINE/OFFLINE button
The SRX550 High Memory
Services Gateway does not
support hot-swappable
functionality for GPIMs.
Each port on the 16-Port
Gigabit Ethernet with PoE
XPIM supports Power over
Ethernet (PoE).
Middle of the XPIM16 PoE ports labeled 0 to 15
Use the captive screws to hold
the XPIM in place in the
services gateway.
One on each side of the XPIMCaptive screws
Copyright © 2017, Juniper Networks, Inc.36
SRX300 Series and SRX550 High Memory Gateway Interface Modules Reference

Juniper SRX320 Specifications

General

Firewall throughput	1000 Mbit/s
Number of users	50 user(s)
Quality of Service (QoS) support	Yes
Mobile VPN IPSec	250
IPS/IDS throughput	100 Mbit/s
USB 2.0 ports quantity	1
Connectivity technology	Wired
SFP module slots quantity	2
Ethernet LAN (RJ-45) ports	6
Internal memory	4000 MB
Flash memory	8000 MB
Storage media type	Flash
Power consumption (typical)	27 W
Heat dissipation	157 BTU/h
Concurrent connections	64000
Mean time between failures (MTBF)	284700 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Routing protocols	BGP, CLNS, IS-IS, OSPF, RIP-1, RIP-2

Weight and Dimensions

Weight	1510 g
Dimensions (WxDxH)	299.9 x 43.9 x 191 mm
