3—Hardware Setup
10 Fusion Catalyst 4000 Getting Started Guide
4. Connect the display cables to the proper graphics output
connectors on the rear of the system. Display devices in a wall
are numbered top left to bottom right counting across to the
right and moving down.

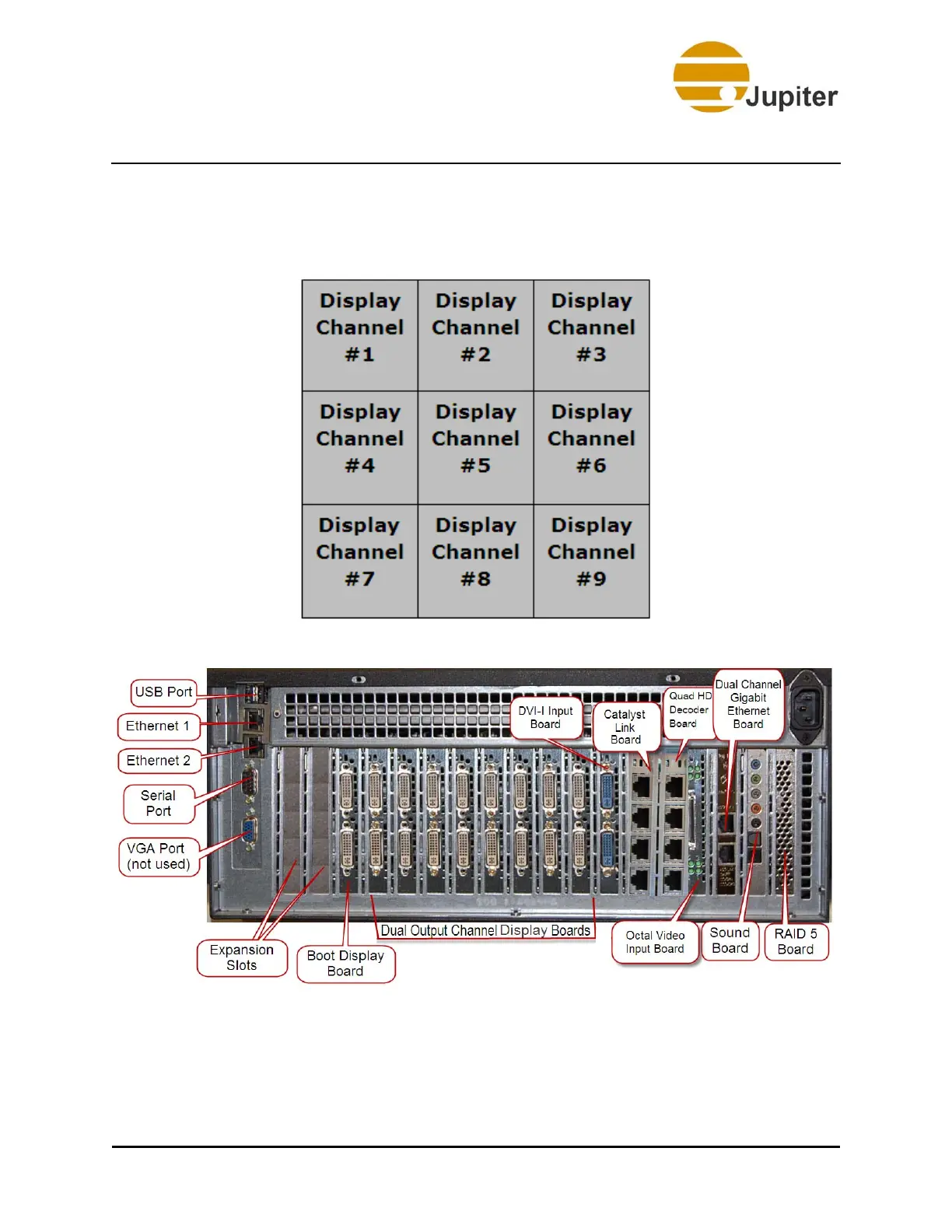

Figure 2 - Default Display Numbering, 3 x 3 Array
Figure 3 - Typical Fusion Catalyst 4000 Rear Chassis
