Jupiter Fusion Catalyst 4000 User Manual

3—Hardware Setup
14 Fusion Catalyst 4000 Getting Started Guide
3.3 CatalystLink Input Board
The CatalystLink board provides additional input capability from PixelNet
nodes, including DVI-I, 3G SDI, and HD component nodes.
• Each CatalystLink card features 4 PixelNet ports and supports up
to 8 PixelNet Input nodes
• Supports 4 destination windows per card

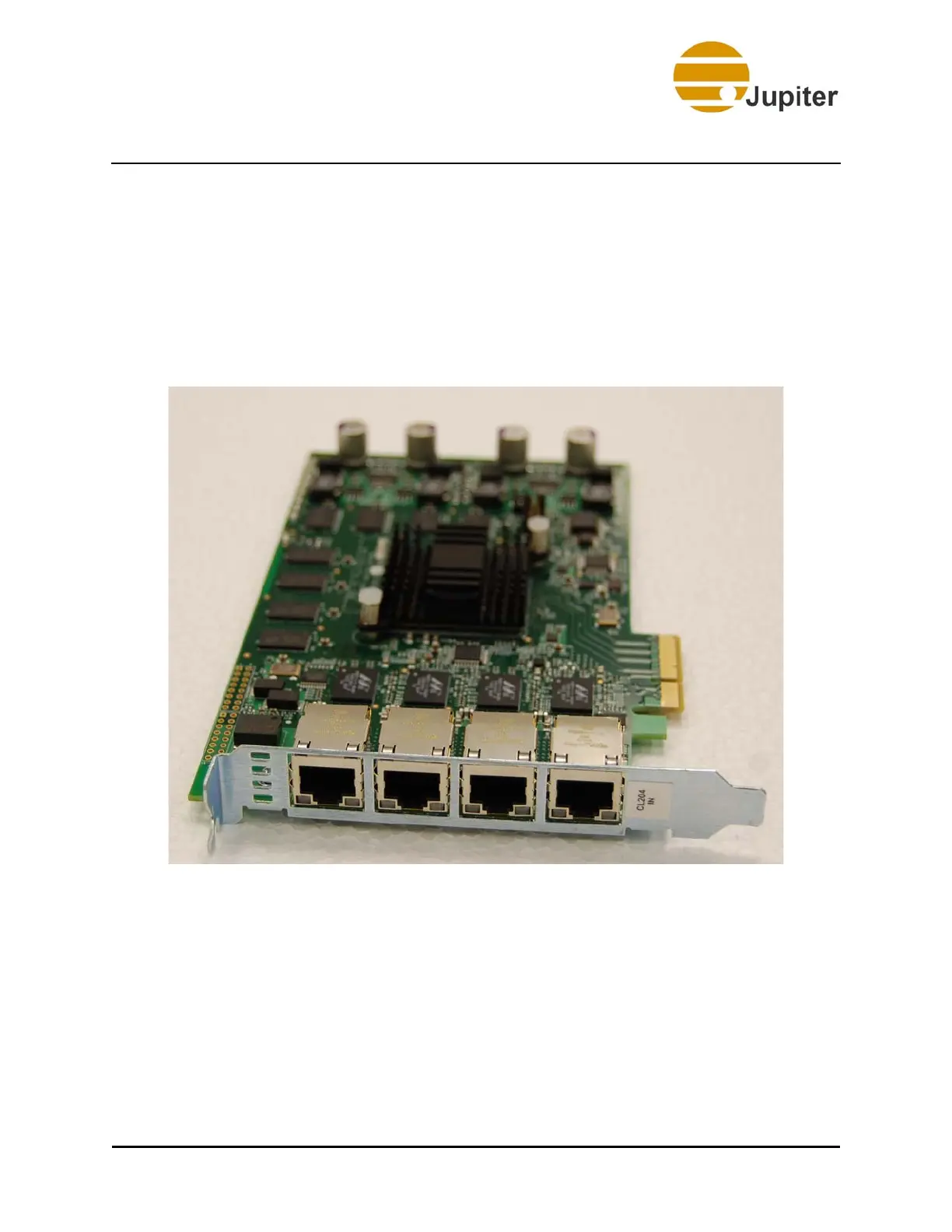

Figure 7 - CatalystLink Input Board

Jupiter Fusion Catalyst 4000 Specifications

General

Brand	Jupiter
Model	Fusion Catalyst 4000
Category	Controller
Language	English
