5—ControlPoint Software
36 Fusion Catalyst 4000 Getting Started Guide
5.3 Verifying the Device Map
In order for your system to operate properly, the Device Map must
correctly describe your system. The following figure shows a
representation of the Device Map.
1. Open the Device Map by starting the VSConfig dialog.
2. Click the Device Map button.

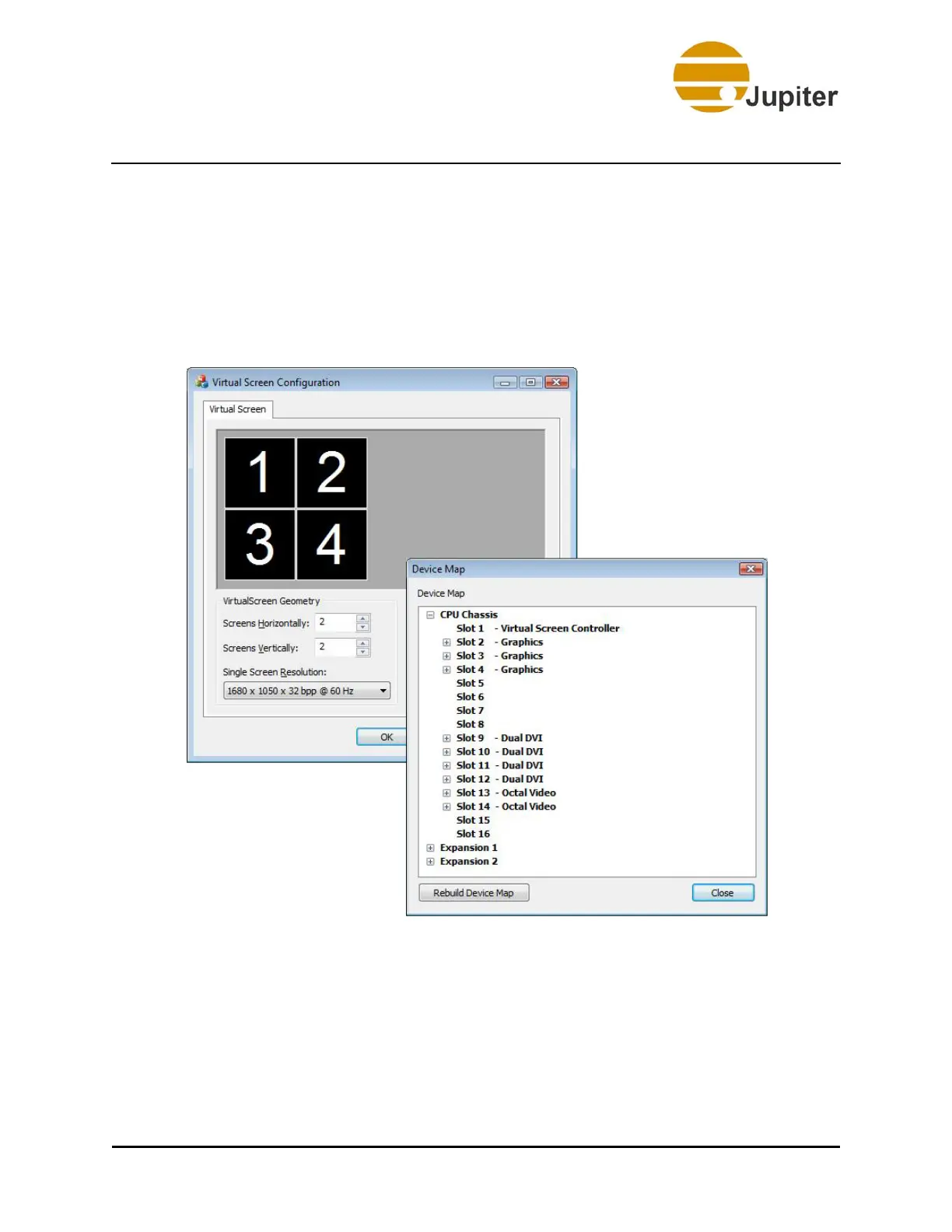

Figure 28 - Device Map
The Device Map dialog appears, displaying a tree-list of the system
devices. If the dialog does not describe your system properly, go to the
Windows Device Manager and check that all Fusion Catalyst Devices are
correctly installed.
