JVC DLA-X95R

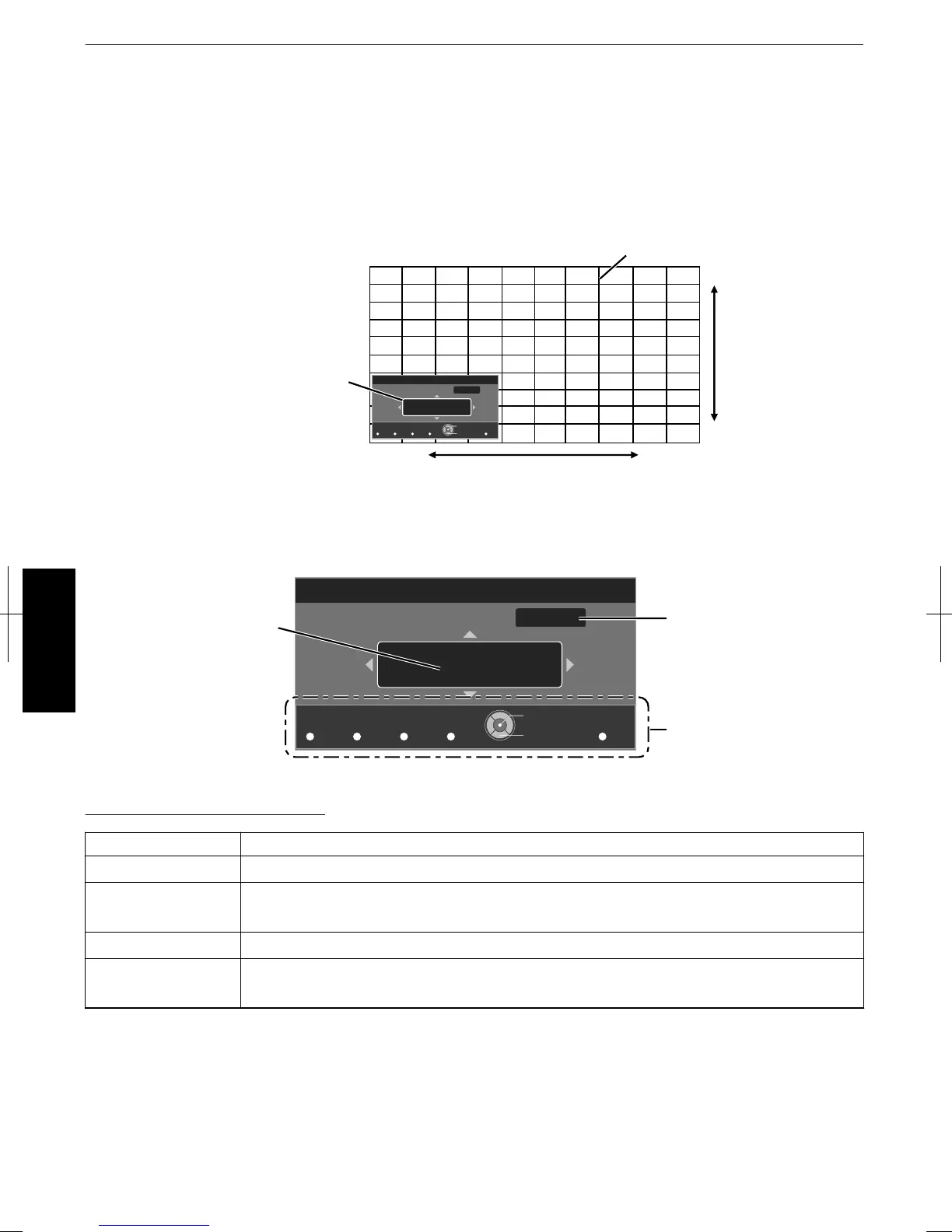

Whole Adjust (Pixel) Operation Procedure D C B
For making general adjustments to slight color fringing in the horizontal/vertical directions of the video image.
A
Set “Adjust Area” to “Whole”
B
Select “Adjust Color” and “Adjust Pattern Color”
C
Select “Adjust(Pixel)”, and press the [OK] button
0
The selected adjustment pattern and Adjustment (Pixel) window are displayed.
.
Color A.
GAMMA
BACK
ADJUST.
COLOR.
Color P.
COLOR.
A. Area
PIC.
TEMP P. FILE. ADJ.
H 0
V 0
Back
Operate
Select
Red
Whole Adjust (Pixel)
Pixel Adjust
V (Vertical)
H (Horizontal)
Adjustment (Pixel) Window
Adjustment Pattern
D
Press the [OK] button to enter the Adjustment mode
E
Use the [JKH I]
keys to move and adjust the pixels in the vertical and horizontal directions across the entire screen.
0
The adjustment setting appears at the center of the Adjustment (Pixel) window.
.
Color A.
GAMMA
BACK
ADJUST.
COLOR.
Color P.
COLOR.
A. Area
PIC.
TEMP P. FILE. ADJ.
H 0
V 0
Red
Whole Adjust (Pixel)
Pixel Adjust
Back
Operate
Select
Remote Control Operation
Guide
Color for
Adjustment
Pixel Adjustment Setting
F
After adjustment is complete, press the [BACK] button to exit the Adjustment mode
Remote Control Operation Guide
Button Name Description of Operation
[GAMMA] Changes “Adjust Color”.
[COLOR TEMP.] Switches between “Adjust(Pixel)” and “Adjust(Fine)”.
0
Switches to “Adjust(Pixel)” when “Adjust Area” is set to “Zone”.
[COLOR P.FILE] Changes “Adjust Pattern Color”.
[PIC ADJ.] Switches “Adjust Area”.
0
A zone cursor appears on the adjustment pattern when the “Zone” setting is selected.
58
Adjust/Set
