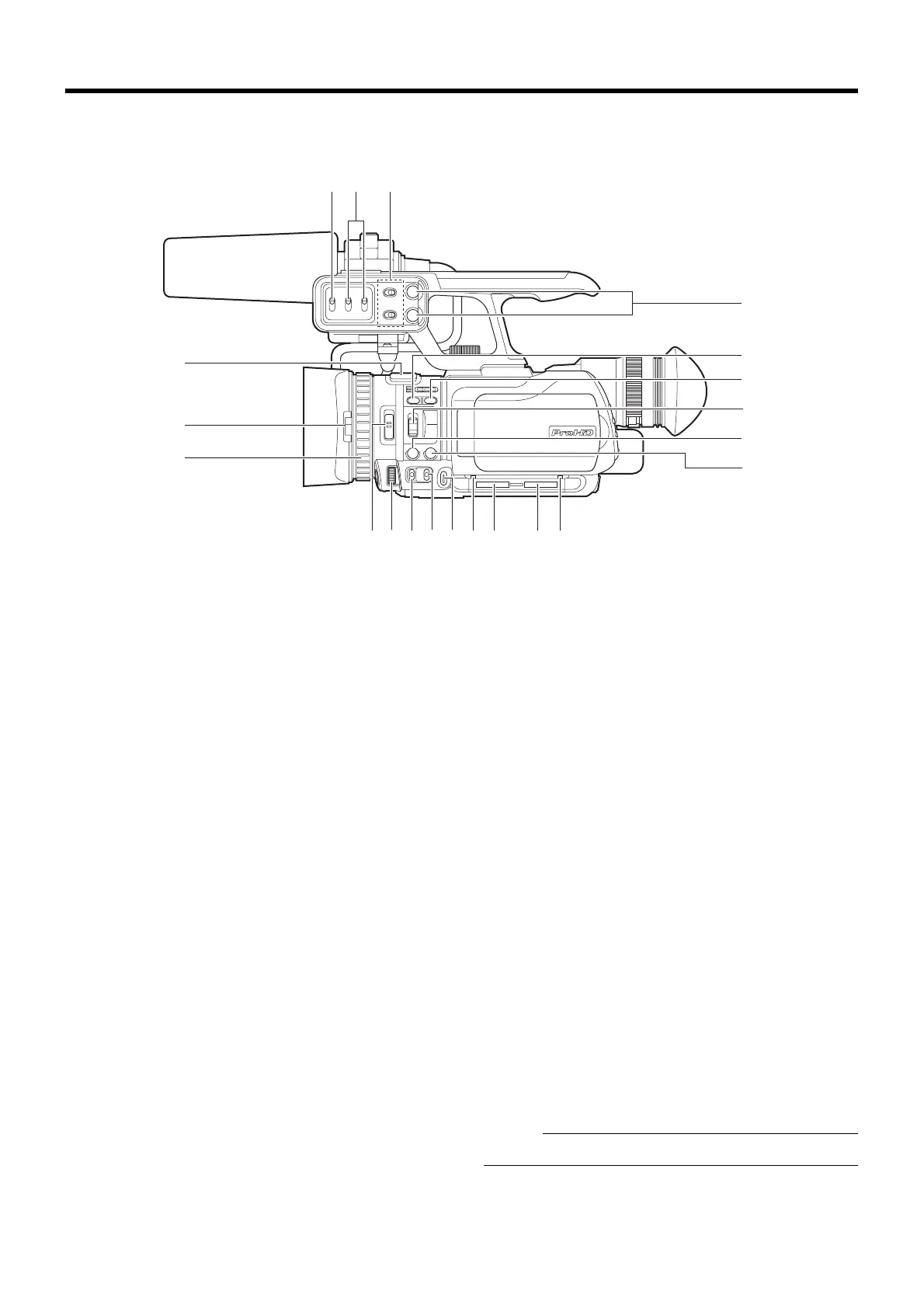

A Built-in microphone (A Page 38)
B
Lens cover switch (
A
Page 18)
C
Manual ring (
A
Page 28)
D
[ND FILTER] switch (
A
Page 30)
Reduces the amount of incident light to 1/10.
E
Iris dial (
A
Page 36)
Enables manual aperture adjustment.
F
[GAIN] Gain switch (
A
Page 35)
For selecting one of the three sensitivity levels.
G
[WHT.BAL] White balance selection switch
(
A
Page 33)
For selecting one of the three types of white balance.
H
[IRIS A/M] Iris mode selection button (
A
Page 36)
Switches between manual and automatic iris.
I
Card slot A status indicator (
A
Page 20)
J
Card slot A (
A
Page 20)
Slot for SDHC/SDXC cards. Open the door to insert the
SDHC/SDXC card.
K
Card slot B (
A
Page 20)
Slot for SDHC/SDXC cards. Open the door to insert the
SDHC/SDXC card.
L
Card slot B status indicator (
A
Page 20)
M
[FULL AUTO] Full Auto mode selection button
(
A
Page 25)
For setting the shooting mode to the Full Auto or Manual
mode.
N
[AF/MF] Focusing mode selection button (
A
Page 25)
For setting the focusing mode to the Auto or Manual mode.
O
[FOCUS/ZOOM] ring switch
For setting the function of the manual ring to focus
(A Page 29) or zoom adjustment (A Page 28).
P
[USER2] User 2 button (
A
Page 19)
A specific feature in the menu setting can be assigned to this
button according to the user’s preference.
Q
[USER1] User 1 button (
A
Page 19)
A specific feature in the menu setting can be assigned to this
button according to the user’s preference.
R
[CH-1/CH-2] CH-1/CH-2 recording level adjustment
knob (
A
Page 38)
For adjusting the audio input level for the CH-1 or CH-2
audio.
S
[CH1/CH2 AUDIO SELECT] CH-1/CH-2 audio selection
switch (
A
Page 38)
For setting the method of adjusting the audio recording level
for the CH-1 or CH-2 audio to the Auto or Manual mode.
T
[AUDIO INPUT 1/2] INPUT1/INPUT2 audio input signal
selection switch (
A
Page 38)
For selecting the input signal for the [INPUT1] or [INPUT2]
terminal.
U
[CH-2 INPUT] CH-2 audio input terminal selection
switch (
A
Page 38)
For selecting whether to input audio signals to CH-2 audio
from the [INPUT1] or [INPUT2] terminal.
Memo :
● [INPUT1] terminal, [INPUT2] terminal: R, S on Page13
CH-2 INPUT
CH-1
3
4
5
2
1
2
3
0
CH-2
AUDIO INPUT
AUTO MANUAL
AUTO MANUAL
USER1
AB
FOCUS
ZOOM
ON
ND
FILTER
OFF
USER2
AF/MF FULL AUTO
AUDIO
SELECT
INPUT1
INPUT2
- LINE -
- MIC -
MIC+48V
INPUT1
INPUT2
GAIN
L-
M-
H-
B-
A-
PRST-
WHT.BAL
IRIS A/M
B
D
C
EFGHIJ K L
A
UT S
R
Q
P
O
N
M
LCD Side
