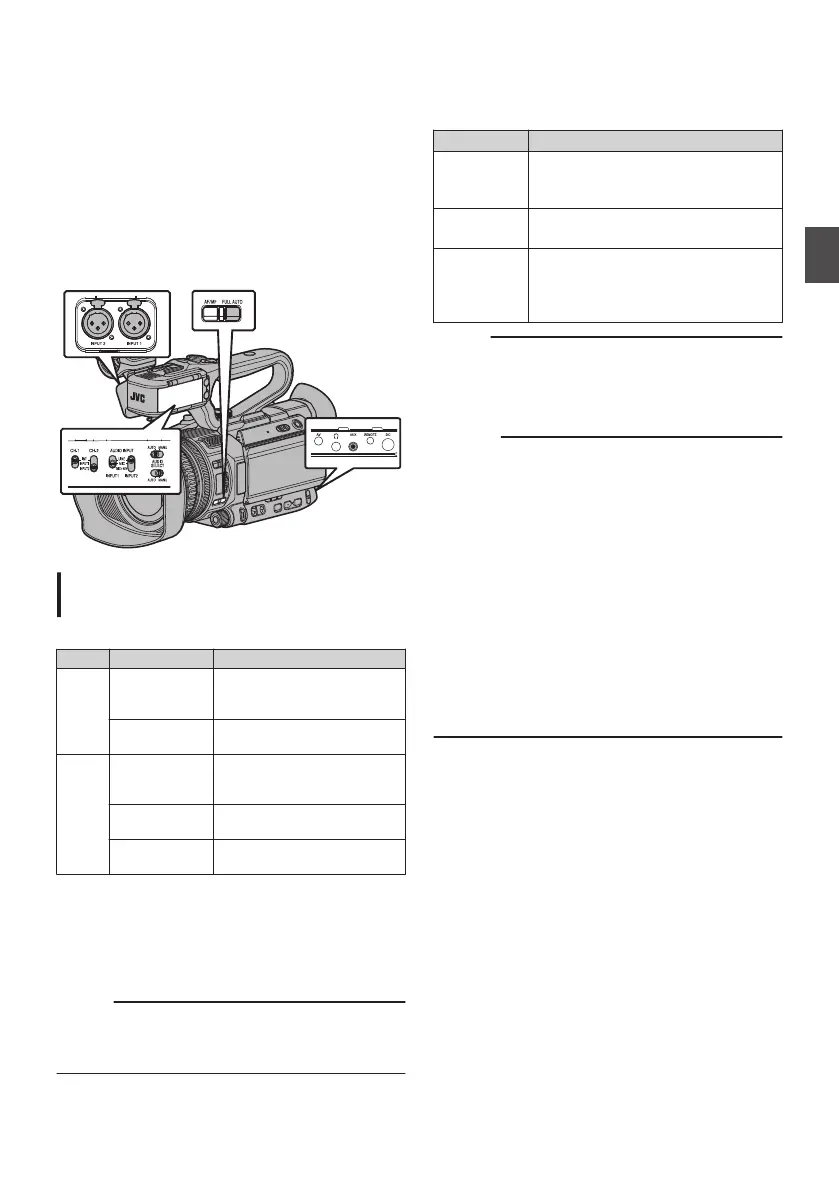

Audio Recording
You can record
audio from the two channels (CH1/
CH2) in synchronization with video images on this
camera recorder.
Select from the four options below to record the
audio.
0
Built-in Microphone
0
Microphone connected to
[AUX] terminal
0
Microphone connected to
[INPUT1] terminal
O
0
Microphone connected to [INPUT2] terminal
O
.
Selecting Audio to Be Recorded in Each
Channel O
Select the audio to be recorded in CH1/CH2.
- Switch Setting Connected Devices
CH1 INT
0
Built-in Microphone
0
Microphone connected to
[AUX] terminal
INPUT1 Microphone connected to
[INPUT1
]
terminal
CH2
INT
0
Built-in Microphone
0
Microphone connected to
[
AUX] terminal
INPUT1 Microphone connected to
[
INPUT1] terminal
INPUT2 Microphone connected to
[
INPUT2
] terminal
0
When CH1 or CH2 is set to
“INT” and a
microphone
is
connected to the [AUX] terminal,
audio is recorded according to the setting in [A/
V Set] B [Audio Set] B [CH1 INT]/[CH2 INT].
(A P118 [ CH1 INT ] )
(A
P118 [ CH2 INT ] )
Memo :
0
When the [
AUX] terminal is not connected, [A/V
Set] B [Audio Set] B [CH1 INT]/[CH2 INT] is
fixed at “Int. Mic L”/“Int. Mic R” respectively.
Setting Input Channel to [INPUT1]/[INPUT2]
Select the audio to input to [INPUT1] and [INPUT2
]
terminals using the [AUDIO INPUT INPUT1]/
[AUDIO INPUT INPUT2] signal selection switch.
Setting Description
[LINE] Use this setting when connecting to
an audio device
or other equipment.
The reference input level is +4 dBu.
[MIC] Use this setting when connecting to
a dynamic microphone.
[MIC+48V] Use this setting when connecting to
a microphone (phantom
microphone) that requires a +48 V
power supply.
Memo :
0
When “MIC” or “MIC+48V” is selected, set the
reference input level in [A/V Set] B [Audio Set]
B [Input1 Mic Ref.]/[Input2 Mic Ref.].
(
A P119
[Input1 Mic Ref./Input2 Mic Ref. O]
)
Caution :
0
When connecting a
device that does not require
a +48 V power supply, make sure that it is not
set to the “MIC+48V” position.
0
When the [AUDIO INPUT INPUT1]/[AUDIO
INPUT INPUT2] signal selection switch is set to
“MIC”, make sure that a microphone is
connected to the [INPUT1]/[INPUT2] terminal. If
you increase the recording level when a
microphone is not connected, noise from the
input terminal may be recorded.
0
When a microphone is not connected to the
[INPUT1]/[INPUT2] terminal, set the [AUDIO
INPUT INPUT1]/[AUDIO INPUT INPUT2] signal
selection switch to “LINE” or adjust the volume
with the [CH-1]/[CH-2] recording level
adjustment knob.
Audio Recording
69
Shooting
