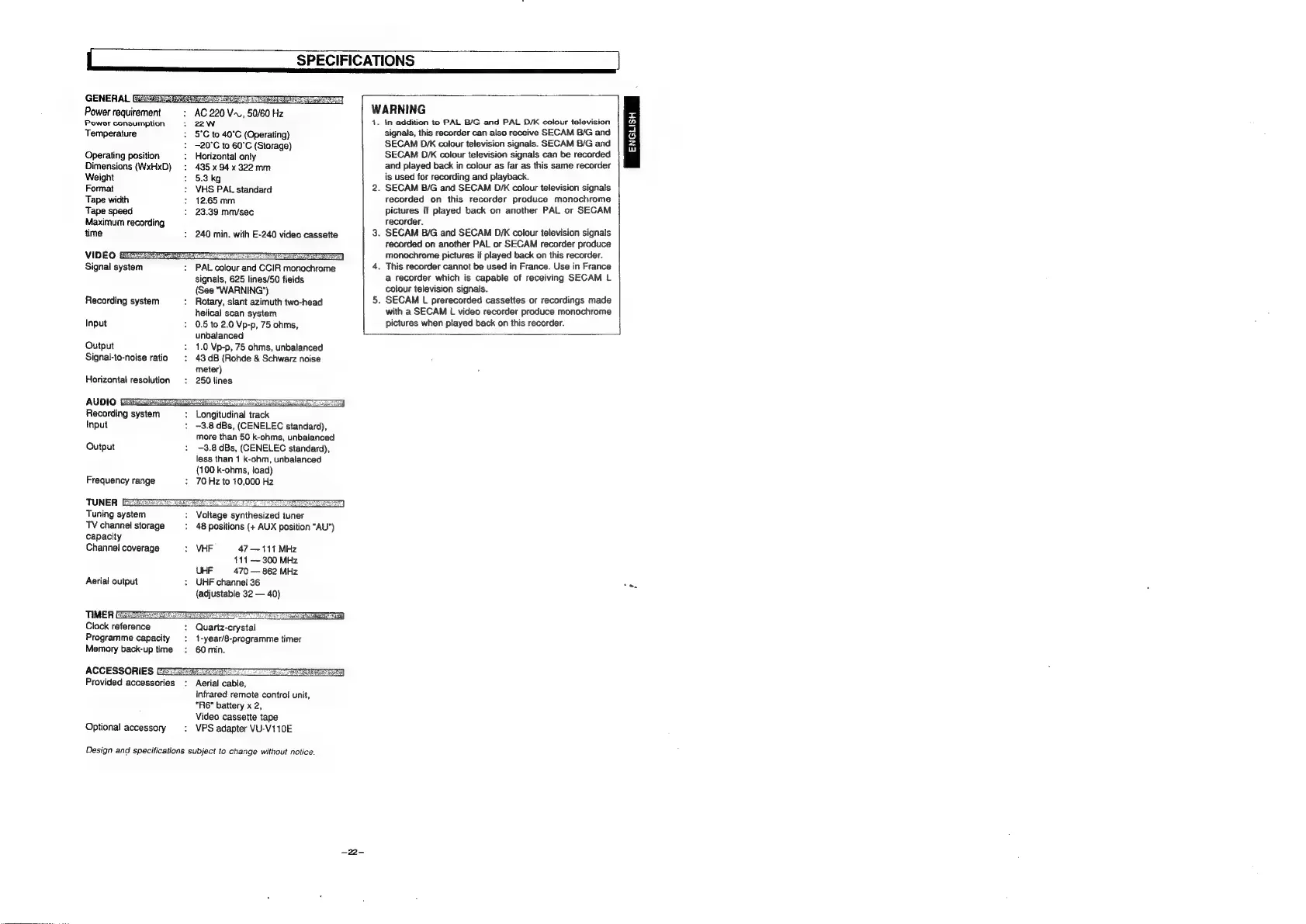

SPECIFICATIONS
|
GENERAL
Power requirement AC 220 V~,, 50/60 Hz
Power consumption 22W
Temperature 5°C to 40°C (Operating)
-20°C to 60°C (Storage)
Operating position Horizontal only
Dimensions (WxHxD) 435 x 94 x 322 mm
Weight 5.3 kg
Format VHS PAL standard
Tape width 12.65 mm
Tape speed 23.39 mm/sec
Maximum recording
time : 240 min. with E-240 video cassette
VIDEO SExIIss aN z is PAT APPR APR EA
PAL colour and CCIR monochrome
signals, 625 lines/50 fields
(See WARNING")
Rotary, slant azimuth two-head
helical scan system
Signal system
Recording system
Input 0.5 to 2.0 Vp-p, 75 ohms,
unbalanced
Output 1.0 Vp-p, 75 ohms, unbalanced
Signal-to-noise ratio 43 dB (Rohde & Schwarz noise
meter)
Horizontal resolution 250 lines
AUDIO && ; RENEE
Recording syste! Longitudinal track
Input ~3.8 dBs, (CENELEC standard),
more than 50 k-ohms, unbalanced
Output ~3.8 dBs, (CENELEC standard),
less than 1 k-ohm, unbalanced
{100 k-ohms, load)
Frequency range 70 Hz to 10,000 Hz
Voltage synthesized tuner
48 positions (+ AUX position "AU")
Tuning system
TV channel storage
capacity
Channel coverage > VHF 47 — 111 MHz
411 — 300 MHz
UHF 470 — 862 MHz
Aerial output UHF channel 36
(adjustable 32 — 40)
TIMER EEE
Clock reference
Programme capacity
Memory back-up time
Quartz-crystal
1-year/8-programme timer
60 min.
ACCESSORIES &
Provided accessories
Pee ee |
Aerial cable,
infrared remote control unit,
“R6" battery x 2,
Video cassette tape
Optional accessory VPS adapter VU-V110E
Design and specifications subject to change without notice.
WARNING
1.
in addition to PAL B/G and PAL D/K colour television
signals, this recorder can also receive SECAM B/G and
SECAM D/K colour television signals. SECAM 8/G and
SECAM DM colour television signals can be recorded
and played back in colour as far as this same recorder
is used for recording and playback.
. SECAM B/G and SECAM D/K colour television signals
recorded on this recorder produce monochrome
pictures if played back on another PAL or SECAM
recorder.
. SECAM B/G and SECAM D/K colour television signals
recorded on another PAL or SECAM recorder produce
monochrome pictures if played back on this recorder.
. This recorder cannot be used in France. Use in France
a recorder which is capable of receiving SECAM L
colour television signals.
. SECAM L prerecorded cassettes or recordings made
with a SECAM L video recorder produce monochrome
pictures when played back on this recorder.
