Do not connect tile AC power cord until all other connections
Getting Started h.vebee.made.

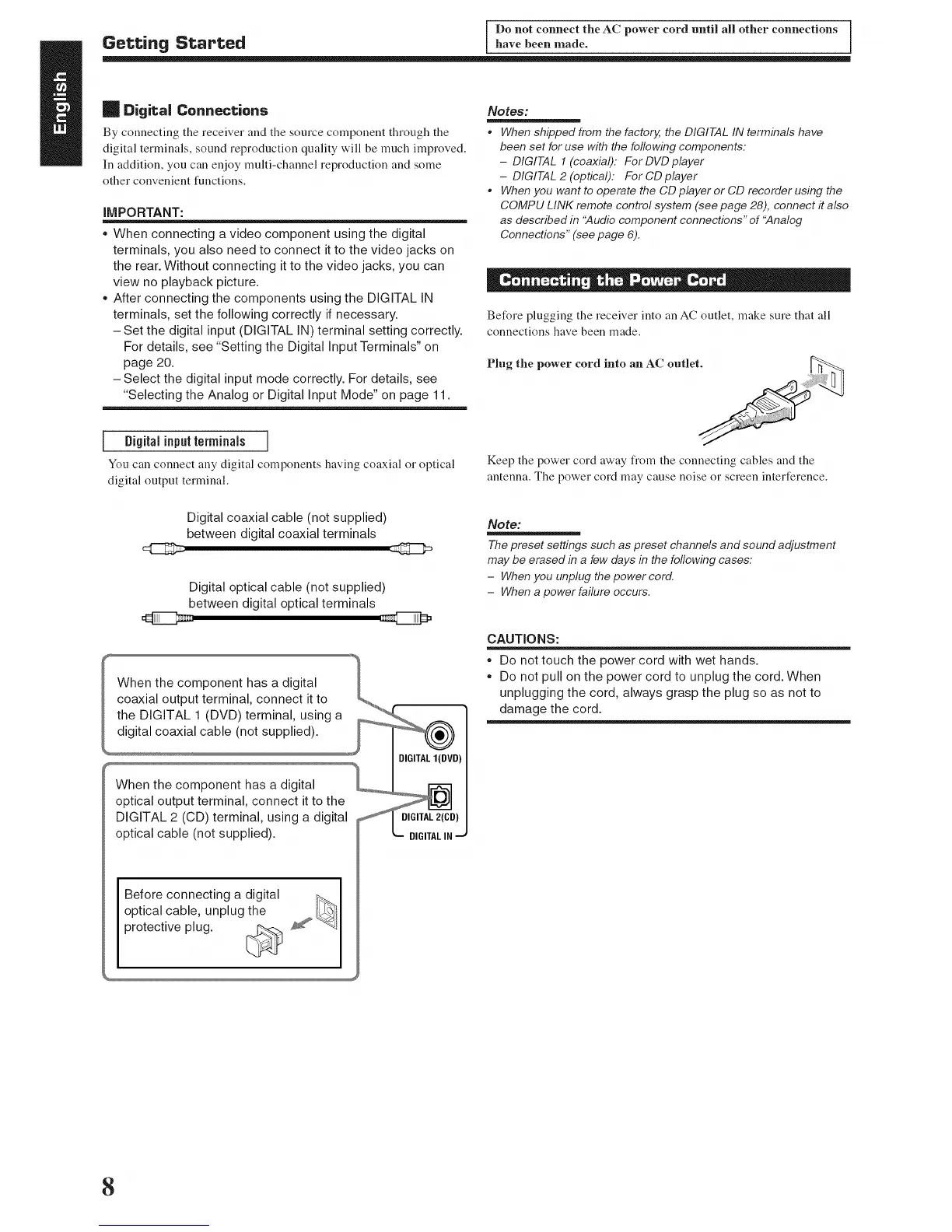

Digital Connections
By connecting the receiver and the source component through the
digital terminals, sound reproduction quality will be much improved.
In addition, you can enjoy multi-channel reproduction and some
other convenient functions.
iMPORTANT:
• When connecting a video component using the digital
terminals, you also need to connect it to the video jacks on
the rear. Without connecting it to the video jacks, you can
view no playback picture.
• After connecting the components using the DIGITAL IN
terminals, set the following correctly if necessary.
- Set the digital input (DIGITAL IN) terminal setting correctly.
For details, see "Setting the Digital Input Terminals" on
page 20.
- Select the digital input mode correctly. For details, see
"Selecting the Analog or Digital Input Mode" on page 11.
Notes:
• Whenshipped from the factory,the DIGITALIN terminals have
been set for use with the following components:
- DIGITAL 1(coaxial): For DVDplayer
- DIGITAL2 (optical): For CDplayer
• Whenyou want to operate the CDplayer or CD recorder using the
COMPU LINK remote control system (see page 28), connect it also
as described in "Audio component connections" of "Analog
Connections" (see page 6).
Betbre plugging the receiver into an AC outlet, make sure that all
connections have been made.
Plug the power cord into an AC outlet.
J Digital inputterminals J
You can connect any digital components having coaxial or optical
digital output terminal.
Keep the power cord away from the connecting cables and the
antenna. The power cord may cause noise or screen interference.
Digital coaxial cable (not supplied)
between digital coaxial terminals
Digital optical cable (not supplied)
between digital optical terminals
_When the component has a digital "l
coaxial output terminal, connect it to ....................
the DIGITAL 1 (DVD) terminal, using a
digital coaxial cable (not supplied). ,,,__D )
p 'g'
_ r_-q
optical output terminal, connect it to the
DIGITAL 2 (CD) terminal, using a digital _1 DmgAL2(CD)
optical cable (not supplied). L.. DIGITALIN--
Note:
Thepreset settings such as preset channels and sound adjustment
may be erased in a few claysin the following cases:
- Whenyou unplug the power cord.
- Whena power failure occurs.
CAUTIONS:
• Do not touch the power cord with wet hands.
• Do not pull on the power cord to unplug the cord. When
unplugging the cord, always grasp the plug so as not to
damage the cord.
Before connecting a digital
optical cable, unplug the
protective plug.
8
