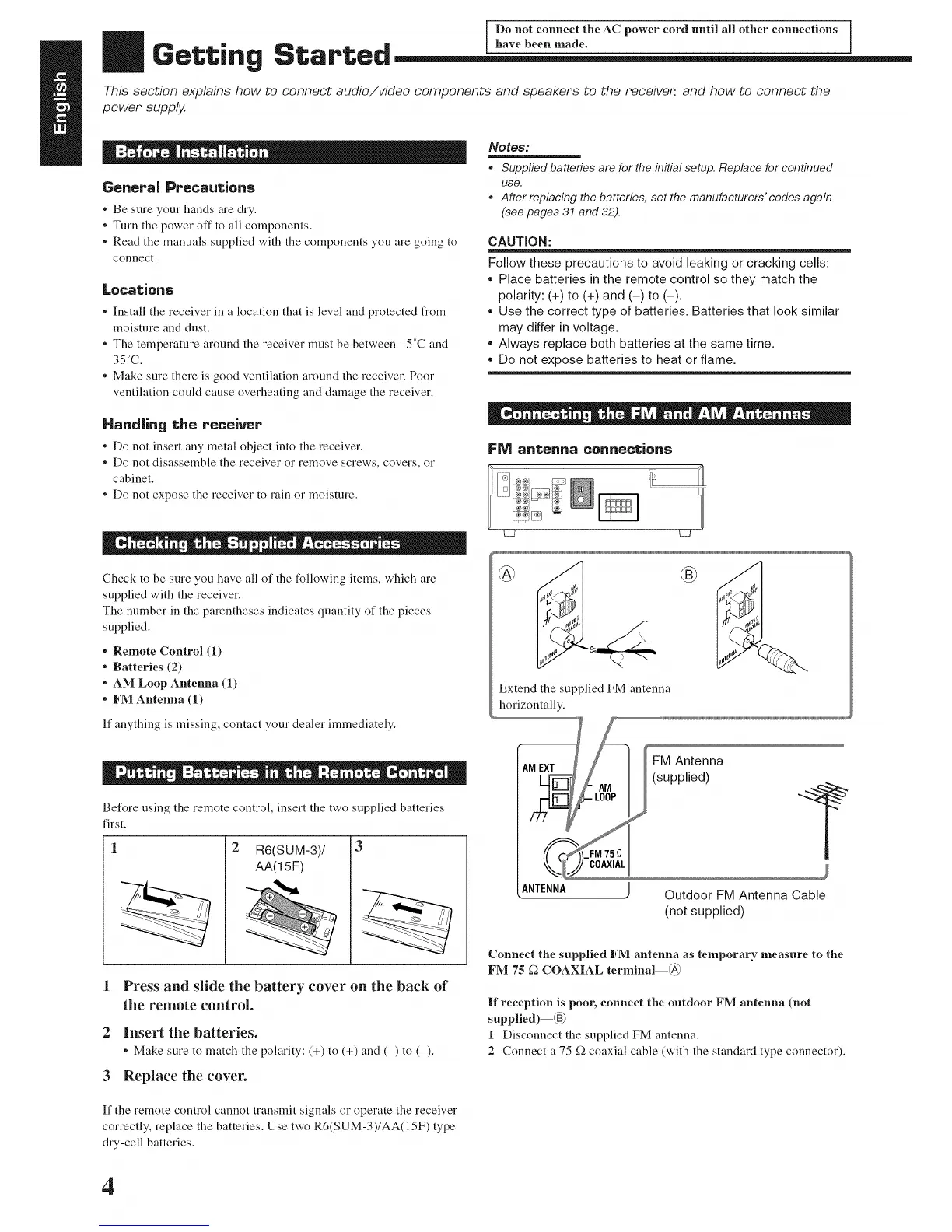

Do not connect the AC power cord until all other connections
Getting Started havebeenmade.
This section explains how to connect audio/video components and speakers to the receivec and how to connect the
power supply.
General Precautions
• Be sure your hands are dry.
• Turn the power off to all components.
• Read the manuals supplied with the components you are going to
connect.
Locations
• Install the receiver in a location that is level and protected fi'om
moisture and dust.
• The temperature around the receiver must be between -5°C and
35°C.
• Make sure there is good ventilation around the receiver. Poor
ventilation could cause overheating and damage the receiver.
Handling the receiver
• Do not insert any metal object into the receiver.
• Do not disassemble the receiver or remove screws, covers, or
cabinet.
• Do not expose the receiver to rain or moisture.
Check to be sure you have all of the tk)llowing items, which are
supplied with the receiver.
The number in the parentheses indicates quantity of the pieces
supplied.
. Remote Control (1)
. Batteries (2)
. AM Loop Antenna (1)
. FM Antenna (1)
If anything is missing, contact your dealer immediately.
Notes:
• Supplied batteries are for the initial setup. Replace for continued
use.
After replacing the batteries, set the manufacturers' codes again
(see pages 31 and 32).
CAUTION:
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the
polarity: (+) to (+) and (-) to (-).
• Use the correct type of batteries. Batteries that look similar
may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
FMantenna connections
LJ
LJ
®
Extend the supplied FM antenna
horizontally.
Before using the remote control, insert the two supplied batteries
first.
1 3
2 R6(SUM-3)/
AA(15F)
Press and slide the battery cover on the back of
the remote control.
Insert the batteries.
• Make sure to match the polarity: (+) to (+) and (-) to (-).
3 Replace the cover.
If the remote control cannot transmit signals or operate the receiver
correctly, replace the batteries. Use two R6(SUM-3)/AA(15F) type
dry-cell batteries.
ANTENNA
Outdoor FM Antenna Cable
(not supplied)
Connect the supplied FM antenna as temporary measure to the
FM 75 (2 COAXIAL terminal--@
If reception is poor, connect the outdoor FM antenna (not
supplied)--@
1 Disconnect the supplied FM antenna.
2 Connect a 75 _-2coaxial cable (with the standard type connector).
4
To Next Page
