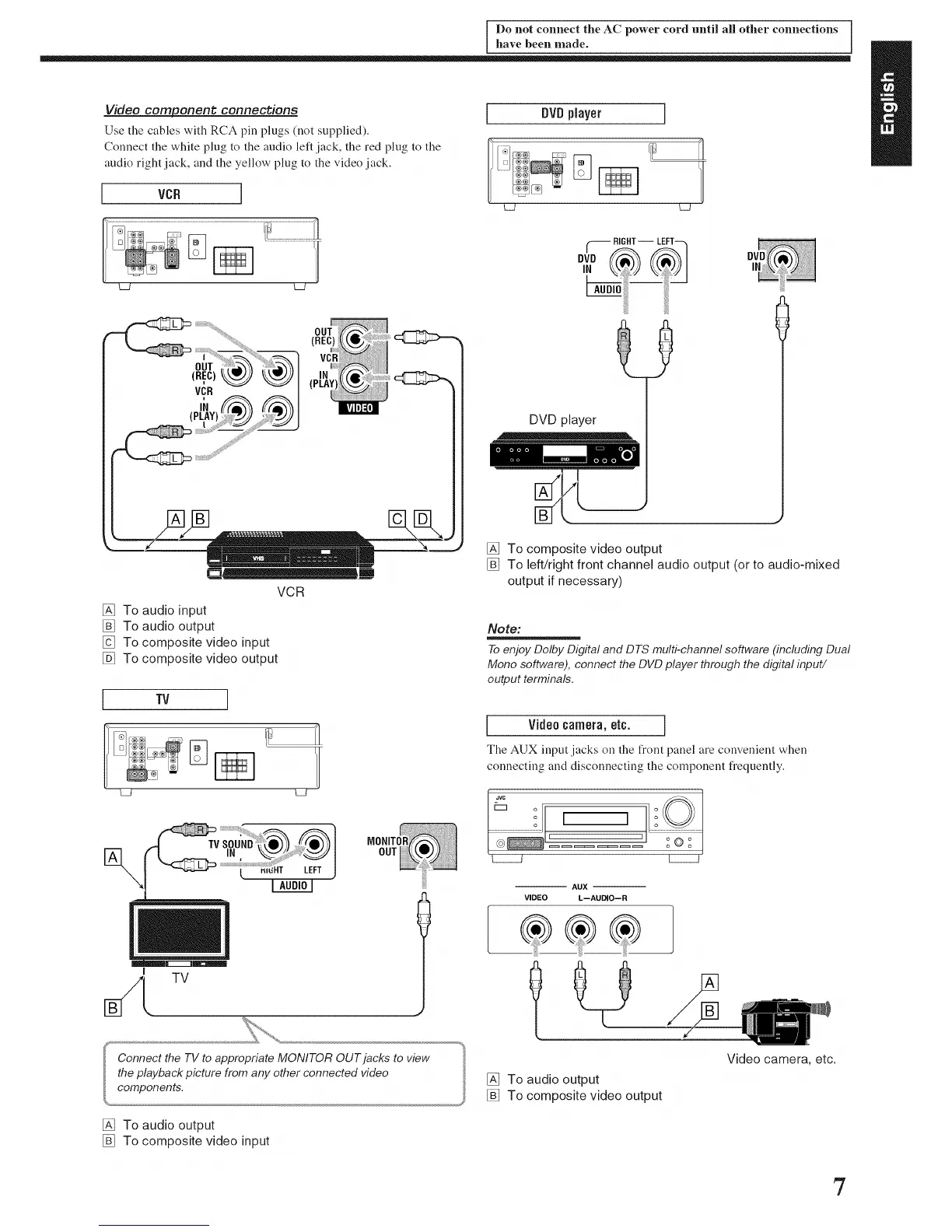

Video component connections
Use the cables with RCA pin plugs (not supplied),
Connect the white plug to the audio left .jack, the red plug to the
audio right jack, and the yellow plug to the video jack,
Do not connect tile AC power cord until all other connections
have been made.
VCR
II DVDplayer
LJ _
7-
DVD
IN
VCR
[] To audio input
[] To audio output
[] To composite video input
[] To composite video output
[ Tv ]
l__ [_ _l® ®® .::_ _
LJ LJ
IN _ l OUT
LEFT J
v
DVD player
[] To composite video output
[] To left/right front channel audio output (or to audio-mixed
output if necessary)
Note:
To enjoy Dolby Digital and DTS multi-channel software (including Dual
Mono software), connect the DVD player through the digital input/
output terminals.
I Video camera, elc. I
The AUX input jacks on the front panel are convenient when
connecting and disconnecting the component fl'equently.
i r
L_____J L_____J
-- AUX
VIDEO L--AUDIO--R
Connect the TV to appropriate MONITOR OUT jacks to view
the playback picture from any other connected video
components.
[] To audio output
[] To composite video input
[] To audio output
[] To composite video output
Video camera, etc.
7
