Do not connect tile AC power cord until all other connections
Getting Started havebeenmade.

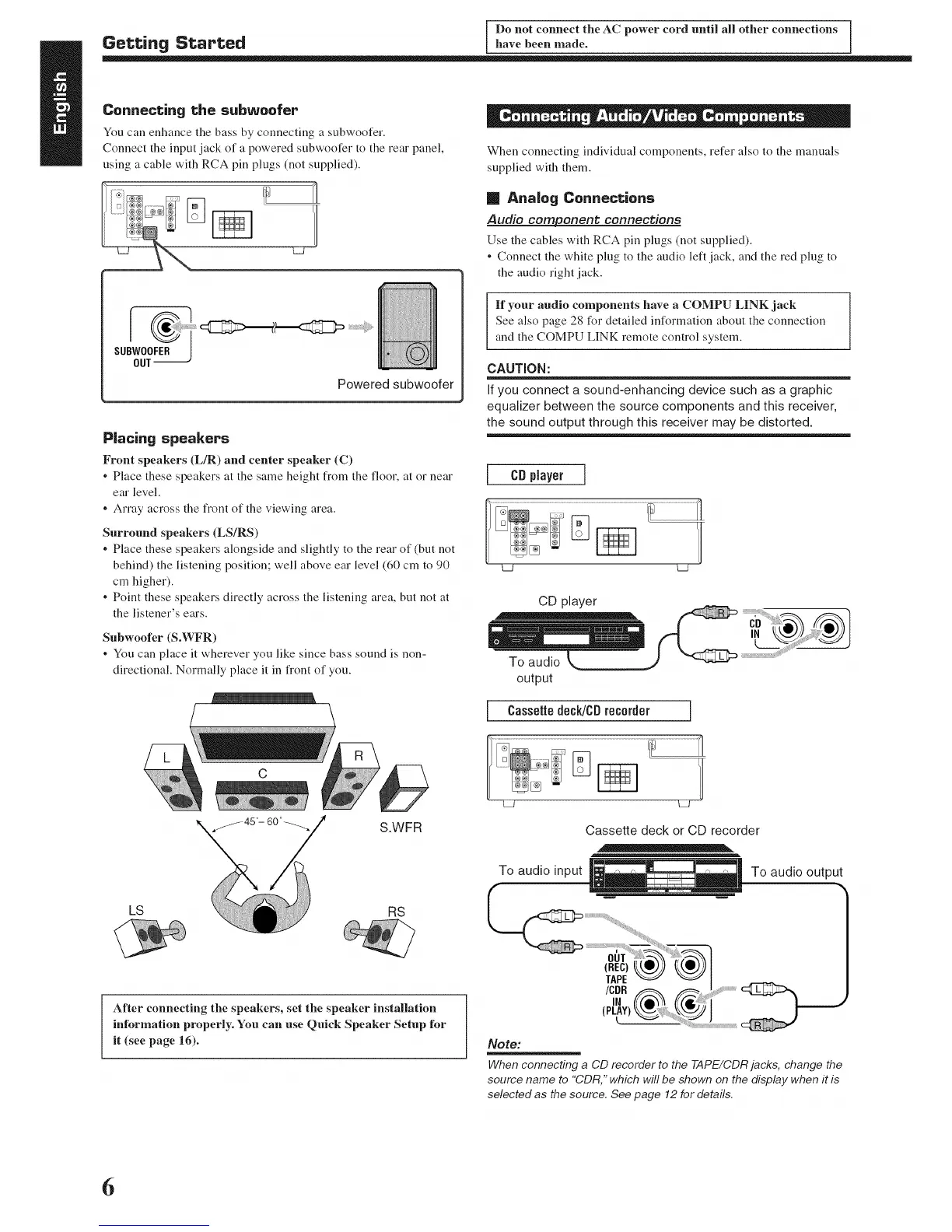

Connecting the subwoofer
You can enhance the bass by connecting a subwoofer.
Connect the input jack of a powered subwooter to the rear panel,
using a cable with RCA pin plugs (not supplied).
Powered subwoofer
Placing speakers
Front speakers (L/R) and center speaker (C)
• Place these speakers at the same height from the floor, at or near
ear level.
• Array across the front of the viewing area.
Surround speakers (LS/RS)
• Place these speakers alongside and slightly to the rear of (but not
behind) the listening position; well above ear level (60 cm to 90
cm higher).
• Point these speakers directly across the listening area, but not at
the listener's ears.
Subwoofer (S.WFR)
• You can place it wherever you like since bass sound is non-
directional. Normally place it in fl'ont of you.
C
S.WFR
LS
RS
When connecting individual components, refer also to the manuals
supplied with them.
m AnMog Connections
Audio component connections
Use the cables with RCA pin plugs (not supplied).
• Connect the white plug to the audio left jack, and the red plug to
the audio right jack.
If your audio components have a COMPU LINK jack
See also page 28 for detailed inforlnation about the connection
and the COMPU LINK remote control system.
CAUTION:
If you connect a sound-enhancing device such as a graphic
equalizer between the source components and this receiver,
the sound output through this receiver may be distorted.
I COplayer I
L_ L_
CD player
output
I Cassettedeck/COrecorder [
L3
To audio input
Cassette deck or CD recorder
To audio output
After connecting the speakers, set the speaker installation
information properly. You can use Quick Speaker Setup for
it (see page 16).
Note:
When connecting a CD recorder to the TAPE/CDR jacks, change the
source name to "CDR," which will be shown on the display when it is
selected as the source. See page 12 for details.
6
