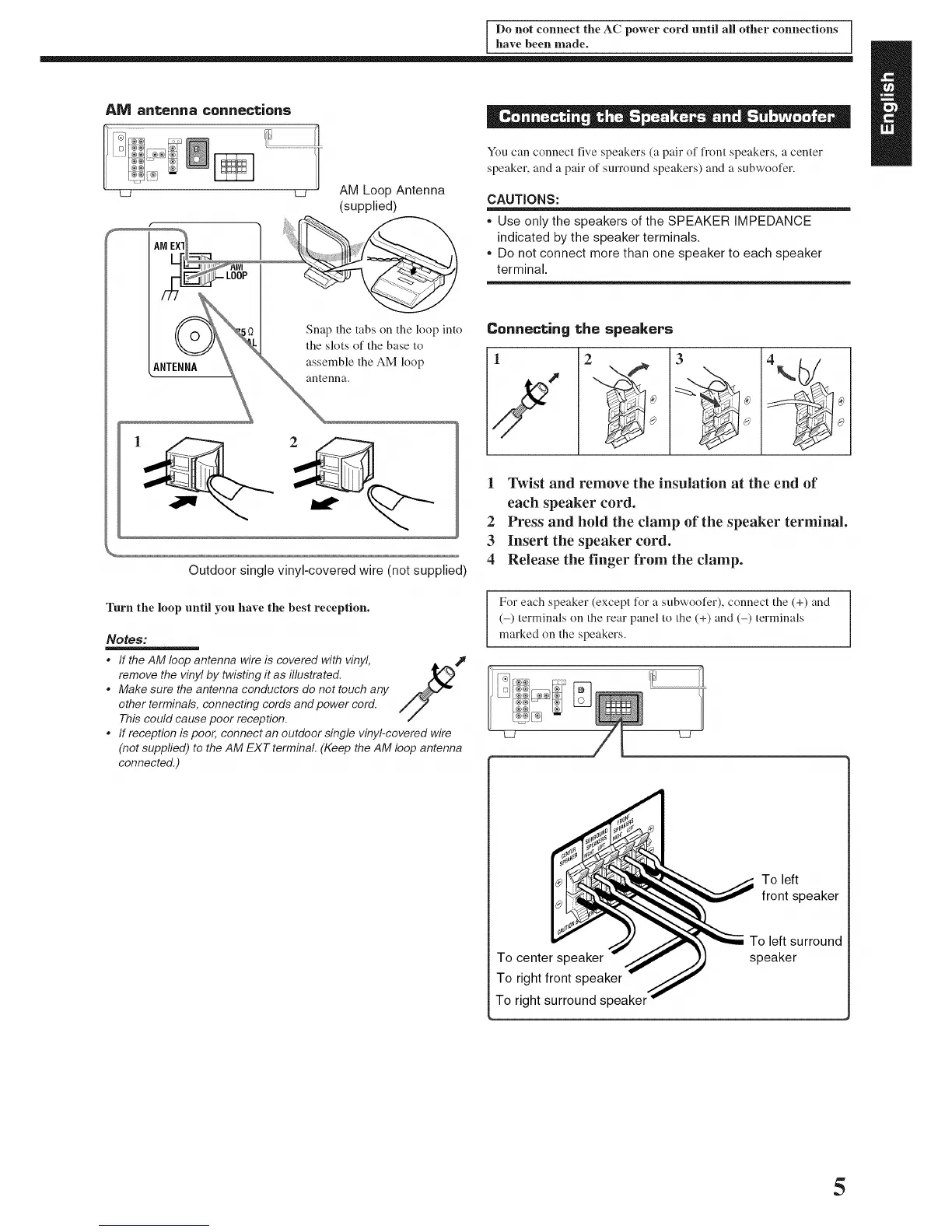

Do not connect the AC power cord until all other connections
have been made.
B
AM angeMna cannecgions N
M
- •...........................................l....
LI k_!
You can connect five speakers (a pair of front speakers, a center
speaker, and a pair of surround speakers) and a subwoofer.
AM Loop Antenna
(supplied) CAUTIONS:
2
Snap the tabs on the loop into
the slots of the base to
assemble the AM loop
antenna.
Outdoor single vinyl-covered wire (not supplied)
• Use only the speakers of the SPEAKER IMPEDANCE
indicated by the speaker terminals.
• Do not connect more than one speaker to each speaker
terminal.
1 Twist and remove the insulation at the end of
each speaker cord.
2 Press and hold the clamp of the speaker terminal.
3 Insert the speaker cord.
4 Release the finger from the clamp.
Turn the loop until you have the best reception.
Notes:
* If the AM loop antenna wire is covered with vinyl, =A J
remove the vinyl by twisting it as illustrated. ,_
* Make sure the antenna conductors do not touch any
other terminals, connecting cords and power cord.
This could cause poor reception.
* If reception is poor, connect an outdoor single vinyl-covered wire
(not supplied) to the AM EXT terminal. (Keep the AM loop antenna
connected.)
For each speaker (except for a subwoofer), connect the (+) and
(-) terminals on the lear panel to the (+) and (-) terminals
marked on the speakers.
--I
LA
To left
front speaker
To center speaker
To right front speaker
To right surround
To left surround
speaker
5
