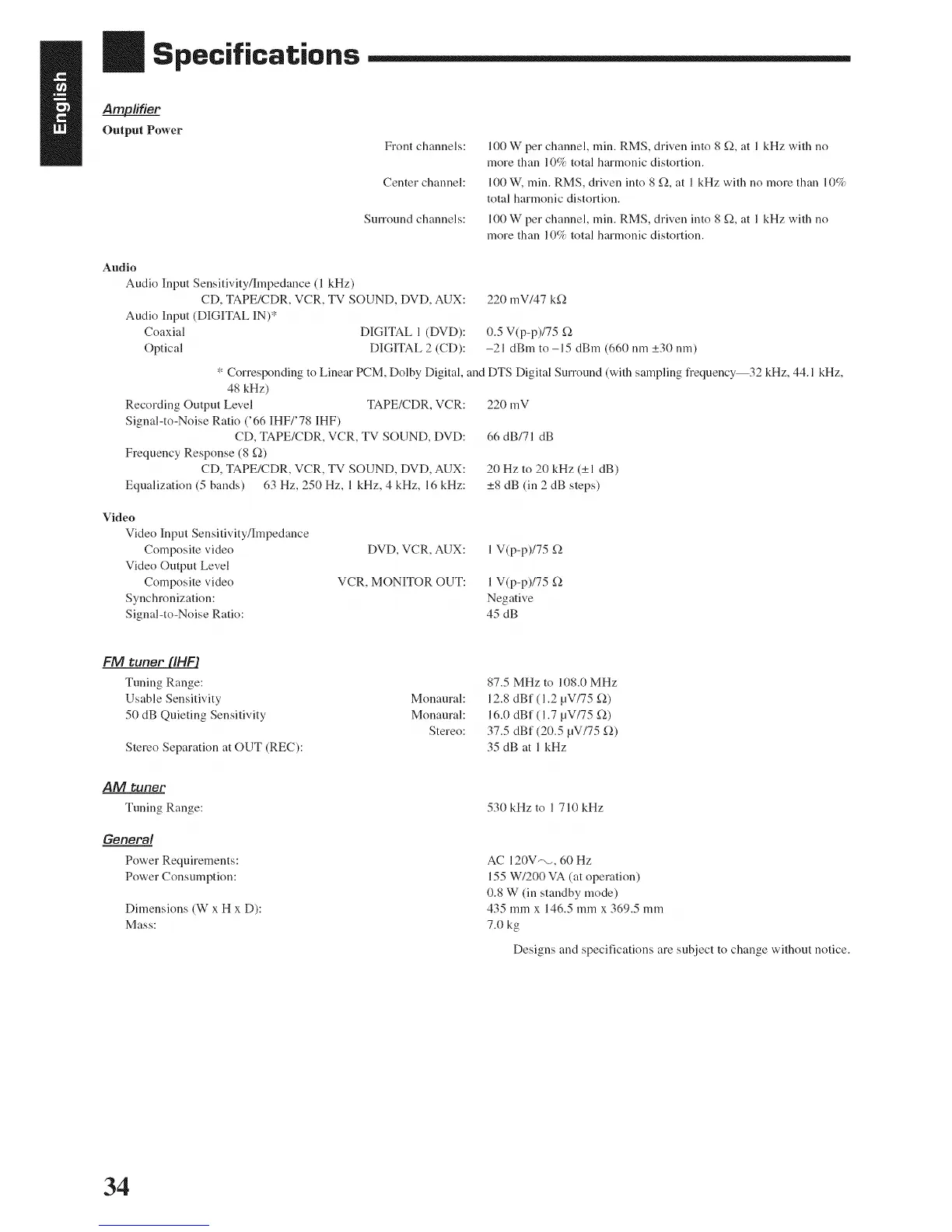

Specifications
Amplifier
Output Power
Front channels:
Center channel:
Surround channels:
100 W per channel, min. RMS, driven into 8 (L at 1kHz with no
more than 10% total harmonic distortion.
100 W, min. RMS, driven into 8 (L at 1 kHz with no more than 10%
total harmonic distortion.
100 W per channel, min. RMS, driven into 8 (L at 1kHz with no
more than 10% total harmonic distortion.
Audio
Audio Input Sensitivity/hnpedance (l kHz)
CD, TAPE/CDR, VCR, TV SOUND, DVD, AUX:
Audio Input (DIGITAL IN)*
Coaxial DIGITAL I (DVD):
Optical DIGITAL 2 (CD):
220 mV/47 k(2
0.5 V(p-p)/75 (2
-21 dBm to -15 dBm (660 nm _+30 nm)
* Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround (with sampling frequency--32 kHz, 44.1 kHz,
48 kHz)
Recording Output Level TAPE/CDR, VCR: 220 mV
Signal-to-Noise Ratio ('66 IHF/'78 IHF)
CD, TAPE/CDR, VCR, TV SOUND, DVD: 66 dB/71 dB
Frequency Response (8 (2)
CD, TAPE/CDR, VCR, TV SOUND, DVD, AUX: 20 Hz to 20 kHz (_+l dB)
Equalization (5 bands) 63 Hz, 250 Hz, 1 kHz, 4 kHz, 16 kHz: _+8dB (in 2 dB steps)
Video
Video Input Sensitivity/hnpedance
Composite video
Video Output Level
Composite video
Synchronization:
Signal-to-Noise Ratio:
DVD, VCR, AUX:
VCR, MONITOR OUT:
1V(p-p)/75 (2
1V(p-p)/75 (2
Negative
45 dB
Tuning Range:
Usable Sensitivity
50 dB Quieting Sensitivity
Stereo Separaion at OUT (REC):
Monaural:
Monaural:
Stereo:
87.5 MHz to 108.0 MHz
12.8 dBf ( 1.2 pV/75 g2)
16.0 dBf (1.7 pV/75 (2)
37.5 dBf (20.5 pV/75 (2)
35dBat lkHz
AM tuner
Tuning Range:
General
Power Requirements:
Power Consumption:
Dimensions (W x H x D):
Mass:
530 kHz to 1 710kHz
AC 120V_,.,, 60 Hz
155 W/200 VA (at operation)
0.8 W (in standby mode)
435 mm x 146.5 mm x 369.5 mm
7.0 kg
Designs and specifications are subject to change without notice.
34
