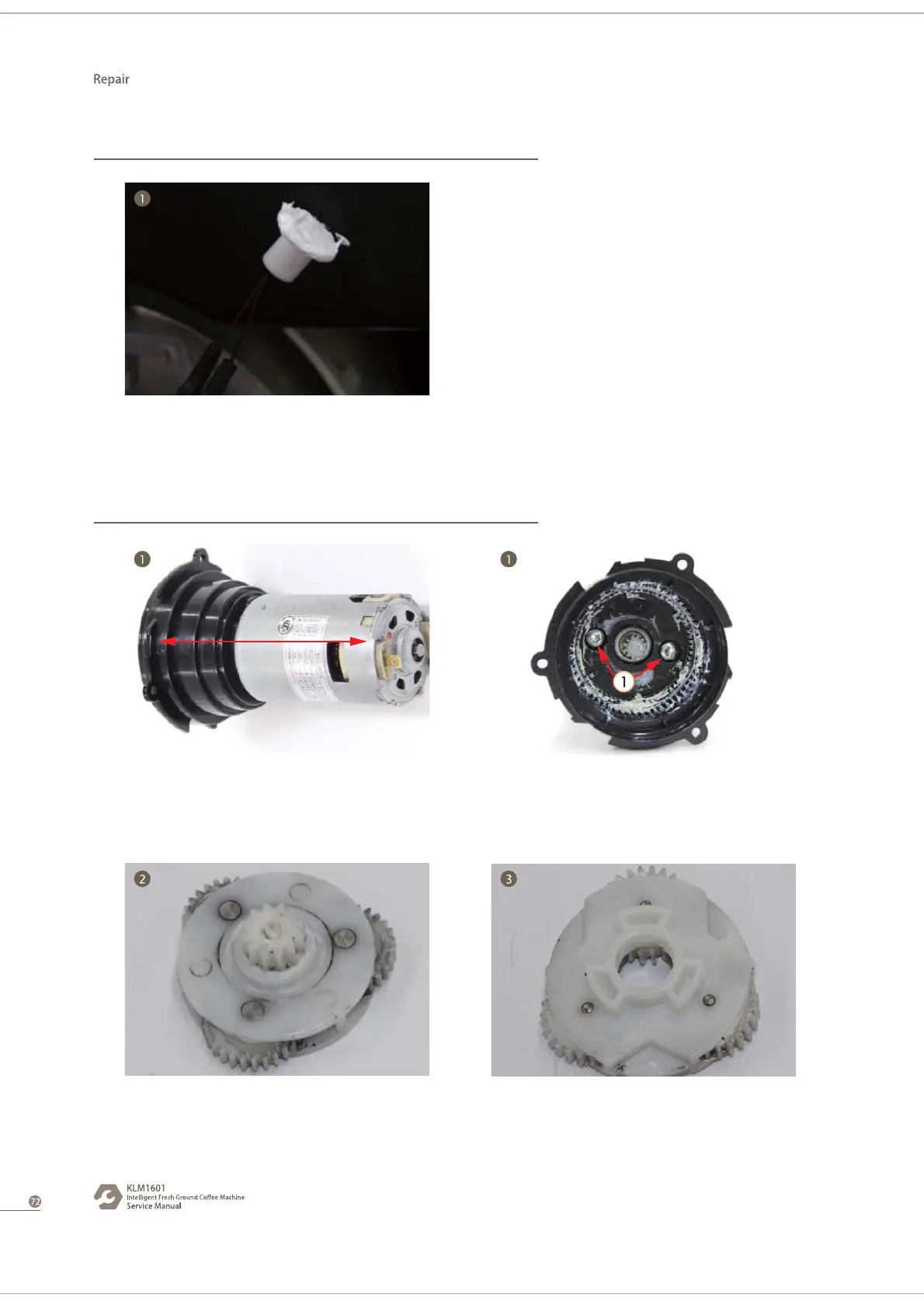

1. When install the NTC on the thermoblock,
cover NTC with silicone grease and fasten it.
1. Assemble the grinder motor and gearbox together, and screw them tightly. The screw should be
covered with loctite. The teeth of the gearbox should be coated with oil(MI-setral-61B). The red mark
place should correspond to one hole of the gearbox.
2. Install 3 epicyclic gear A and 3 epicyclic
gear pin A into epicyclic gear support A,
and coat with oil(MI-setral-61B).
3. Install 3 epicyclic gear B and 3 epicyclic
gear pin A into epicyclic gear support B, and
coat with oil(MI-setral-61B).
Thermoblock
Grinder group
